TRACK SUSPENSION 2

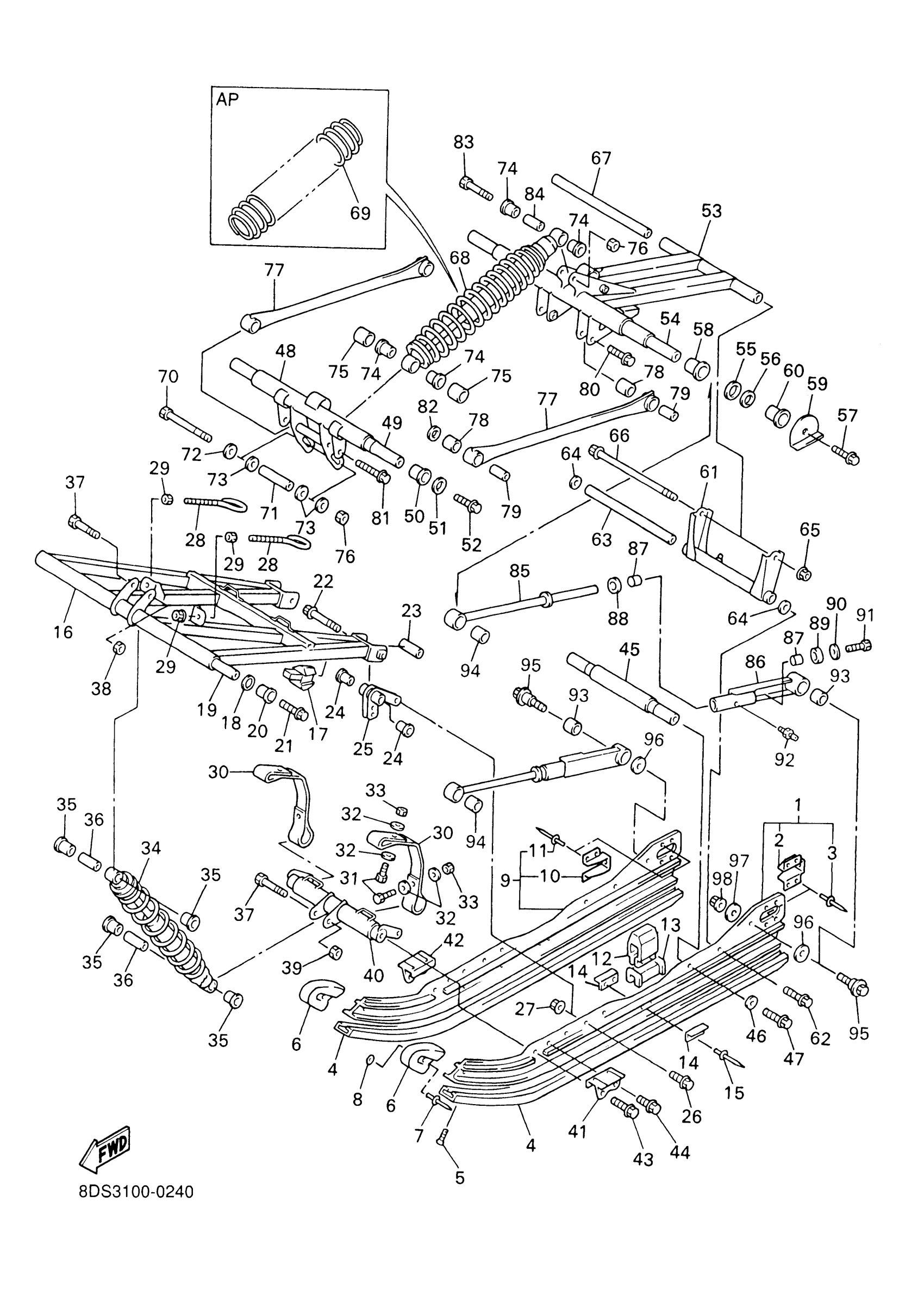

2001 Yamaha VX700F 8DS4 Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME, SLIDING 1
8EA-47411-00-00
2
BRACKET
8V0-4741B-00-00
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
9
FRAME, SLIDING 2
8EA-47412-00-00
10
BRACKET
8V0-4741B-00-00
17
DAMPER 1
8DF-47456-10-00
25
BRACKET 1
8CR-47415-00-00
34
SHOCK ABSORBER 2
8CR-47481-00-00
38
NUT, SELF LOCKING (23X)
90185-10120-00
39
NUT, U
95617-10100-00
40
BRACKET 4
8EA-47418-00-00
41
BRACKET 5
8DF-47463-01-00
42
BRACKET 6
8DF-47464-01-00
45
SHAFT 4
8CR-47486-00-00
48
BRACKET 2
8CR-47416-10-00
49
SHAFT 6
8CR-47488-00-00
59
BRACKET, REAR 1
8CR-47426-11-00
60
BRACKET, REAR 2
8CR-47425-00-00
61
BRACKET 3
8CR-47417-01-00
63
SHAFT 3
82M-47485-02-00
66
BOLT, FLANGE
95827-08220-00
68
SHOCK ABSORBER
8DS-47480-00-00
69
SPRING 1 (K=34-52N/MM)
8CR-47489-10-00
72
WASHER, PLATE
90201-10039-00
73
WASHER, PLATE(8BT)
90201-100U1-00
76
NUT, U
95617-10100-00
77
ROD, RELAY
8CR-47494-01-00
82
WASHER, PLATE(8BT)
90201-100U1-00
86
ROD, CONTROL 2
8CR-4745B-00-00
