2001 Yamaha VX700F 8DS4 Alternate Clutch Repair KIT Diagram

← All diagrams

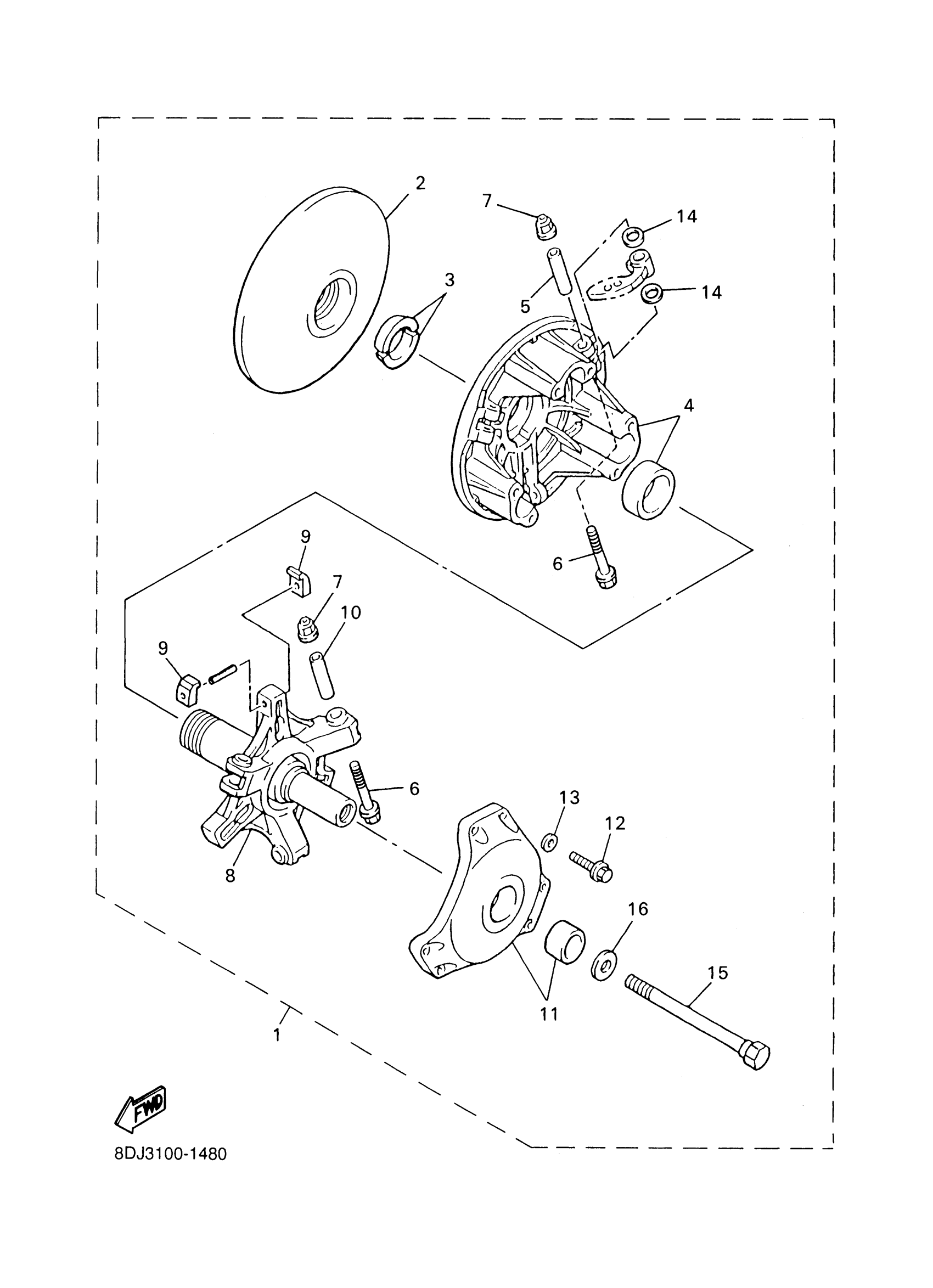

Find the part on the Alternate Clutch Repair KIT diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Alternate Clutch Repair KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH REPAIR KIT

8DS-W176G-00-00

1
Out of stock

2

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

1

$210.78

In stock

3

STOPPER

8V0-17639-00-00

1

$10.52

In stock

4

1

$430.68

In stock

5

COLLAR

90387-0514T-00

1

$14.86

In stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

7

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

8

SPIDER COMP.

8CA-17640-12-00

1
Out of stock

9

SLIDER

8BW-17653-00-00

1

$13.86

In stock

10

COLLAR

90387-0514U-00

1

$15.86

In stock

11

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

1

$176.14

In stock

12

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

13

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

14

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

15

BOLT (L=156.5MM)

8V0-17647-10-00

1

$21.45

In stock

16

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
