ALTERNATE REVERSE GEAR KIT

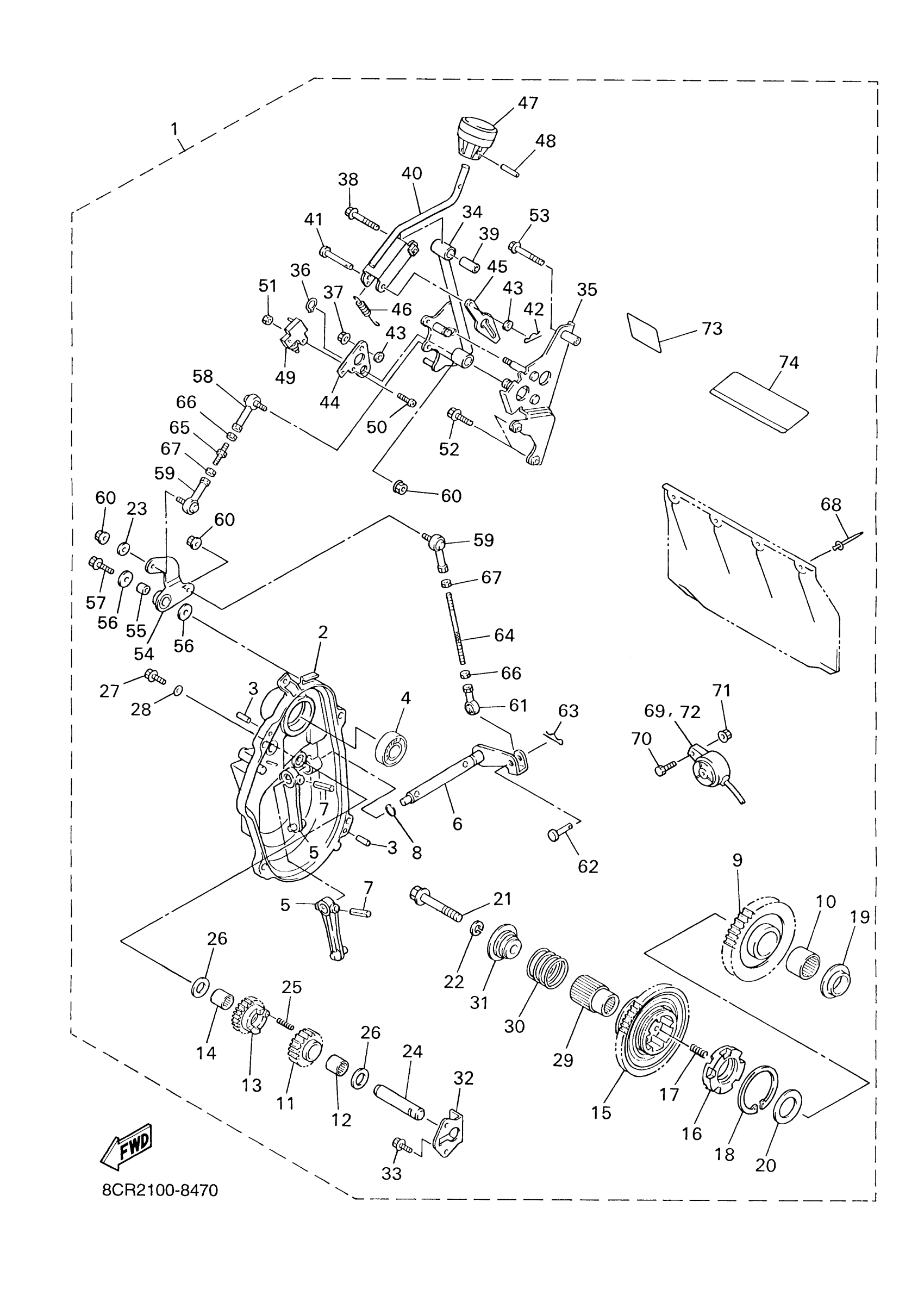

2001 Yamaha VX700F 8DS4 Alternate Reverse Gear KIT Diagram
Find the part on the Alternate Reverse Gear KIT diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
REVERSE GEAR KIT
8CR-47590-01-00
2
. CAP, HOUSING
8CW-47543-02-00
6
. SHAFT
8CW-18197-00-00
8
O-RING (328)
93210-12131-00
9
. SPROCKET, CHAIN DRIVEN (39T)
8CW-47587-90-00
11
SPROCKET, DRIVE
8DM-17692-00-00
30
. SPRING, COMPRESSION
90501-326J6-00
34
. ARM, SHIFT
8CW-18112-01-00
39
. COLLAR
90387-06605-00
41
PIN, CLEVIS (2F9)
91701-06035-00
45
. GUIDE, SHIFT RETURN SPRING
8CW-18153-00-00
48
PIN,SPRING (648)
91690-40022-00
50
. SCREW, BIND
98907-04016-00
54
LEVER
8CW-18198-00-00
61
JOINT 1
8CW-18156-00-00
64
JOINT, ROD 1
88T-18116-01-00
65
ROD, SHIFT
26H-18115-00-00
69
. BUZZER
8CR-83383-00-00
73
LABEL, WARNING 3
8DY-77763-00-00
74
. LABEL, WARNING
8DY-77761-00-00
