2001 Yamaha VX700F 8DS4 Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

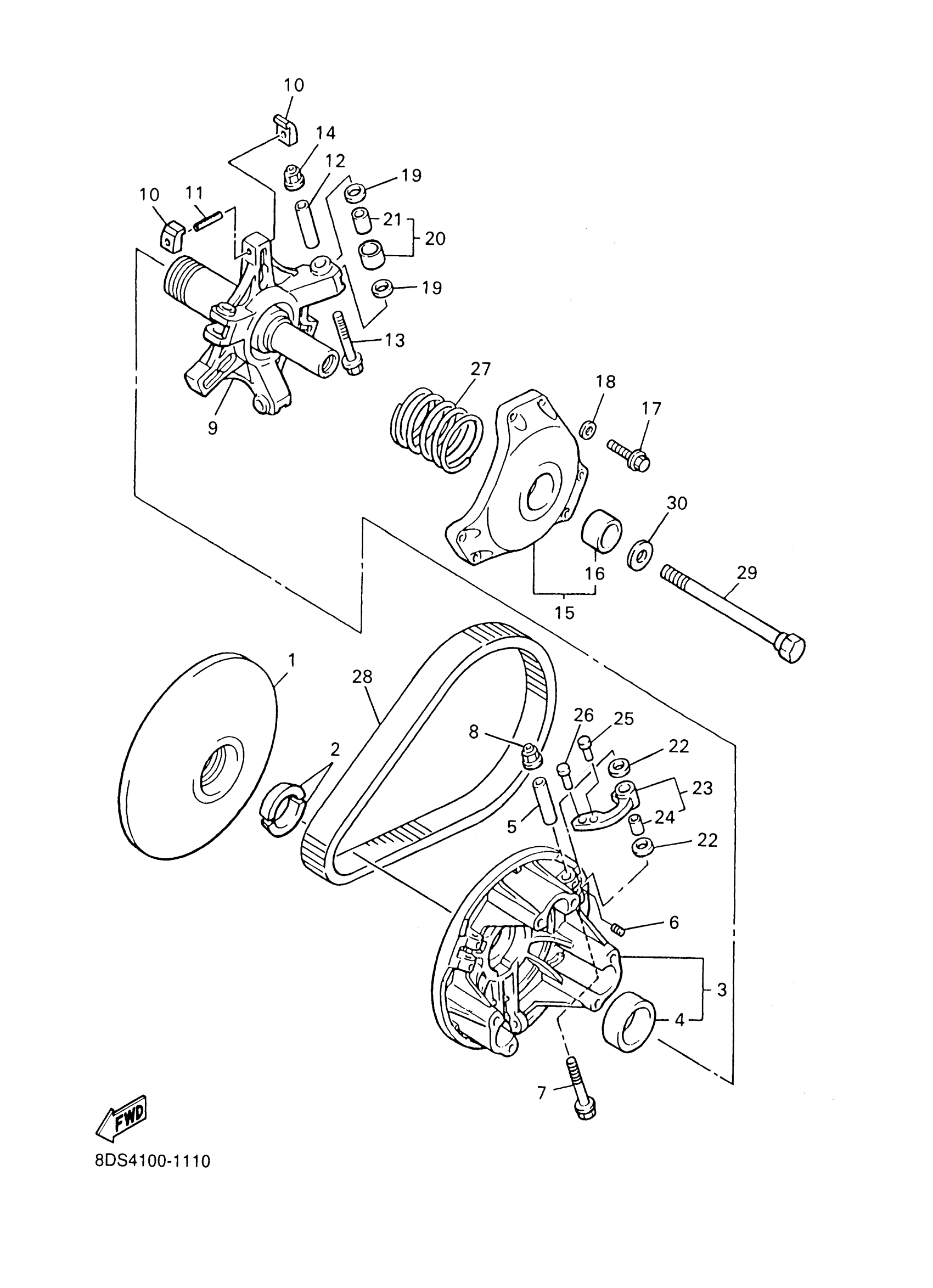

2001 Yamaha VX700F 8DS4 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

1

$210.78

In stock

2

STOPPER

8V0-17639-00-00

1

$10.52

In stock

3

1

$430.68

In stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

5

COLLAR

90387-0514T-00

1

$14.86

In stock

6

BOLT, SET

90113-05041-00

1
Out of stock

7

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

8

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

9

SPIDER COMP.

8CA-17640-12-00

1
Out of stock

10

SLIDER

8BW-17653-00-00

1

$13.86

In stock

11

PIN, SPRING (7F7)

91609-50032-00

1

$3.66

In stock

12

COLLAR

90387-0514U-00

1

$15.86

In stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

14

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

15

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

1

$176.14

In stock

16

BUSH, SOLID(8CP)

90380-28237-00

—

$31.34

In stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

19

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

20

ROLLER, COMP

8CR-17624-00-00

—

$58.06

In stock

21

. BUSH, SOLID

90380-09245-00

1

$31.67

In stock

22

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

23

WEIGHT COMP

8CH-17605-10-00

—

$75.52

In stock

24

. BUSH, SOLID

90380-08244-00

1
Out of stock

25

—

$5.62

In stock

26

—

$7.55

In stock

27

SPRING, COMPRESSION

90501-583L4-00

—

$50.22

In stock

28

V-BELT

8DN-17641-01-00

1

$85.29

In stock

29

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

30

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
