2001 Yamaha VX700F 8DS4 Brake Diagram

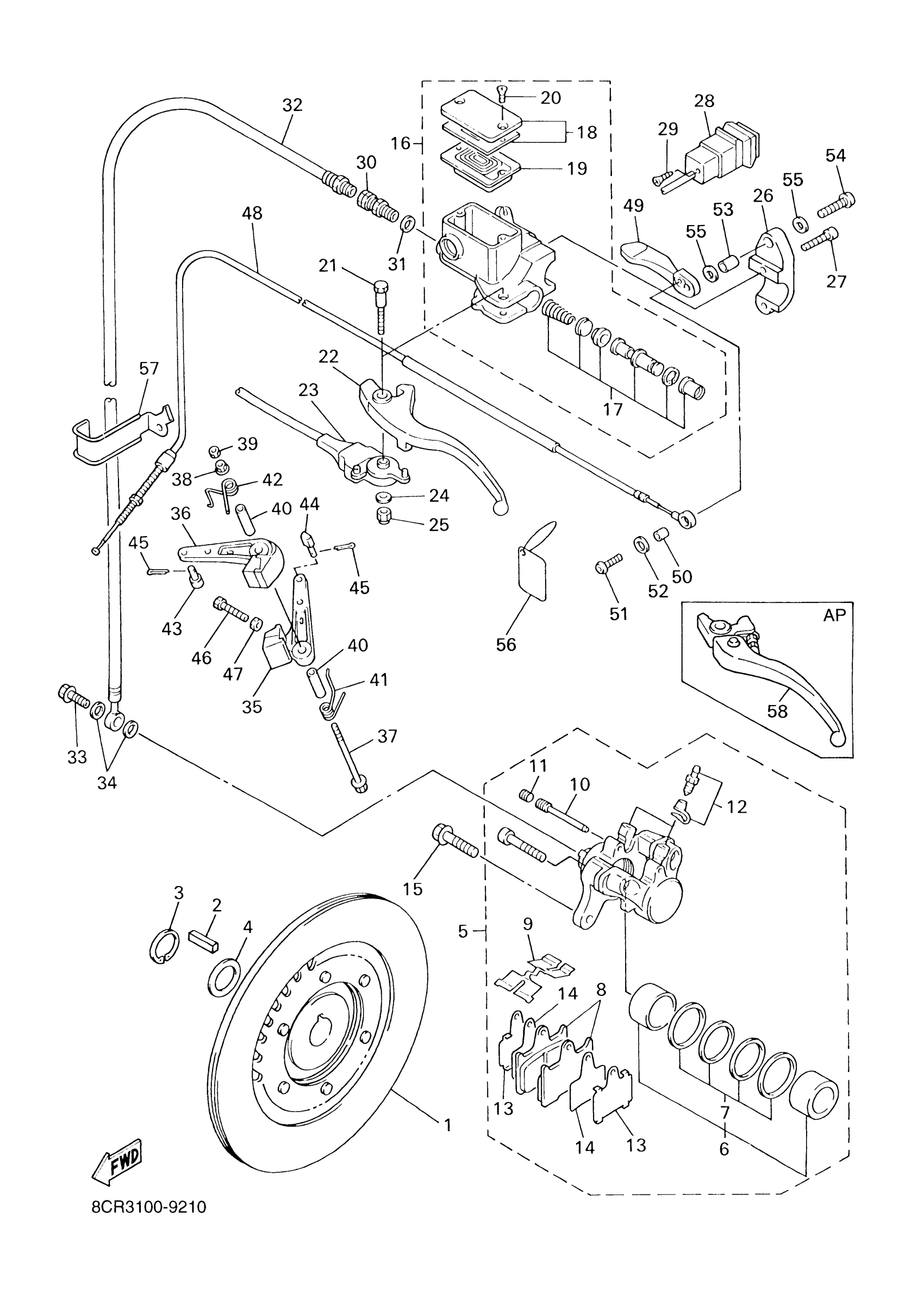

Find the part on the Brake diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
DISK BRAKE ASSY
8DN-2581T-00-00
4
WASHER, PLATE
90201-270U5-00
5
CALIPER ASSY (LEFT)
8DF-2580T-02-00
9
SUPPORT, PAD
8CR-25919-00-00
11
BOLT
8CR-25926-00-00
12
BLEED SCREW KIT
8CR-W0048-00-00
13
. RETAINER
8DF-2582F-00-00
14
. SHIM, CALIPER
8DF-25828-00-00
16
MASTER CYLINDER SUB ASSY
8DF-W2587-40-00
26
HOLDER, MASTER CYLINDER
8CR-25867-00-00
28
BEAM SWITCH ASSY
8DN-83950-00-00
29
SCREW
8CR-2589H-00-00
32
HOSE, BRAKE 1
8DF-25872-20-00
35
CALIPER BODY COMP.1
8CR-25730-00-00
36
CALIPER BODY COMP. 2
8CR-25740-00-00
37
BOLT, FLANGE
90105-08094-00
40
COLLAR(82M)
90387-084R5-00
42
SPRING, TORSION
90508-291B1-00
43
PIN
90249-06009-00
49
LEVER 2
8CR-83922-00-00
52
. WASHER, PLATE
90201-06050-00
56
TAG, CAUTION
8CR-23496-00-00
