2001 Yamaha VX700F 8DS4 Alternate Clutch Tune UP KIT Diagram

← All diagrams

Find the part on the Alternate Clutch Tune UP KIT diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

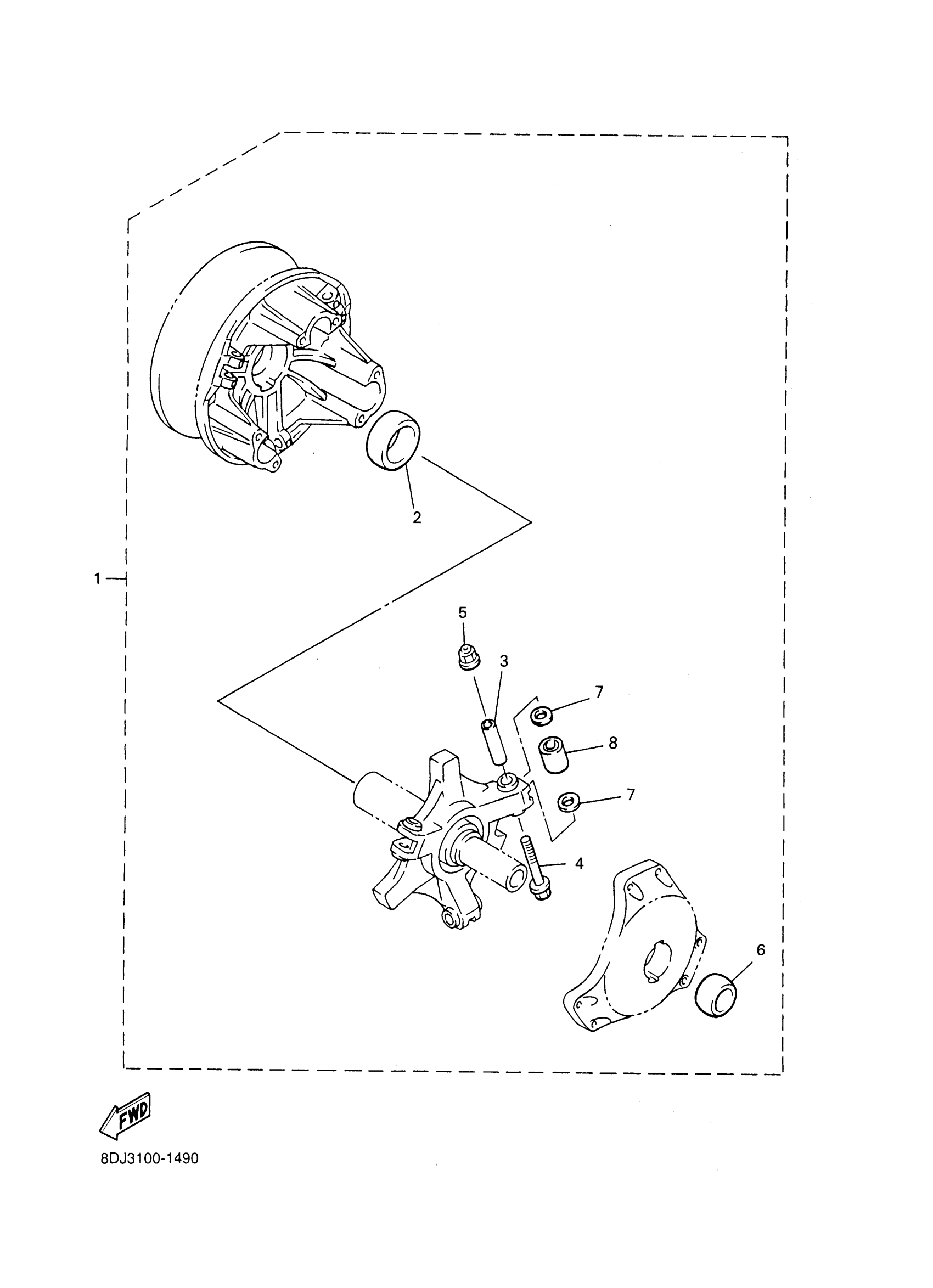

2001 Yamaha VX700F 8DS4 Alternate Clutch Tune UP KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH TUNE-UP KIT

8CS-00000-51-00

1
Out of stock

2

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

3

COLLAR

90387-0514U-00

1

$15.86

In stock

4

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

5

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

6

BUSH, SOLID(8CP)

90380-28237-00

1

$31.34

In stock

7

WASHER, PLATE(8BV)

90202-09227-00

1
Out of stock

8

ROLLER, COMP

8CR-17624-00-00

1

$58.06

In stock
← Alternate Clutch Repair KIT Alternate Drive Setting 1 →
