2001 Yamaha VX700F 8DS4 Track Drive 1 Diagram

← All diagrams

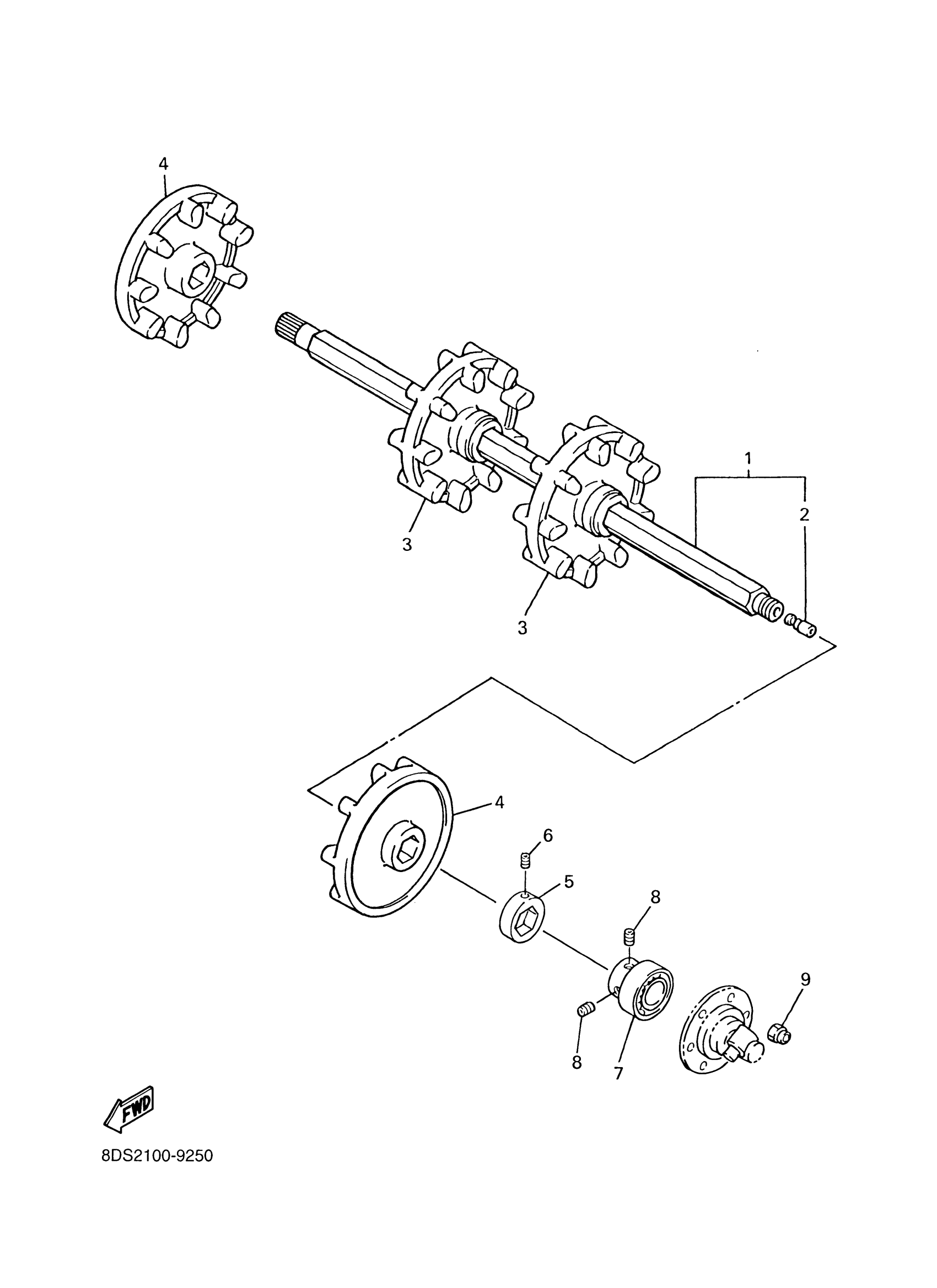

Find the part on the Track Drive 1 diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8CR-W4751-01-00

—

$174.23

In stock

2

CONNECTOR

8K4-47577-00-00

1

$16.57

In stock

3

WHEEL, SPROCKET 1

8CM-47531-10-00

1

$139.82

In stock

4

WHEEL, SPROCKET 2

8BW-47532-10-00

1

$113.55

In stock

5

COLLAR

8BW-47526-00-00

1

$52.60

In stock

6

BOLT, SET (8K2)

90113-06039-00

1

$6.97

In stock

7

BEARING(8CJ)

93306-20589-00

1

$51.47

In stock

8

BOLT, SET

90113-06006-00

1

$3.60

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock
