2001 Yamaha VX700F 8DS4 Alternate Drive Setting 2 Diagram

← All diagrams

Find the part on the Alternate Drive Setting 2 diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

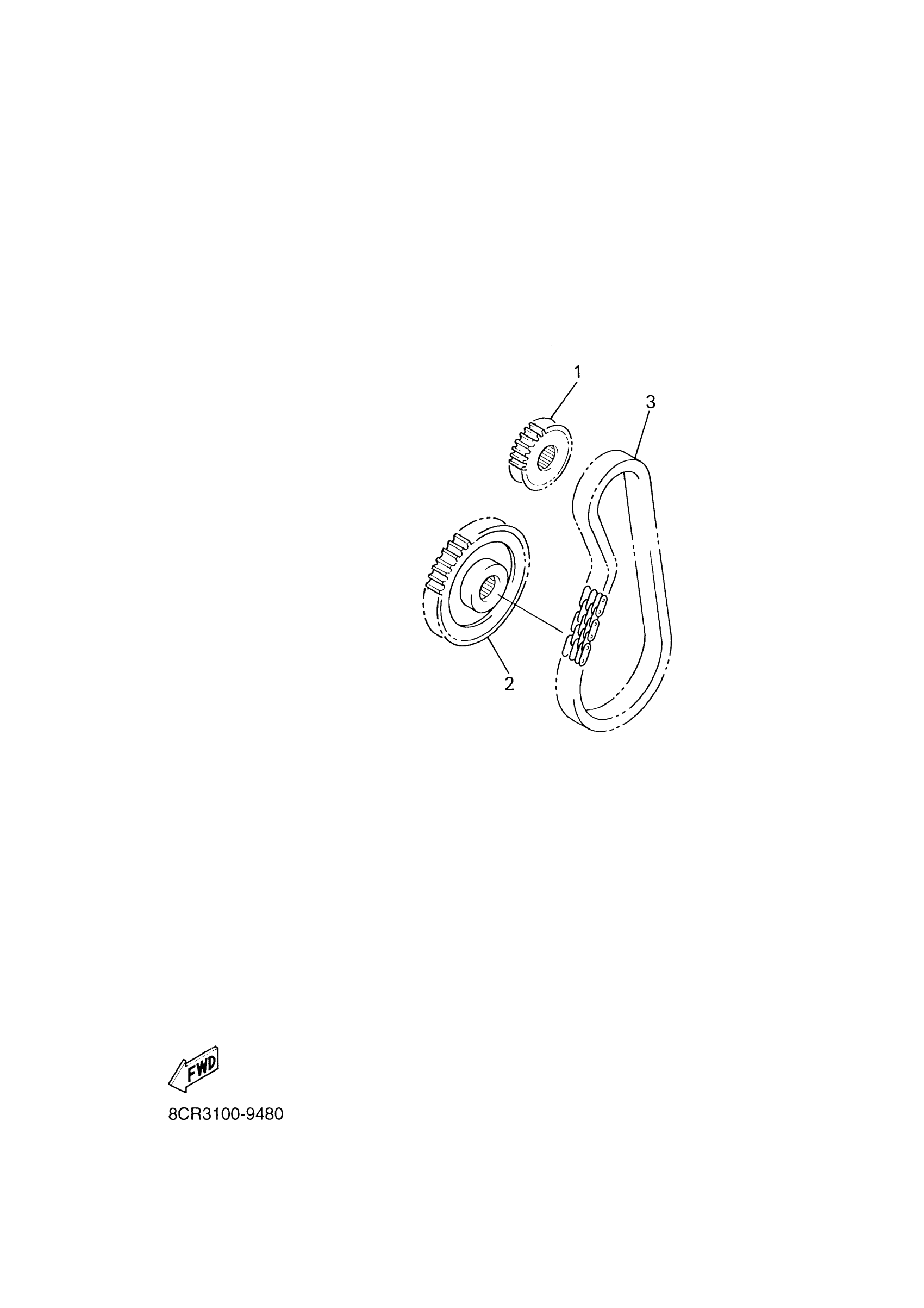

2001 Yamaha VX700F 8DS4 Alternate Drive Setting 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, CHAIN DRIVE (20T)

89J-17682-00-00

1
Out of stock

1

SPROCKET, CHAIN DRIVE (21T)

89J-17682-10-00

1
Out of stock

1

SPROCKET, CHAIN DRIVE

89J-17682-20-00

—

$58.46

In stock

1

SPROCKET, CHAIN DRIVE

89J-17682-30-00

—

$40.55

In stock

1

SPROCKET, CHAIN DRIVE (19T)

89J-17682-91-00

1
Out of stock

2

SPROCKET, CHAIN DRIVEN (40T)

89J-47587-00-00

1
Out of stock

2

SPROCKET, CHAIN DRIVEN (39T)

89J-47587-90-00

1
Out of stock

3

CHAIN (68L)

94860-02068-00

1
Out of stock

3

CHAIN (70L)

94860-02070-00

1
Out of stock
