2001 Yamaha VX700F 8DS4 Track Suspension 1 Diagram

← All diagrams

Find the part on the Track Suspension 1 diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

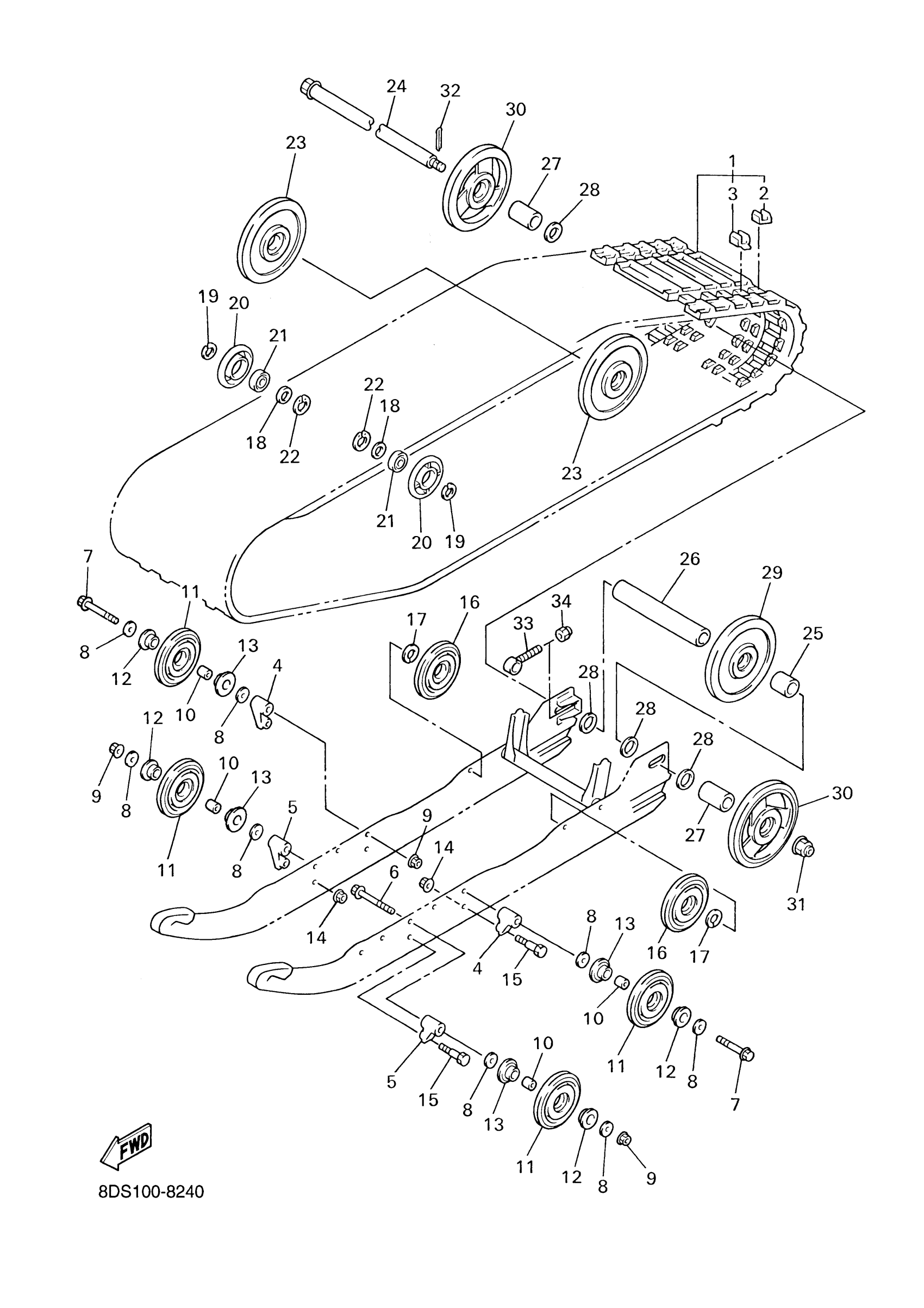

2001 Yamaha VX700F 8DS4 Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSY

8EA-47110-10-00

1
Out of stock

2

PLATE, REINFORCEMENT

8EA-47113-00-00

1
Out of stock

3

METAL, SLIDE

8EA-47115-00-00

1
Out of stock

4

BRACKET 7

8DF-47419-00-00

1
Out of stock

5

BRACKET 7

8DF-47419-10-00

1
Out of stock

6

BOLT, WASHER BASED(59V)

90105-10392-00

1

$8.40

In stock

7

BOLT, FLANGE

95817-10085-00

1
Out of stock

8

WASHER, PLATE(8CM)

90201-100S0-00

1

$5.00

In stock

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

10

COLLAR

90387-10079-00

1
Out of stock

11

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

1
Out of stock

12

SPACER

8CR-47341-01-00

1
Out of stock

13

SPACER

8CR-47341-11-00

1

$10.69

In stock

14

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

15

BOLT(8CM)

90101-08774-00

1

$4.63

In stock

16

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

1
Out of stock

17

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

18

COLLAR(8AB)

90387-2004V-00

—

$9.15

In stock

19

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

20

SUSPENSION WHEEL COMP.

8H8-47320-00-00

—

$53.83

In stock

21

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

22

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

23

GUIDE WHEEL ASSY

8CR-47550-00-00

1
Out of stock

24

REAR AXLE COMP.

8L8-47520-02-00

—

$83.57

In stock

25

COLLAR

90387-2012E-00

—

$8.09

In stock

26

COLLAR

90387-2012C-00

—

$21.37

In stock

27

COLLAR

90387-2012D-00

—

$12.03

In stock

28

WASHER, PLATE(89W)

90201-205R6-00

—

$10.68

In stock

29

GUIDE WHEEL ASSY

8CR-47550-10-00

1
Out of stock

30

WHEEL SILVER PLASTIC ASSY

8DF-47550-01-SL

1
Out of stock

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

—
Out of stock

32

PIN, COTTER

91401-30025-00

—

$6.18

In stock

33

COLLAR 3

8K2-47479-01-00

—

$25.69

In stock

34

NUT, NYLON

95707-10300-00

—

$6.68

In stock
