2001 Yamaha VX700F 8DS4 Secondary Sheave Diagram

← All diagrams

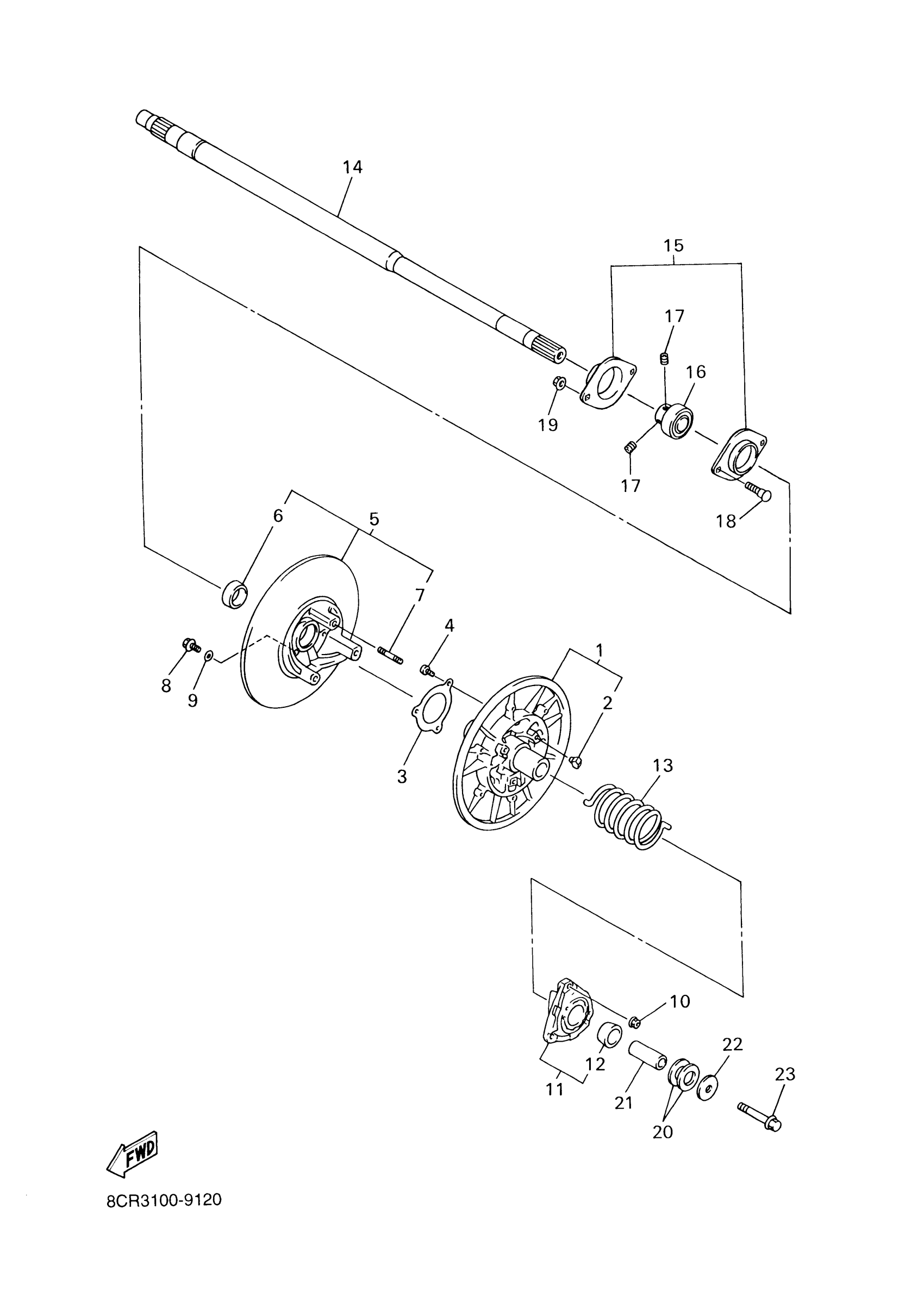

Find the part on the Secondary Sheave diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-20-00

1
Out of stock

2

SHOE, RAMP

8AV-17688-10-00

1

$27.33

In stock

3

STOPPER, HOLDER

8BV-17656-00-00

1

$20.20

In stock

4

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

—

$218.32

In stock

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1

$52.33

In stock

7

BOLT, STUD 3

95617-08630-00

1
Out of stock

8

BOLT, WASHER BASED(8BN)

90105-06734-00

1

$2.82

In stock

9

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

9

WASHER, PLATE (22K)

90201-061H1-00

1
Out of stock

10

NUT(8BN)

90179-08655-00

1
Out of stock

11

SEAT SPRING SET

8BV-17604-51-00

1

$158.42

In stock

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1

$52.33

In stock

13

SPRING, TORSION(8BN)

90508-556A2-00

1

$40.38

In stock

14

SHAFT, SECONDARY

8CR-17681-10-00

1
Out of stock

15

HOUSING, BEARING

8CR-47631-01-00

—

$19.00

In stock

16

BEARING(8CJ)

93399-99943-00

—

$46.72

In stock

17

BOLT, SET

90113-06006-00

—

$3.60

In stock

18

BOLT(8CJ)

90109-083G2-00

—

$6.88

In stock

19

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

20

WASHER, PLATE (T=0.5)

90201-222F0-00

1

$5.89

In stock

20

WASHER, PLATE (8L8)

90201-225A4-00

—
Out of stock

21

COLLAR

90387-14019-00

—

$24.45

In stock

22

WASHER, PLATE

90201-14022-00

—

$4.86

In stock

23

BOLT, WASHER BASED(8CJ)

90105-14766-00

—

$23.89

In stock
