2001 Yamaha VX700F 8DS4 Track Drive 2 Diagram

← All diagrams

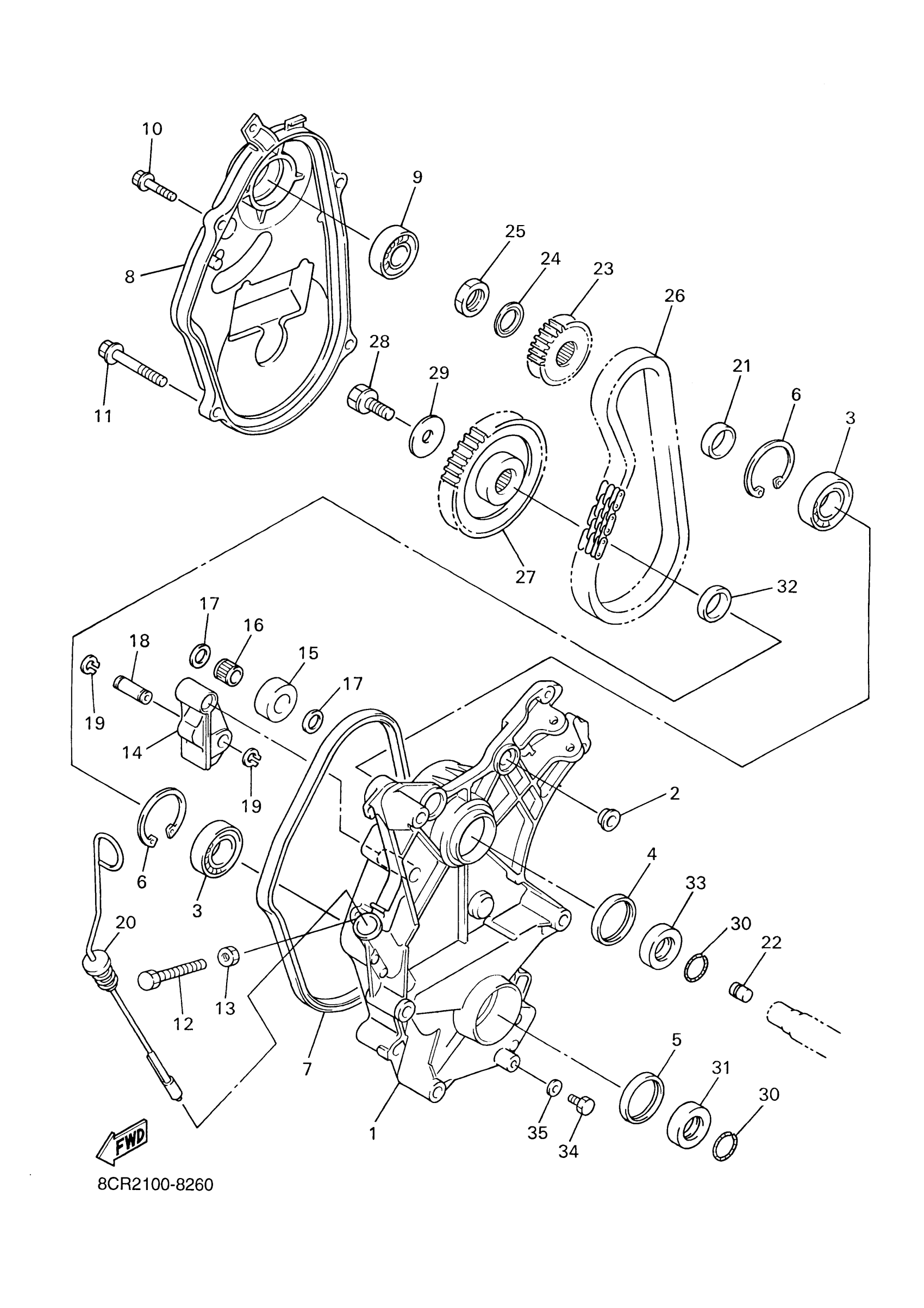

Find the part on the Track Drive 2 diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8CR-47541-01-00

1

$428.52

In stock

2

NUT(8CJ)

90179-10679-00

—

$6.71

In stock

3

BEARING

93306-20592-00

1

$50.25

In stock

4

OIL SEAL

93102-35473-00

1

$28.01

In stock

5

OIL SEAL (36R)

93102-35318-00

1

$21.11

In stock

6

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

7

RING, HOUSING/GASKET

8CR-47558-02-00

1
Out of stock

8

CAP, HOUSING

8CR-47543-01-00

1
Out of stock

9

BEARING(1GJ)

93306-20458-00

1

$36.19

In stock

10

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

11

BOLT, FLANGE

95817-10060-00

1
Out of stock

12

BOLT, HEXAGON (8F3)

90101-10357-00

—

$6.52

In stock

13

NUT(6TD)

95337-10600-00

1

$6.98

In stock

14

HOLDER

8CR-47613-00-00

—

$41.85

In stock

15

WHEEL

8CR-47612-00-00

1
Out of stock

16

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

—

$39.37

In stock

17

WASHER, PLATE (5N6)

90201-127E1-00

—

$3.68

In stock

18

PIN(8CJ)

90249-12227-00

—
Out of stock

19

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

20

LEVEL, OIL

8CR-47546-00-00

1
Out of stock

21

COLLAR

90387-2508D-00

1
Out of stock

22

PLUG, OIL

82M-17699-00-00

—

$11.28

In stock

23

SPROCKET, CHAIN DRIVE

89J-17682-30-00

—

$40.55

In stock

24

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

25

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock

26

CHAIN (70L)

94860-02070-00

1
Out of stock

27

SPROCKET, CHAIN DRIVEN (40T)

89J-47587-00-00

1
Out of stock

28

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

29

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

30

O-RING (169)

93210-25071-00

—

$7.51

In stock

31

COLLAR(8CJ)

90387-2508C-00

—

$39.00

In stock

32

COLLAR

90387-2508B-00

1
Out of stock

33

COLLAR

90387-2511J-00

1
Out of stock

34

BOLT(8BC)

97007-08014-00

—
Out of stock

35

WASHER, SEAL(8AB)

90210-08017-00

—

$6.91

In stock
