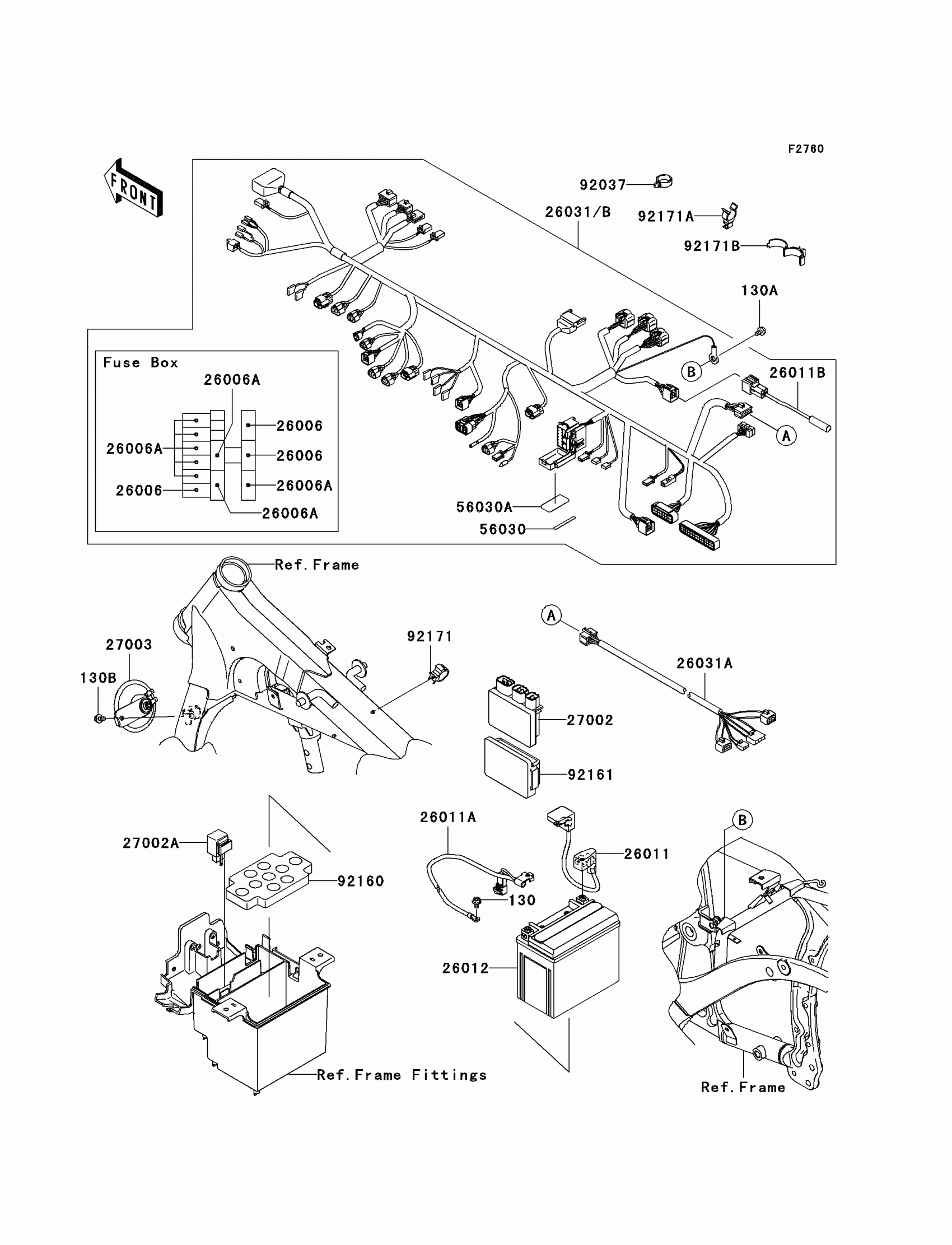

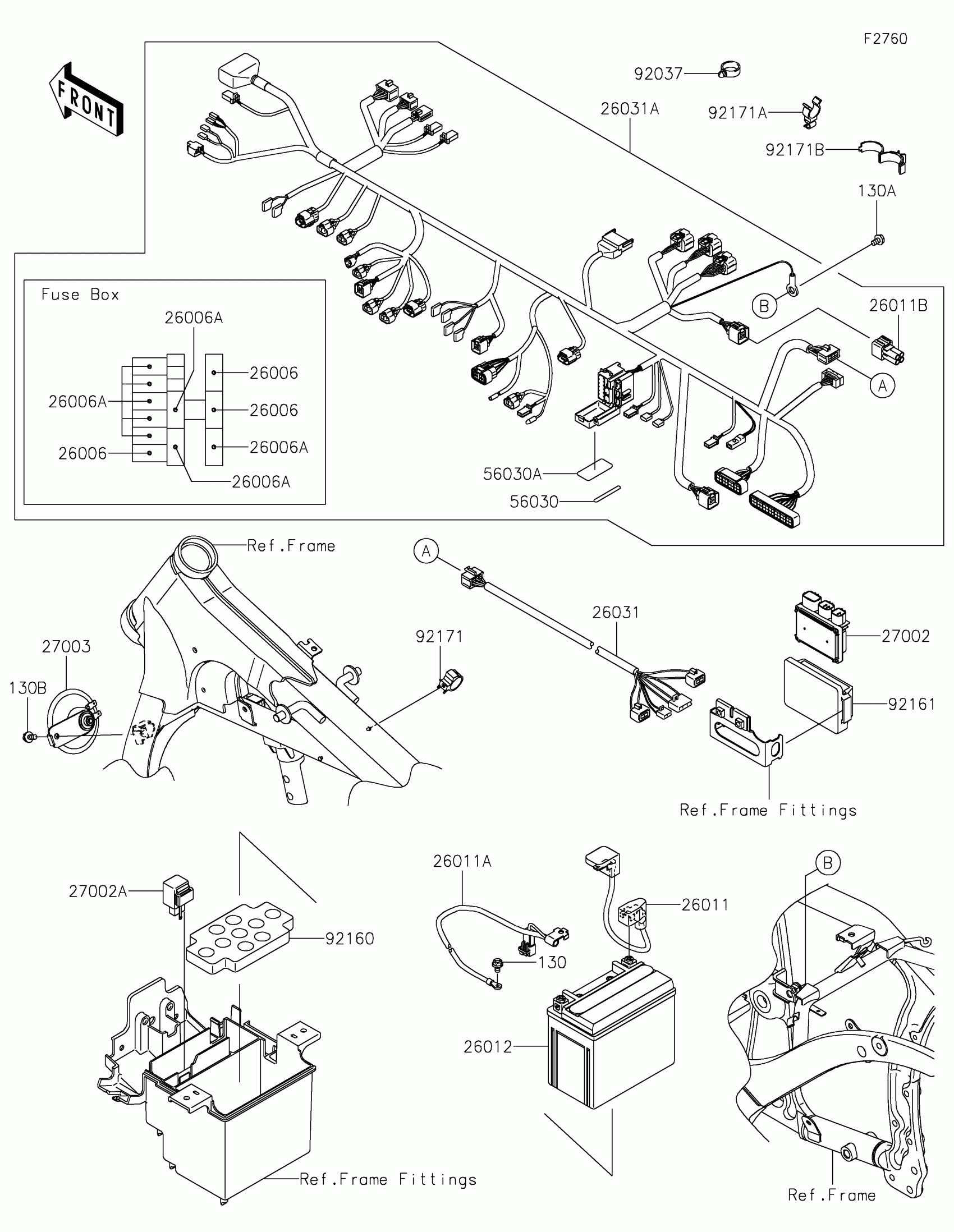

Kawasaki Vulcan® 900 Classic LT Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

130B

BOLT-FLANGED,6X12

130BB0612

$1.68

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,BATTERY(+)

26011-0089

$47.69

26011A

WIRE-LEAD,BATTERY(-)

26011-0090

$28.61

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

$15.02

26012

BATTERY,YTX12-BS,12V 10AH

26012-0094

Unavailable

26031A

HARNESS,RR

26031-0448

$67.95

26031B

HARNESS,MAIN

26031-0729

$713.92

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-0039

$64.91

56030

LABEL,FUSE BOX

56030-0016

$5.34

56030A

LABEL,FUSE BOX

56030-0046

$5.14

92037

CLAMP,HOSE

92037-1827

$5.69

92160

DAMPER,BATTERY

92160-1635

$28.95

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92171

CLAMP,20MM DIA.

92171-0081

$3.75

92171A

CLAMP,CABLE

92171-0347

$4.90

92171B

CLAMP,10MM DIA.

92171-1423

$3.75
