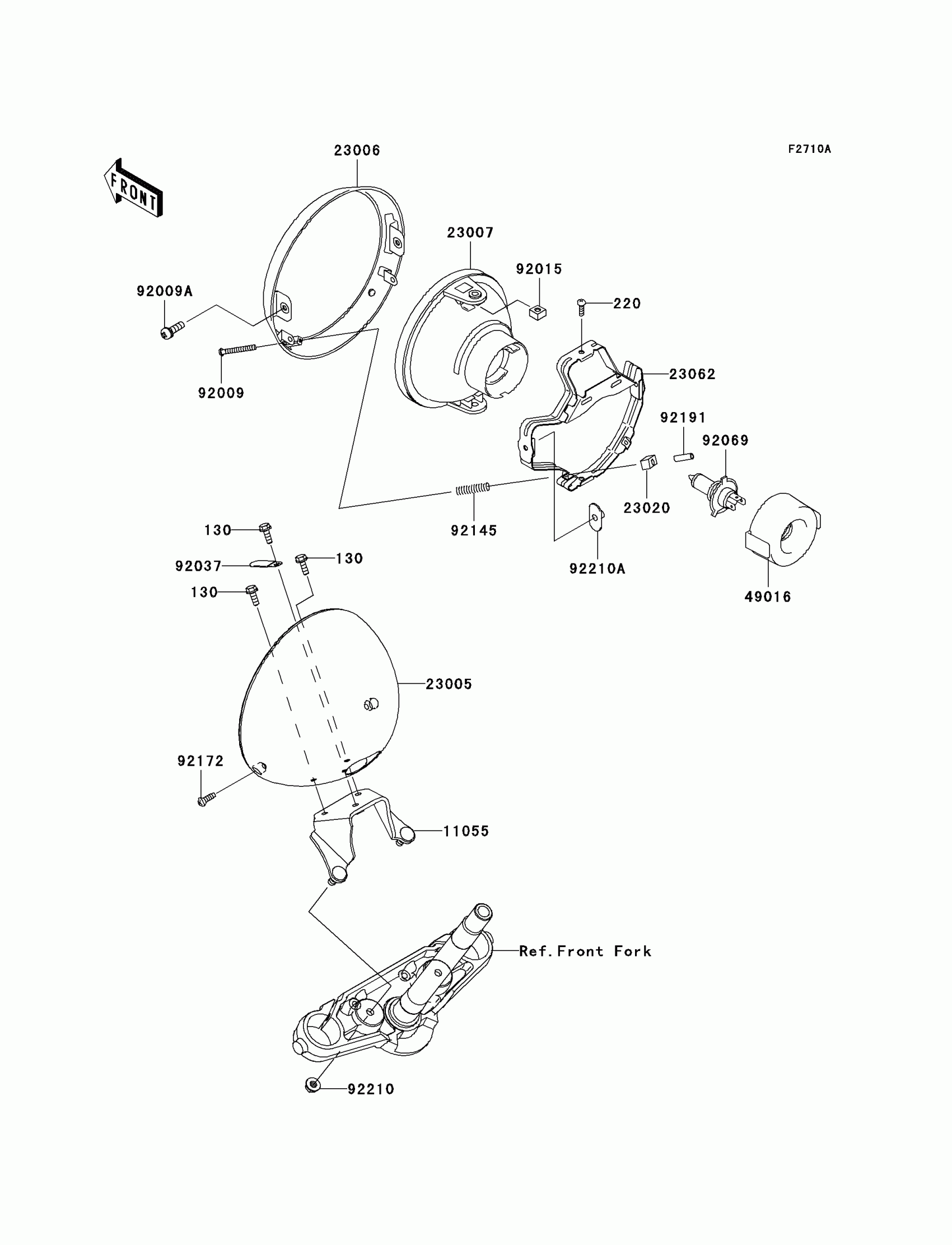

Kawasaki Vulcan® 900 Classic LT Headlight(s)(D9F/DAF) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$1.12

220

SCREW-PAN-CROS,5X16

220AA0516

$1.73

11055

BRACKET,HEAD LAMP

11055-1167

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-0014

Unavailable

23006

RIM-LAMP

23006-1081

$79.14

23007

LENS-COMP,HEAD LAMP

23007-1396

$140.92

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$51.45

49016

COVER-SEAL,SOCKET

49016-1203

$11.61

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.17

92009A

SCREW,5X16

92009-1879

$1.00

92015

NUT,5MM

92015-1157

$4.32

92037

CLAMP,L=45

92037-1539

$4.42

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.39

92172

SCREW,5X14

92172-0145

$1.78

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,FLANGED,8MM

92210-0004

$4.27

92210A

NUT,SPECIAL,5MM

92210-1060

$2.03
