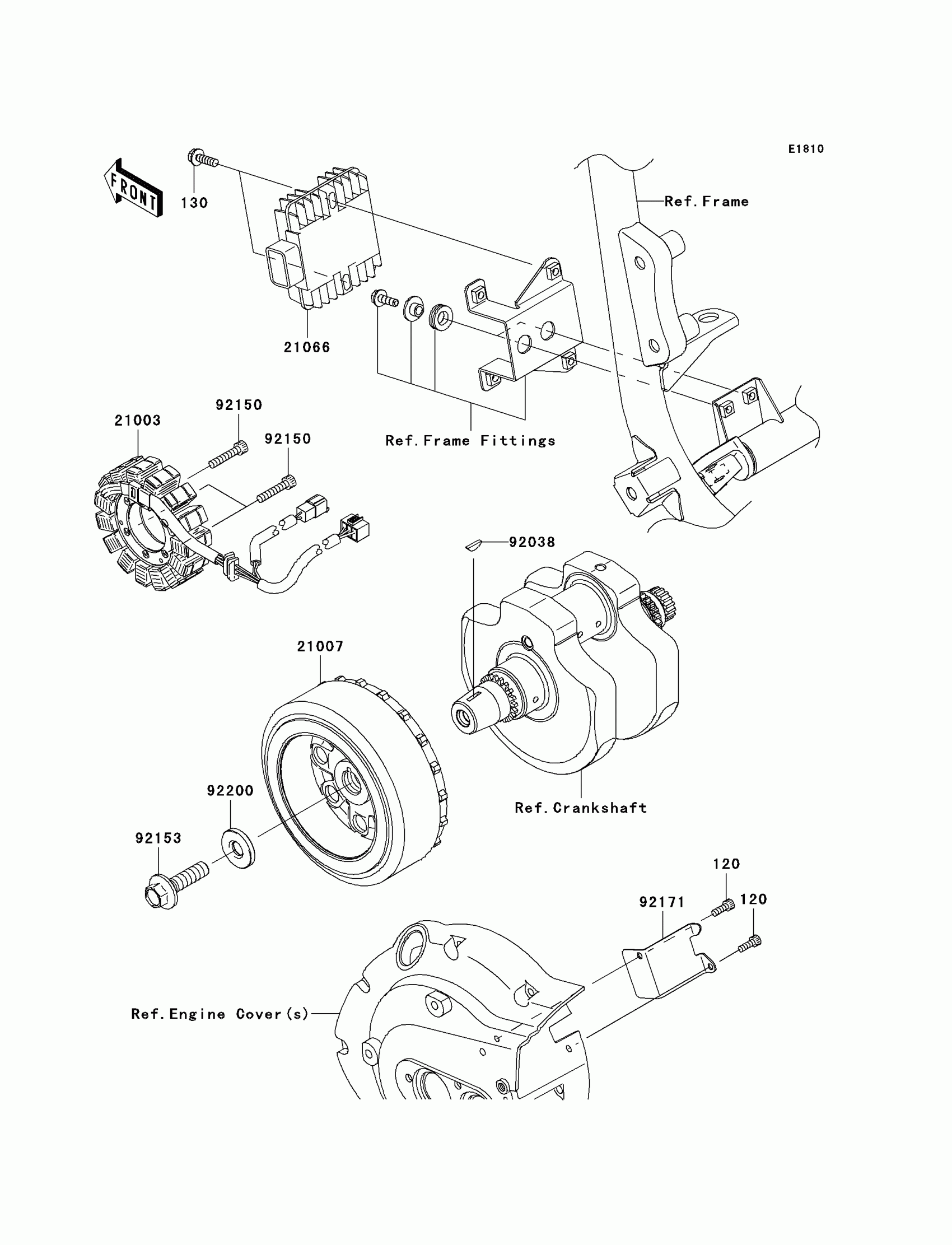

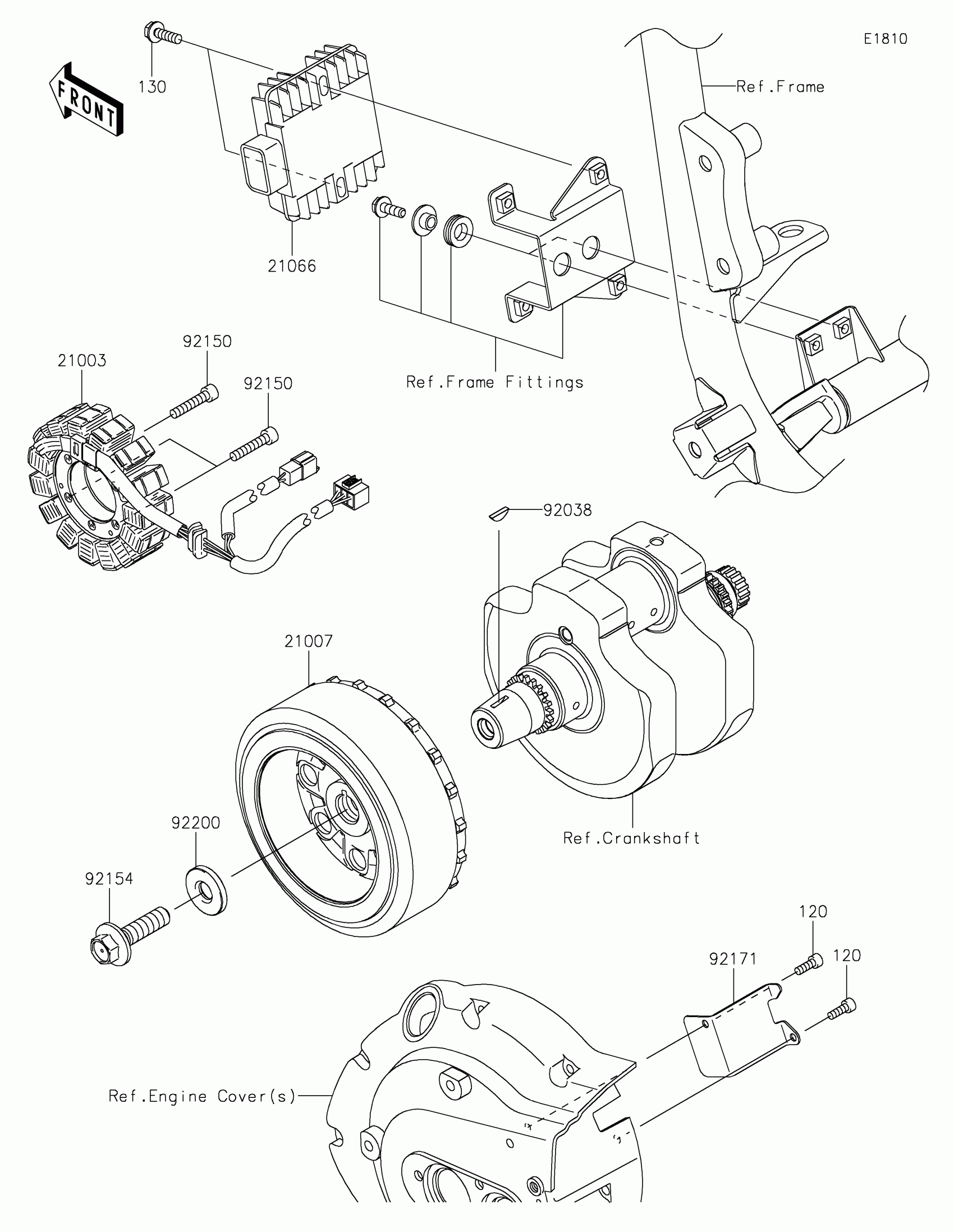

Kawasaki Vulcan® 900 Classic LT Generator Diagram

#

Description
Price

120

BOLT-SOCKET,5X14

120CA0514

$4.24

130

BOLT-FLANGED,6X20

130BB0620

$0.47

21003

STATOR

21003-0053

$622.31

21007

ROTOR

21007-0076

$707.67

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

92038

KEY,WOODRUFF

92038-001

$3.78

92150

BOLT,SOCKET,6X30

92150-1433

$3.71

92153

BOLT,FLANGED,12X45

92154-1357

$41.83

92171

CLAMP

92171-0563

$5.56

92200

WASHER,12X33X5

92200-0220

$7.61
