2010 Kawasaki Vulcan® 900 Classic LT Starter Motor Diagram

← All diagrams

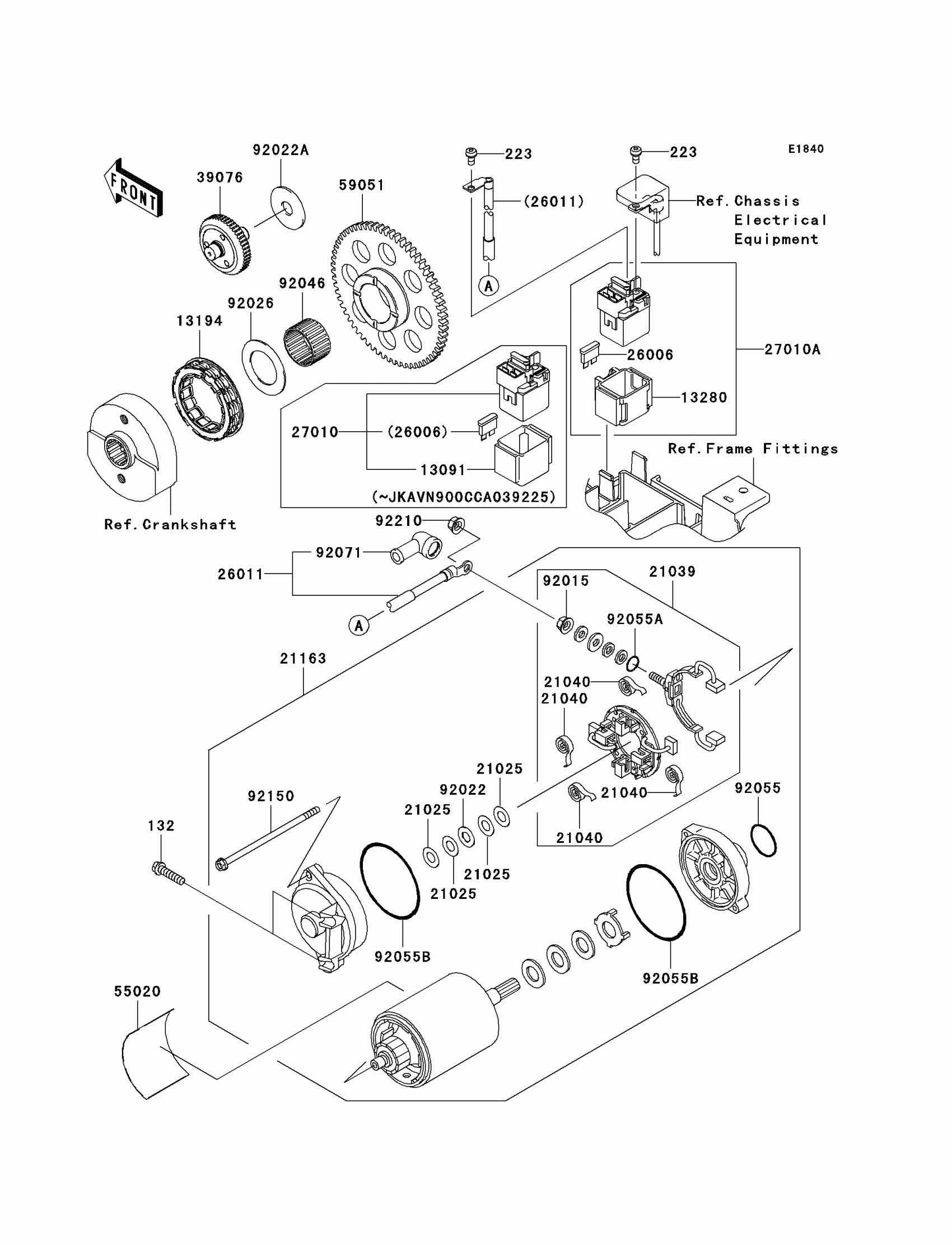

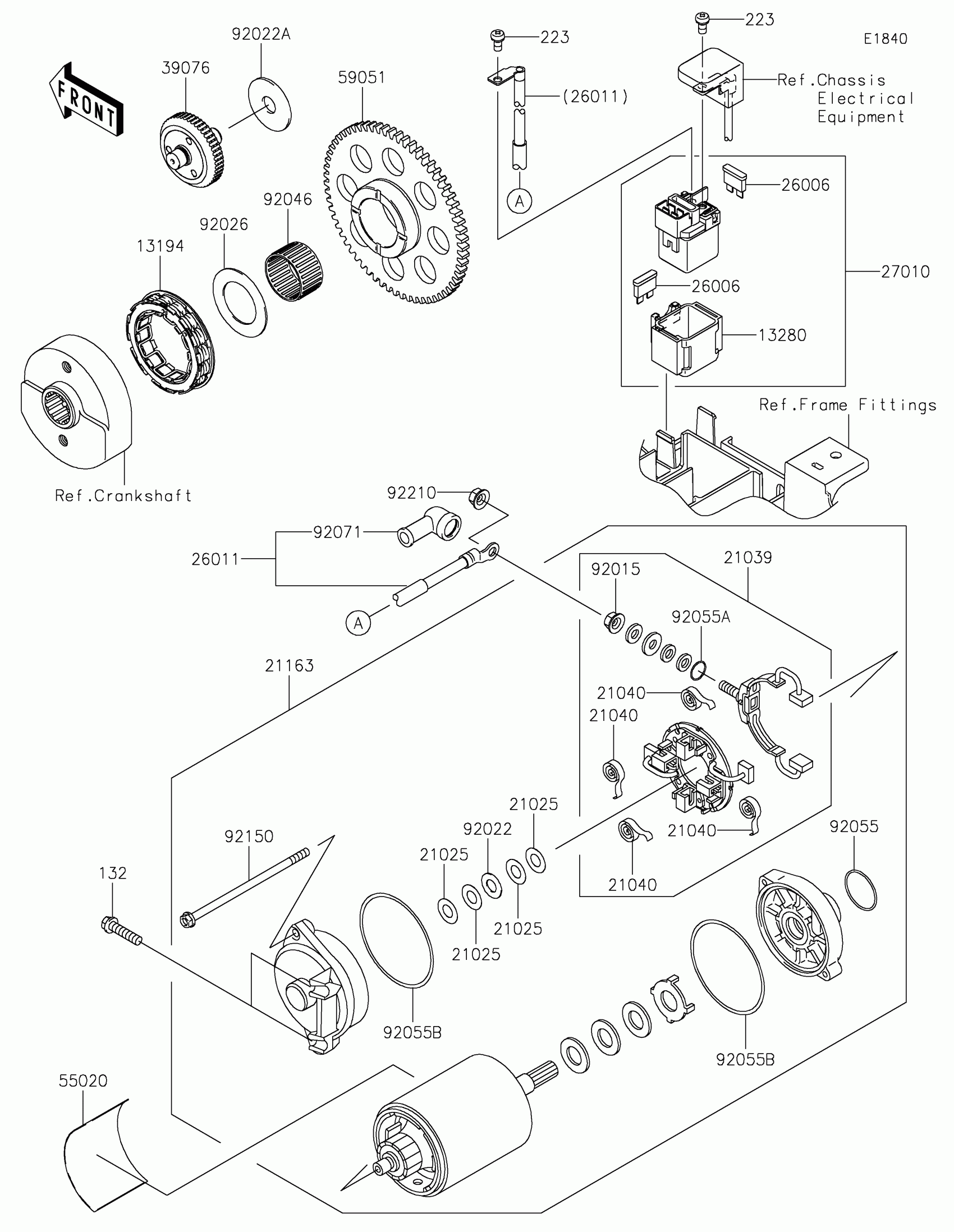

Find the part on the Starter Motor diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X25

132BB0625

1
Out of stock

223

SCREW-PAN-WS-CROS,5X10

223AA0510

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0009

1
Out of stock

13280

HOLDER

13280-1263

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

—
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-1263

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-0126

1
Out of stock

27010A

SWITCH,MAGNETIC

27010-1446

1
Out of stock

39076

LIMITER

39076-0008

1
Out of stock

55020

GUARD,STARTER MOTER

55020-1589

1
Out of stock

59051

GEAR-SPUR,63T

59051-0060

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022A

WASHER,12.3X38X2.0

92022-1664

1
Out of stock

92026

SPACER,31X49.5X1.2

92026-1490

1
Out of stock

92046

BEARING-NEEDLE,K30X35X20

92046-1171

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92071

GROMMET

92071-0024

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1913

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
