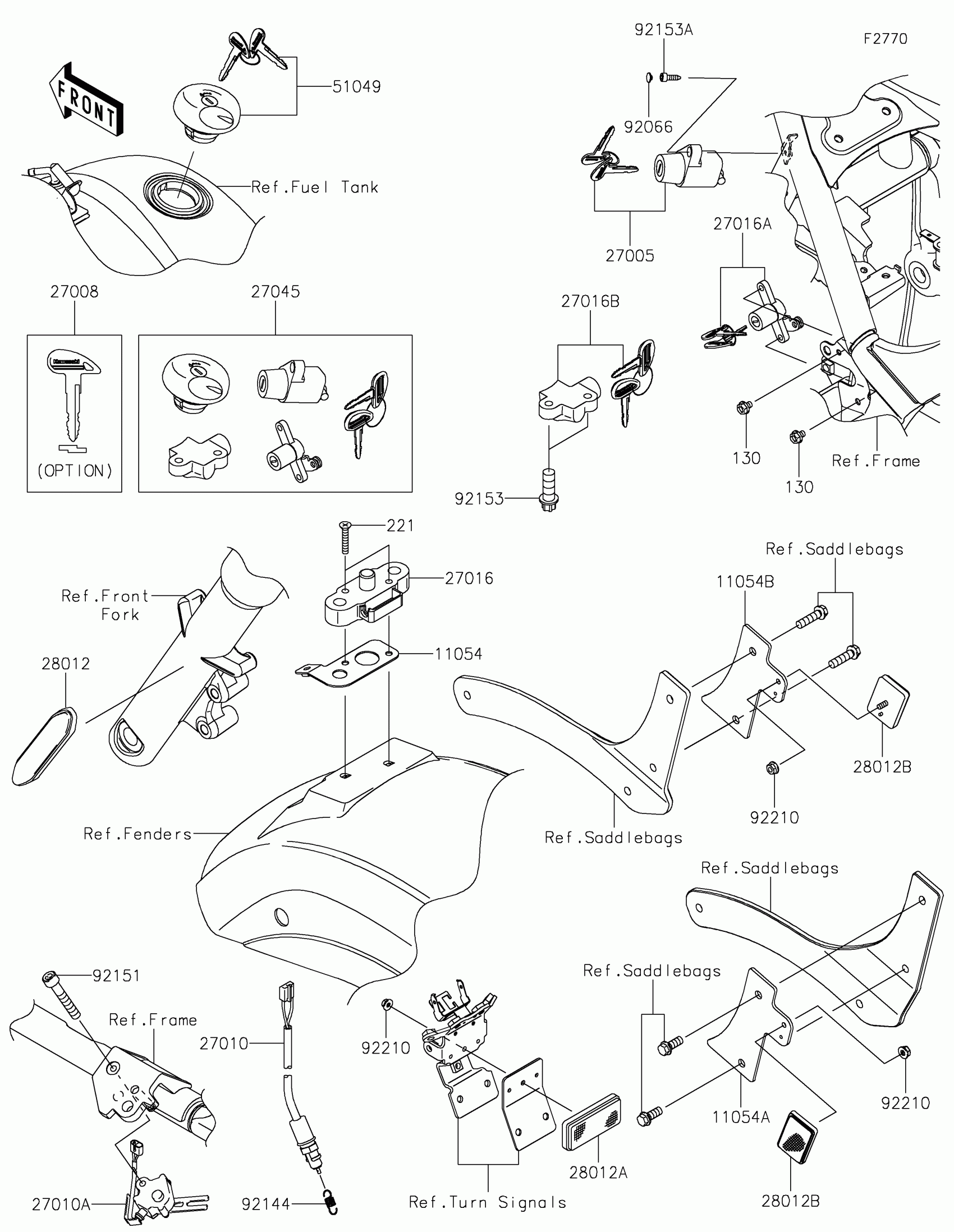

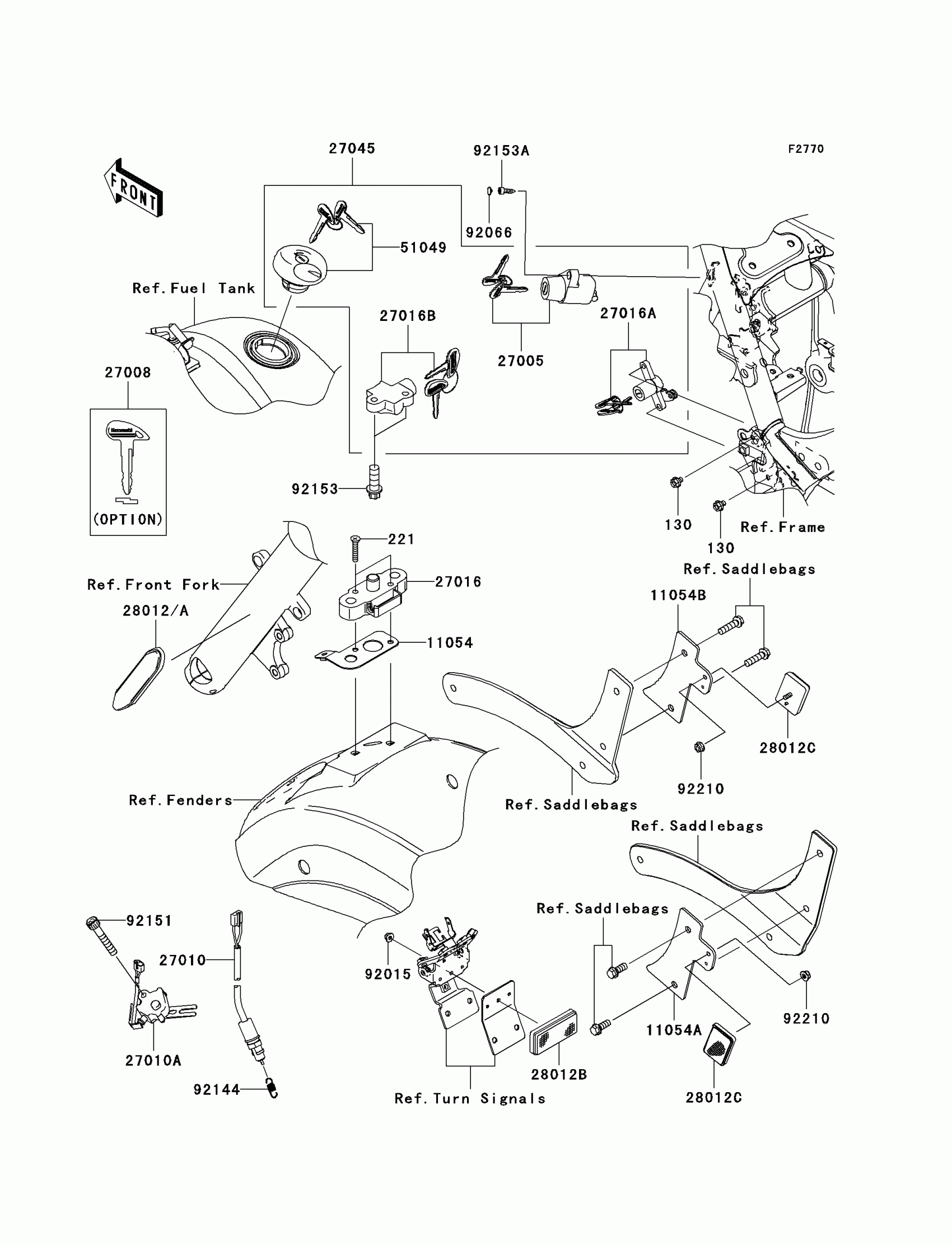

Find the part on the Ignition Switch/locks/reflectors diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130BB0608

1
Out of stock

221

SCREW-CSK-CROS,6X35

221AB0635

1
Out of stock

11054

BRACKET,SEAT LOCK

11054-0492

1
Out of stock

11054A

BRACKET,REFLECTOR,RR,LH

11054-0809

1
Out of stock

11054B

BRACKET,REFLECTOR,RR,RH

11054-0810

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0032

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0042

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-0050

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1470

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5341

1
Out of stock

27016B

LOCK-ASSY,STEERING

27016-5342

1
Out of stock

27045

SWITCH-ASSY

27045-5323

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0019

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012C

REFLECTOR-REFLEX

28012-1088

1
Out of stock

51049

CAP-TANK,FUEL

51049-5001

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1
Out of stock

92066

PLUG

92066-1543

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92151

BOLT,SOCKET,6X35

92151-1390

1
Out of stock

92153

BOLT,TORX,8X22

92153-1273

1
Out of stock

92153A

BOLT,SOCKET,5X16

92153-1685

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
