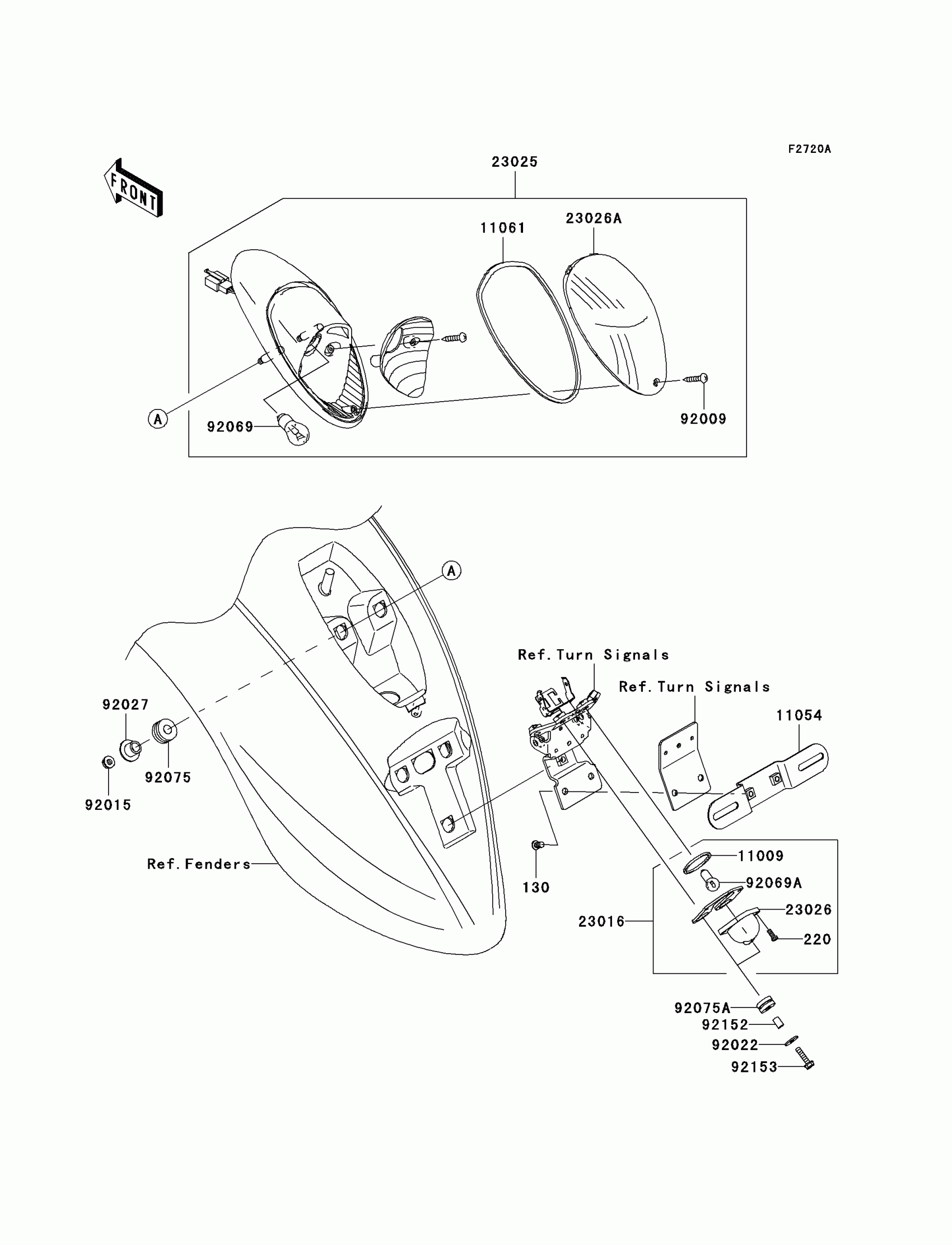

Kawasaki Vulcan® 900 Classic LT Taillight(s)(JKAVN2D1 7A011497-) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$1.84

220

SCREW-PAN-CROS,4X10

220AA0410

$1.75

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.14

11054

BRACKET,LICENSE

11054-1761

$18.29

11061

GASKET,TAIL LAMP LENS

11061-1089

$7.76

23016

LAMP-ASSY,LICENSE

23016-0007

$76.28

23025

LAMP-TAIL

23025-0025

$161.03

23026

LENS,LAMP

23026-1054

$9.02

23026A

LENS,TAIL LAMP

23026-1246

$72.70

92009

SCREW,TAPPING,4X16

92009-1966

$2.00

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92022

WASHER,6.5X20X1.6

92022-1557

$1.25

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.93

92069

BULB,12V 21/5W

92069-063

$7.39

92069A

BULB,12V 5W

92069-1055

$4.12

92075

DAMPER,10X24X12

92075-1690

$3.97

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.72

92152

COLLAR,6.8X10X13

92152-0580

$3.51

92153

BOLT,FLANGED,6X25

92153-0514

$1.78
