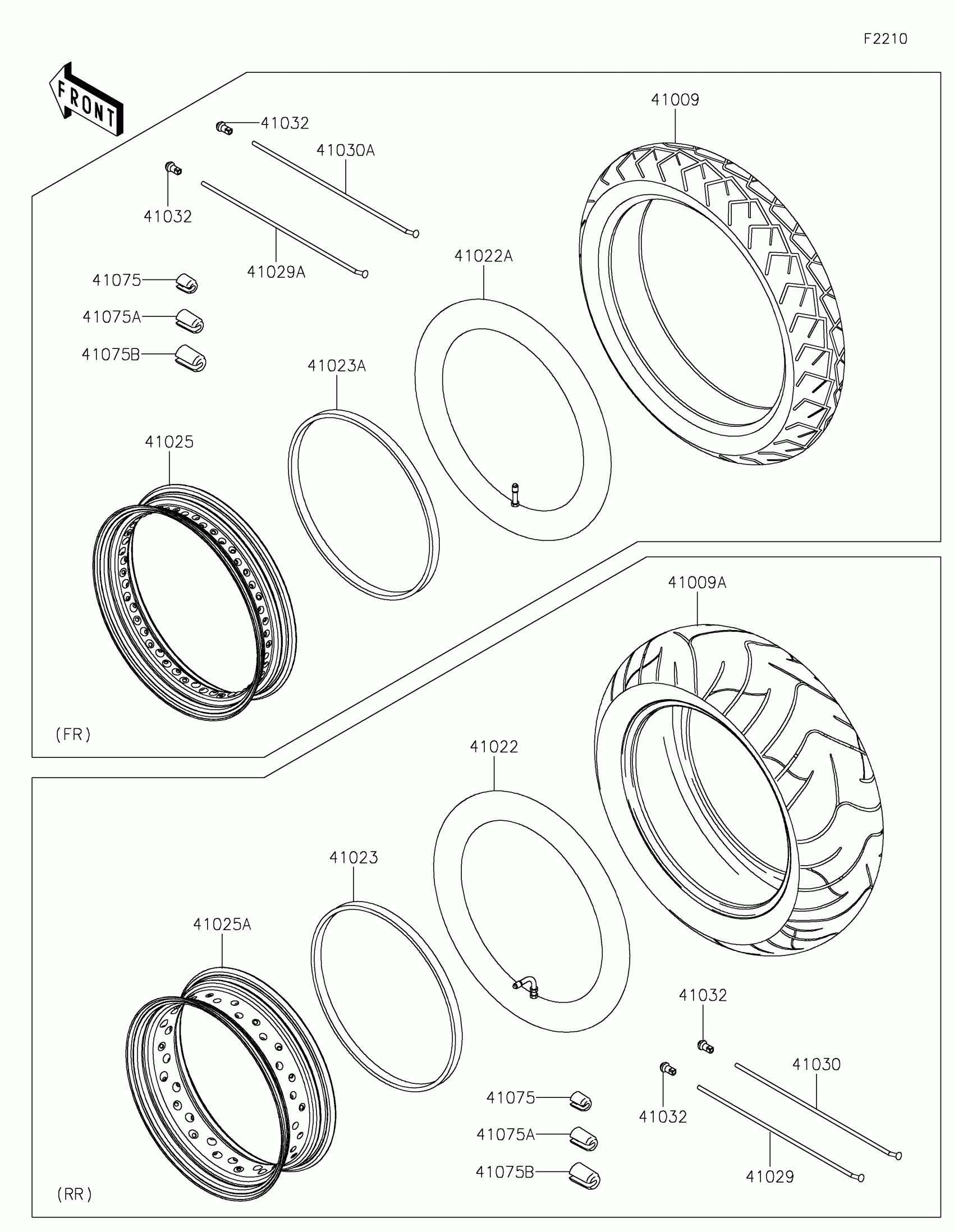

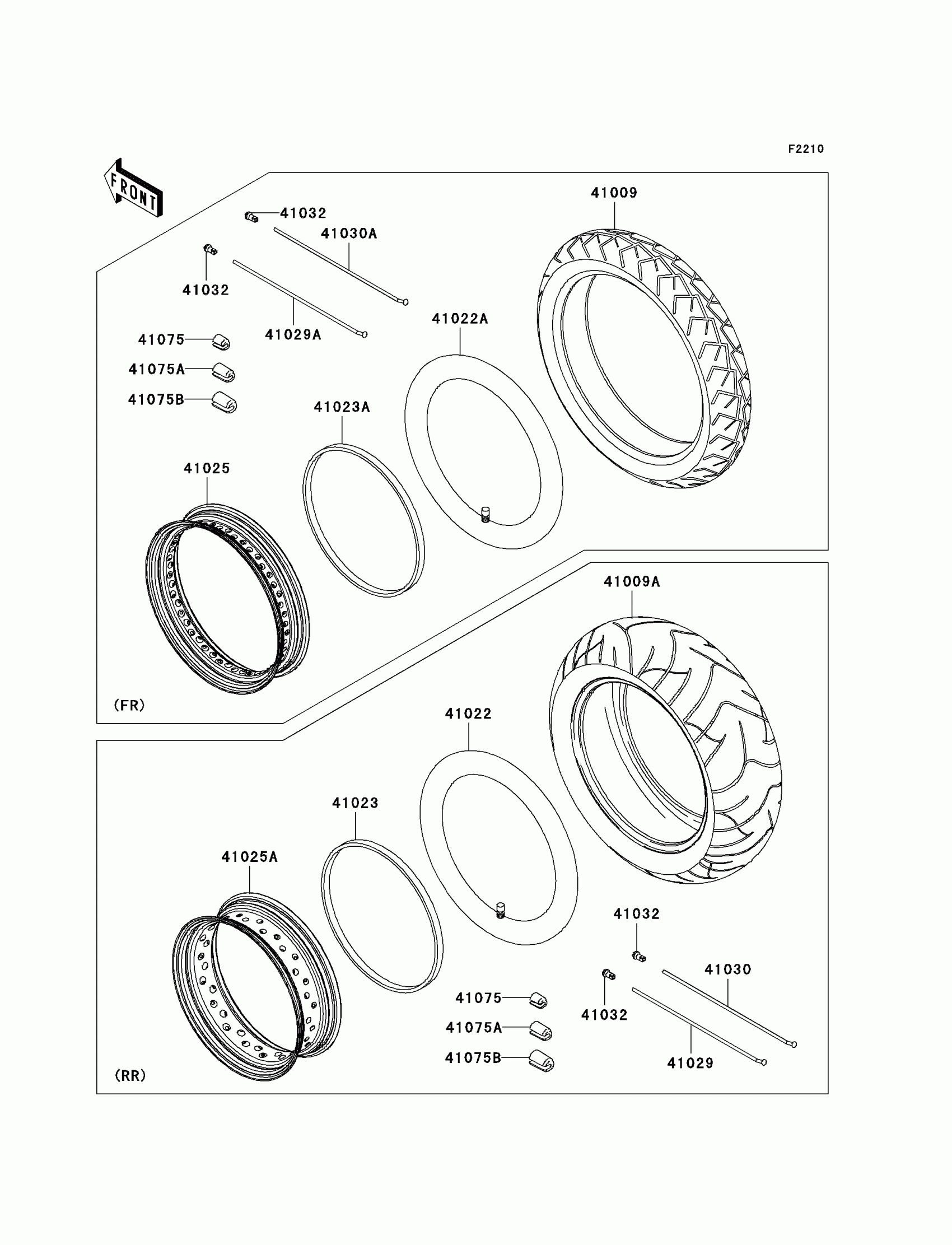

2010 Kawasaki Vulcan® 900 Classic LT Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,130/90-16 67H,D404F(D)

41009-0103

1
Out of stock

41009A

TIRE,RR,180/70-15 76H,D404(D)

41009-0104

1
Out of stock

41022

TUBE-TIRE,180/70-15(D)

41022-0024

1
Out of stock

41022A

TUBE-TIRE,130/90-16(D)

41022-1192

1
Out of stock

41023

BAND-RIM,180/70-15(D)

41023-0008

1
Out of stock

41023A

BAND-RIM,140/90-16(D)

41023-1102

1
Out of stock

41025

RIM,FR,3.00X16

41025-0046

1
Out of stock

41025A

RIM,RR,4.50X15

41025-0062

1
Out of stock

41029

SPOKE-INNER,RR,92.5MMX109.5D

41029-0022

1
Out of stock

41029A

SPOKE-INNER,FR,154.5MMX117D

41029-0026

1
Out of stock

41030

SPOKE-OUTER,RR,91.5MMX109D

41030-0008

1
Out of stock

41030A

SPOKE-OUTER,FR,151.5MMX116D

41030-0012

1
Out of stock

41032

NIPPLE-SPOKE

41032-0005

1
Out of stock

41075

BALANCER-WHEEL,10G

41075-0011

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-0012

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-0013

—
Out of stock
