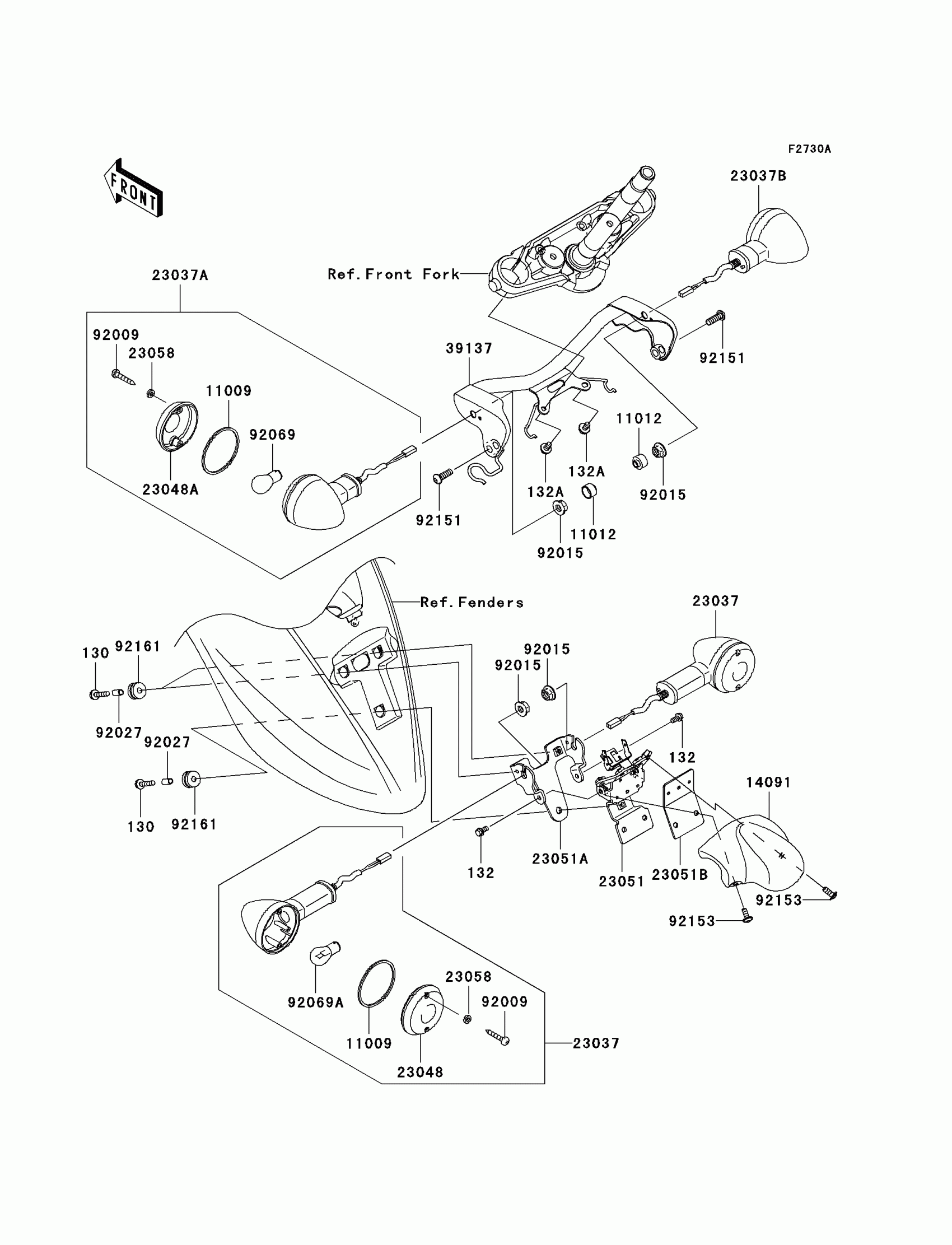

Kawasaki Vulcan® 900 Classic LT Turn Signals (JKAVN2D1 7A011497-) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130CA0630

$2.05

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.73

132A

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

11009

GASKET,SIGNAL LAMP

11009-1413

$3.94

11012

CAP

11012-1367

$5.15

14091

COVER

14091-0525

$49.91

23037

LAMP-ASSY-SIGNAL,RR

23037-0087

$74.29

23037A

LAMP-ASSY-SIGNAL,FR,LH

23037-0107

$74.29

23037B

LAMP-ASSY-SIGNAL,FR,RH

23037-0108

$74.29

23048

LENS-SIGNAL LAMP,RR

23048-1065

$7.56

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$7.56

23051

BRACKET-SIGNAL LAMP,RR,LWR

23051-0020

$32.46

23051A

BRACKET-SIGNAL LAMP,RR,UPP

23051-0021

$25.56

23051B

BRACKET-SIGNAL LAMP,RR

23051-0022

$11.42

23058

WASHER,PLAIN,4MM

23058-002

$2.05

39137

STAY-COMP,FR SIGNAL LAMP

39137-0019

$146.34

92009

SCREW,TAPPING,4X25

92009-1637

$3.53

92015

NUT,10MM

92015-1356

$2.97

92027

COLLAR,6.8X10X15

92027-1941

$3.97

92069

BULB,12V 21/5W

92069-063

$7.39

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92151

BOLT,SOCKET,8X25

92151-1327

$3.53

92153

BOLT,SOCKET,6X16

92153-0817

$1.81

92161

DAMPER

92161-0163

$4.59
