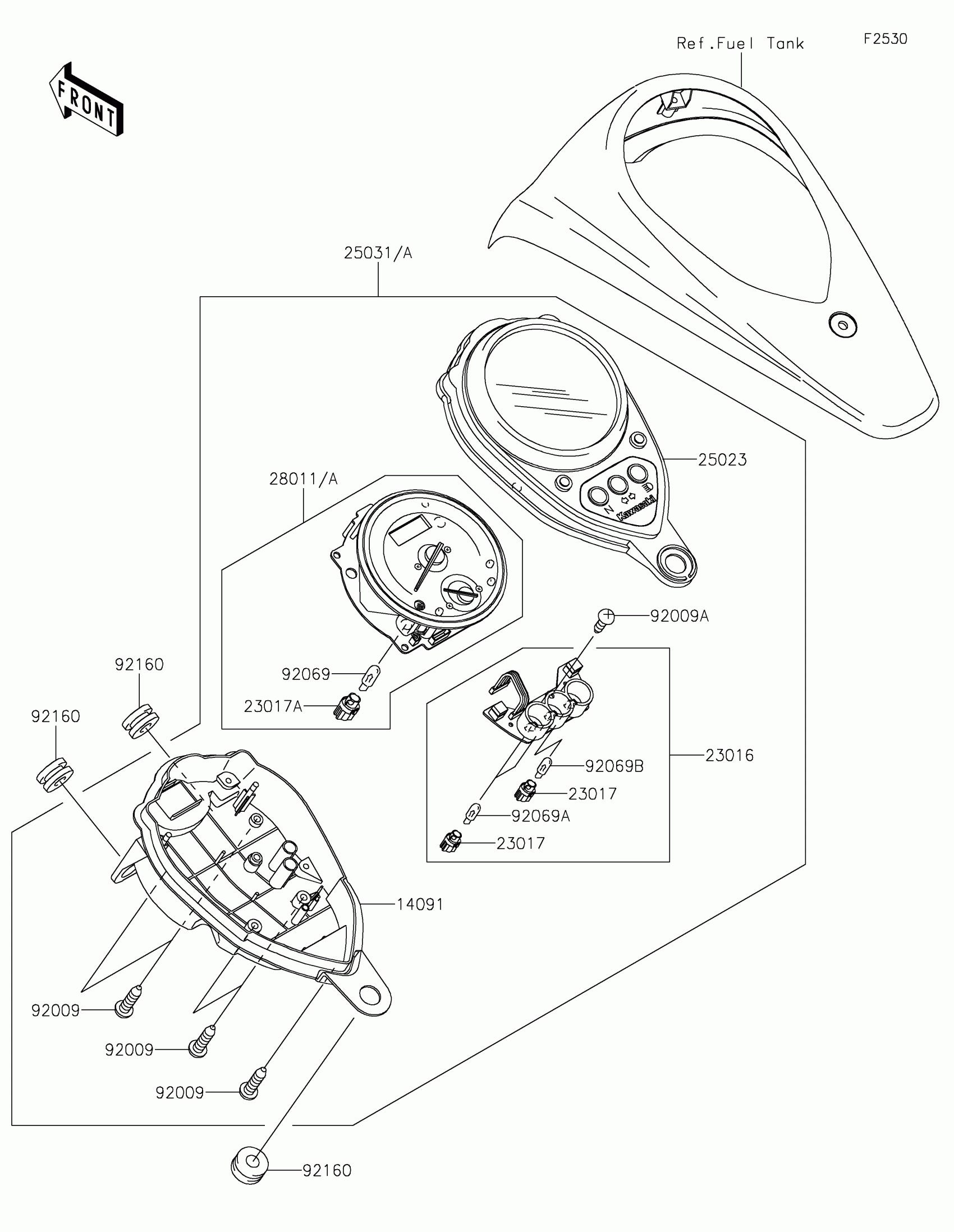

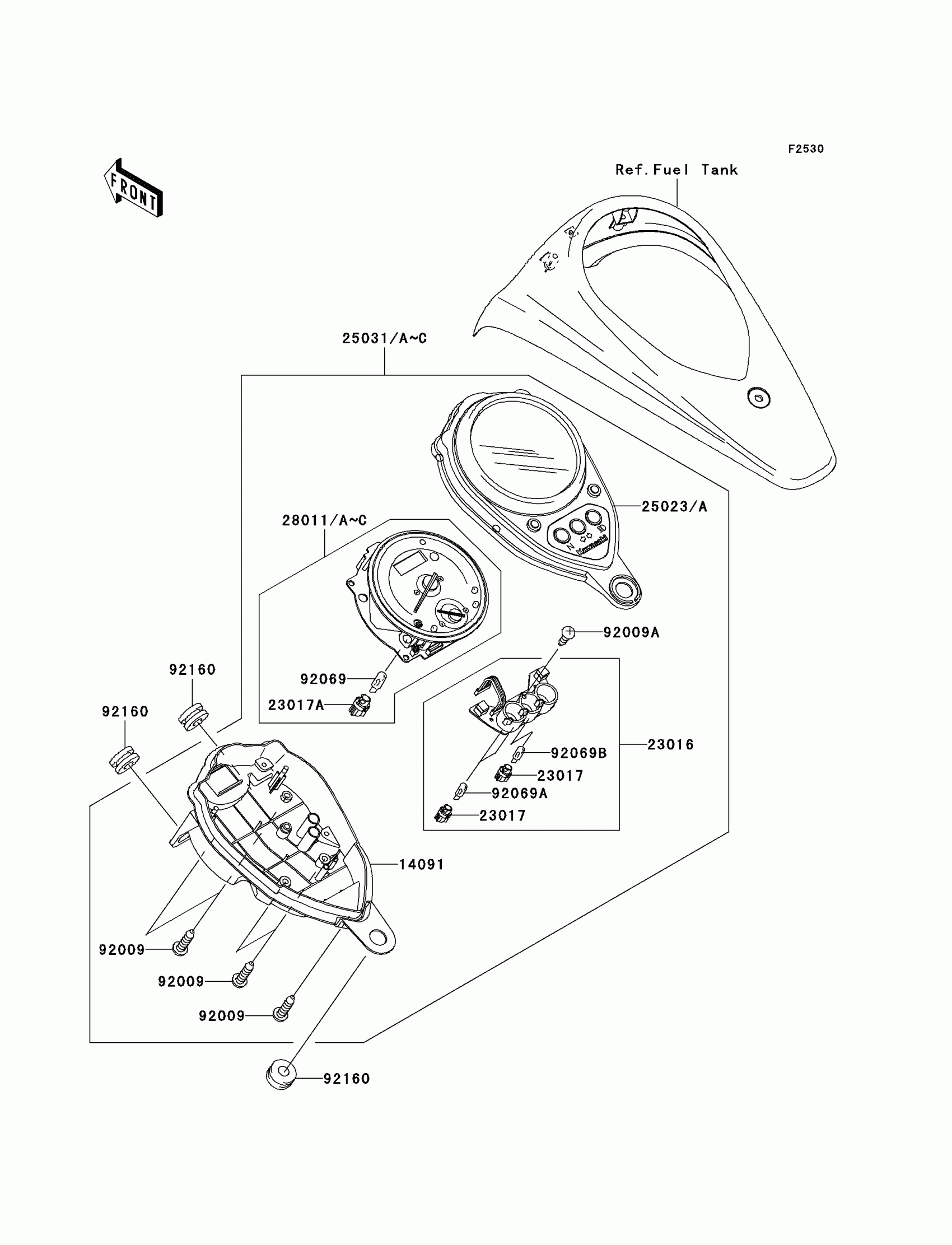

Kawasaki Vulcan® 900 Classic LT Meter(s) Diagram

Description

Price

14091

COVER,METER,LWR

14091-1215

$66.82

23016

LAMP-ASSY

23016-1186

$79.60

23017

SOCKET,WEDGE BASE,T-5

23017-1063

$3.71

23017A

SOCKET

23017-1064

$5.19

25023A

COVER-METER CASE,UPP

25023-0060

$167.23

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,TAPPING,4X14

92009-1503

$3.20

92069

BULB,14V 3W,T6.5

92069-1068

$3.81

92069A

BULB,12V 2W,T5

92069-1105

$4.07

92069B

BULB,12V 1.4W,T5

92069-1117

$3.95

92160

DAMPER

92160-1162

$3.81

25031B

METER-ASSY,MPH

25031-0324

$746.42

25031C

METER-ASSY,KPH

25031-0325

Unavailable

28011B

METER,SPEED&FUEL,MPH

28011-0149

$543.25

28011C

METER,SPEED&FUEL,KPH

28011-0150

Unavailable
