1989 Kawasaki Vulcan 750 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

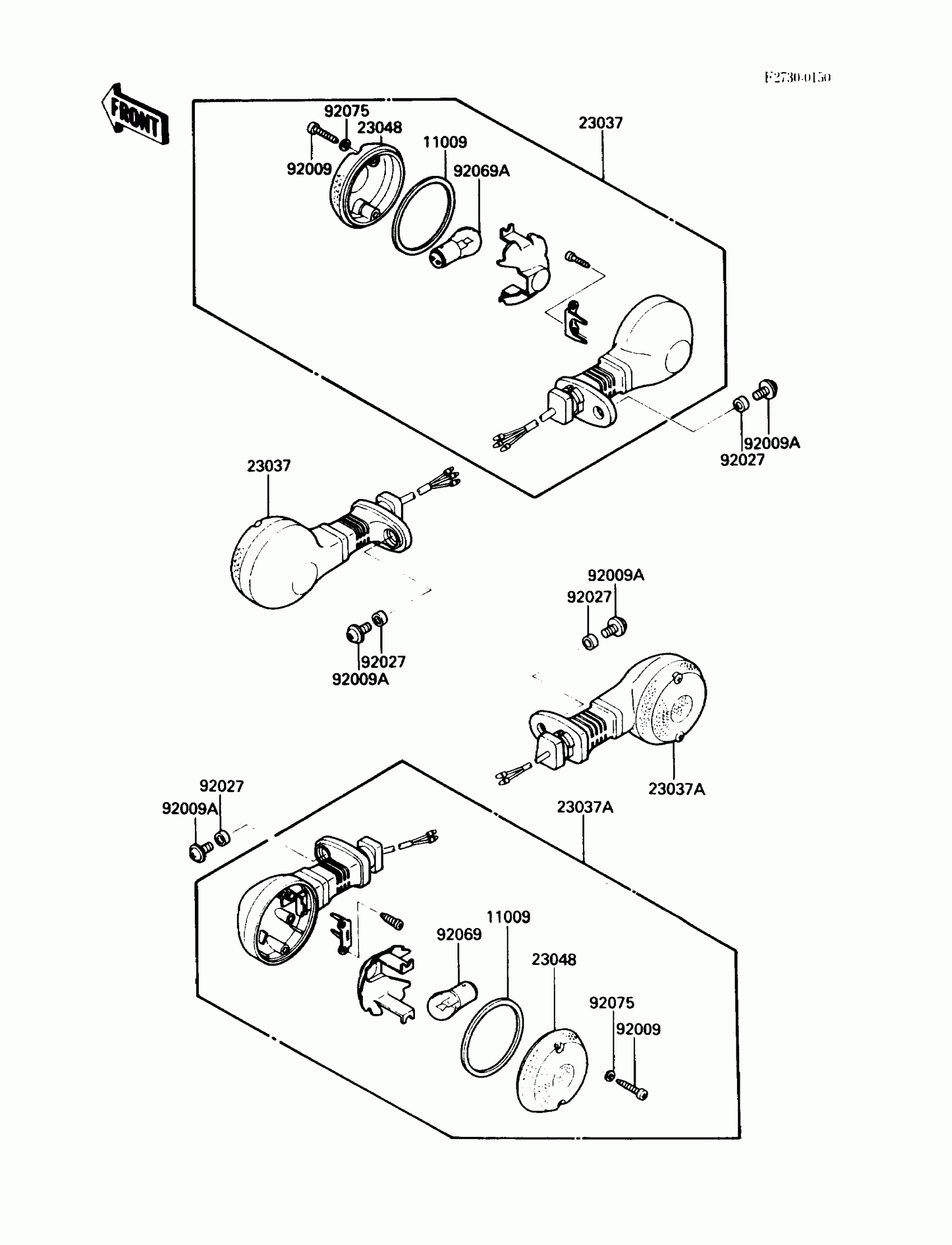

1989 Kawasaki Vulcan 750 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1413

1

$3.94

In stock

23037

LAMP-ASSY-SIGNAL,FR

23037-1214

1

$74.85

In stock

23037A

LAMP-ASSY-SIGNAL

23037-1220

1

$73.09

In stock

23048

LENS-SIGNAL LAMP,FR

23048-1066

1

$7.56

In stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92009A

SCREW,6X14

92009-1288

1
Out of stock

92027

COLLAR

92027-103

1

$2.78

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock

92075

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock
