1989 Kawasaki Vulcan 750 Generator Diagram

← All diagrams

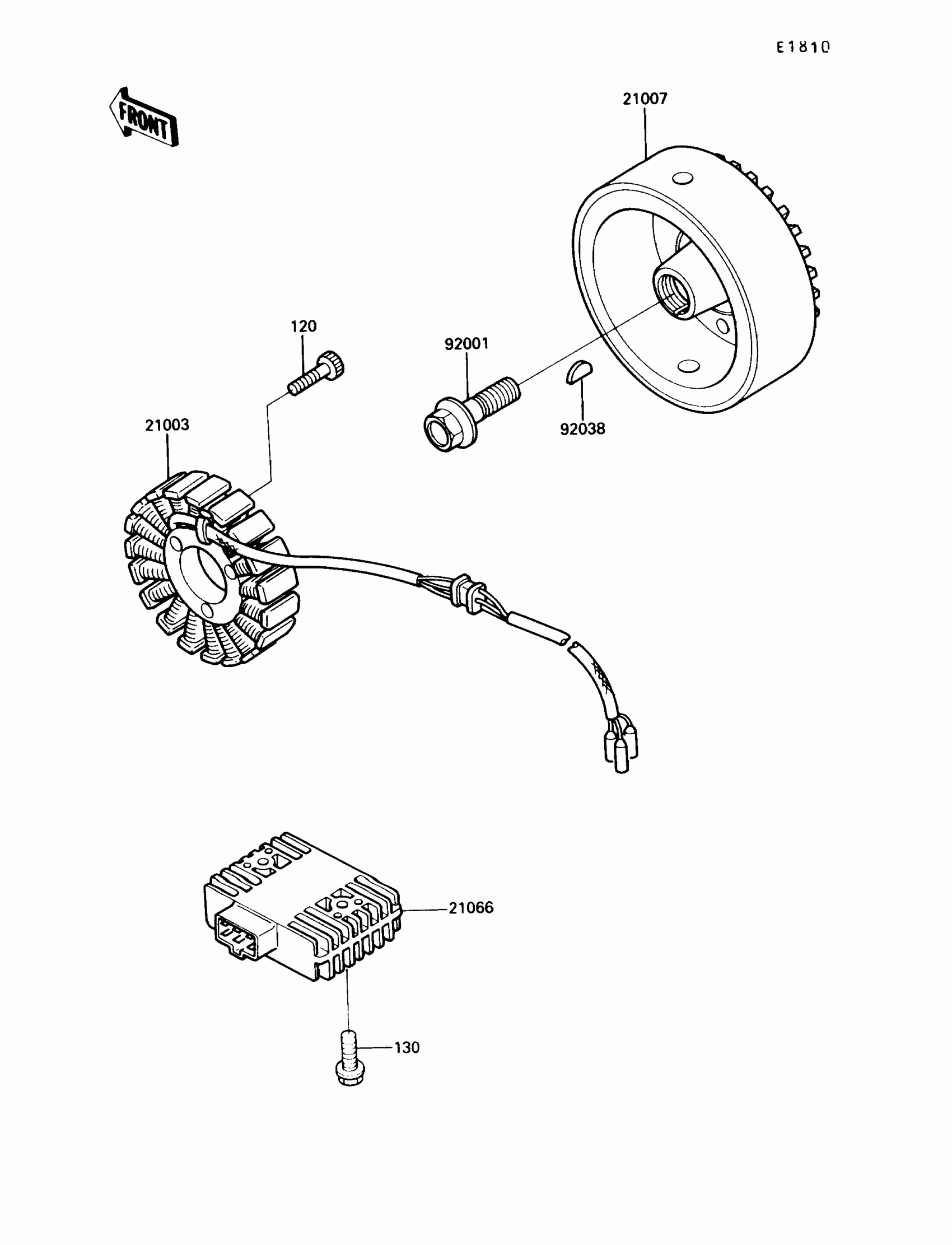

Find the part on the Generator diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1118

1
Out of stock

21007

ROTOR

21007-1127

1

$656.42

In stock

21066

REGULATOR-VOLTAGE

21066-1055

1

$245.39

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

120

BOLT-SOCKET,6X35

120P0635

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock
