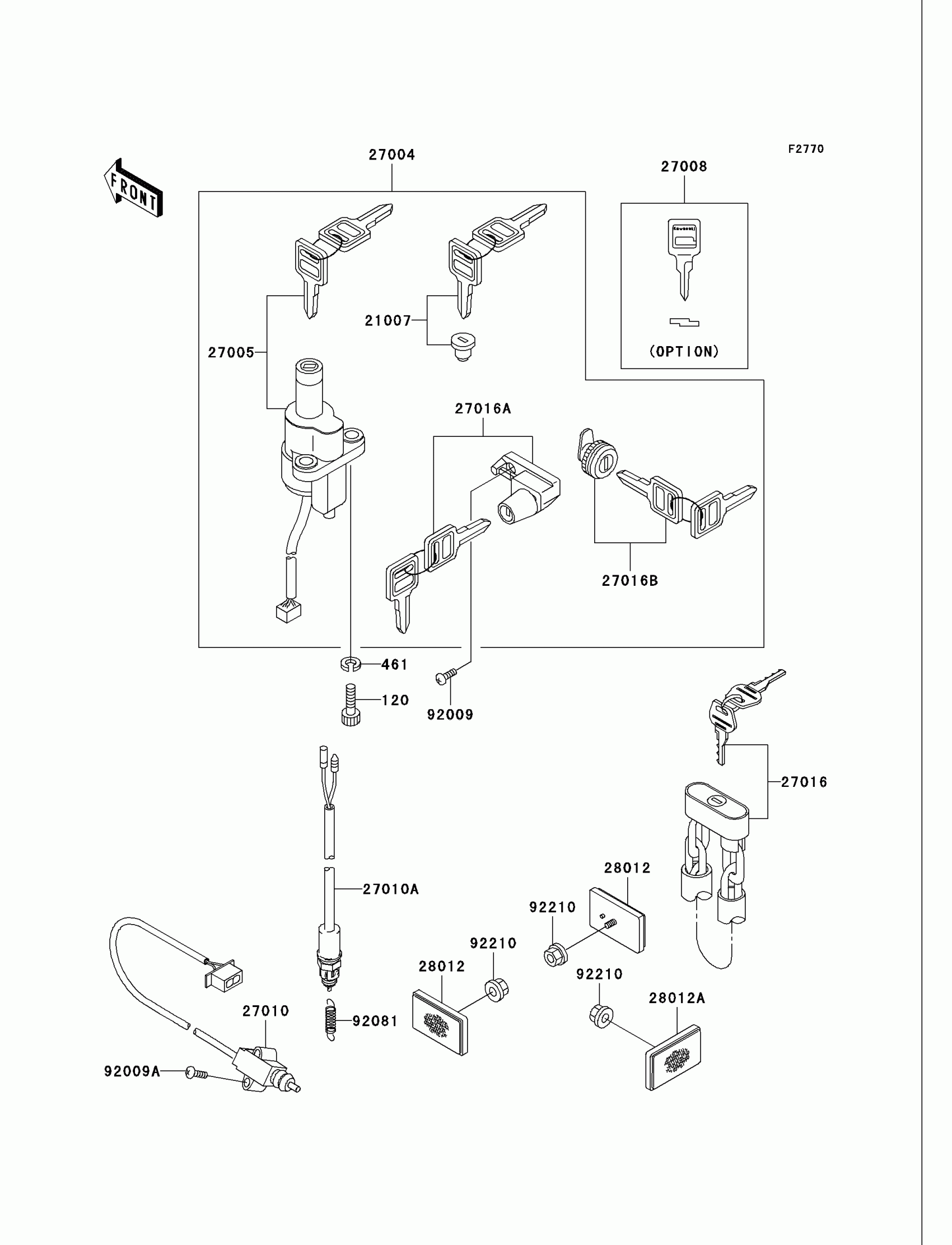

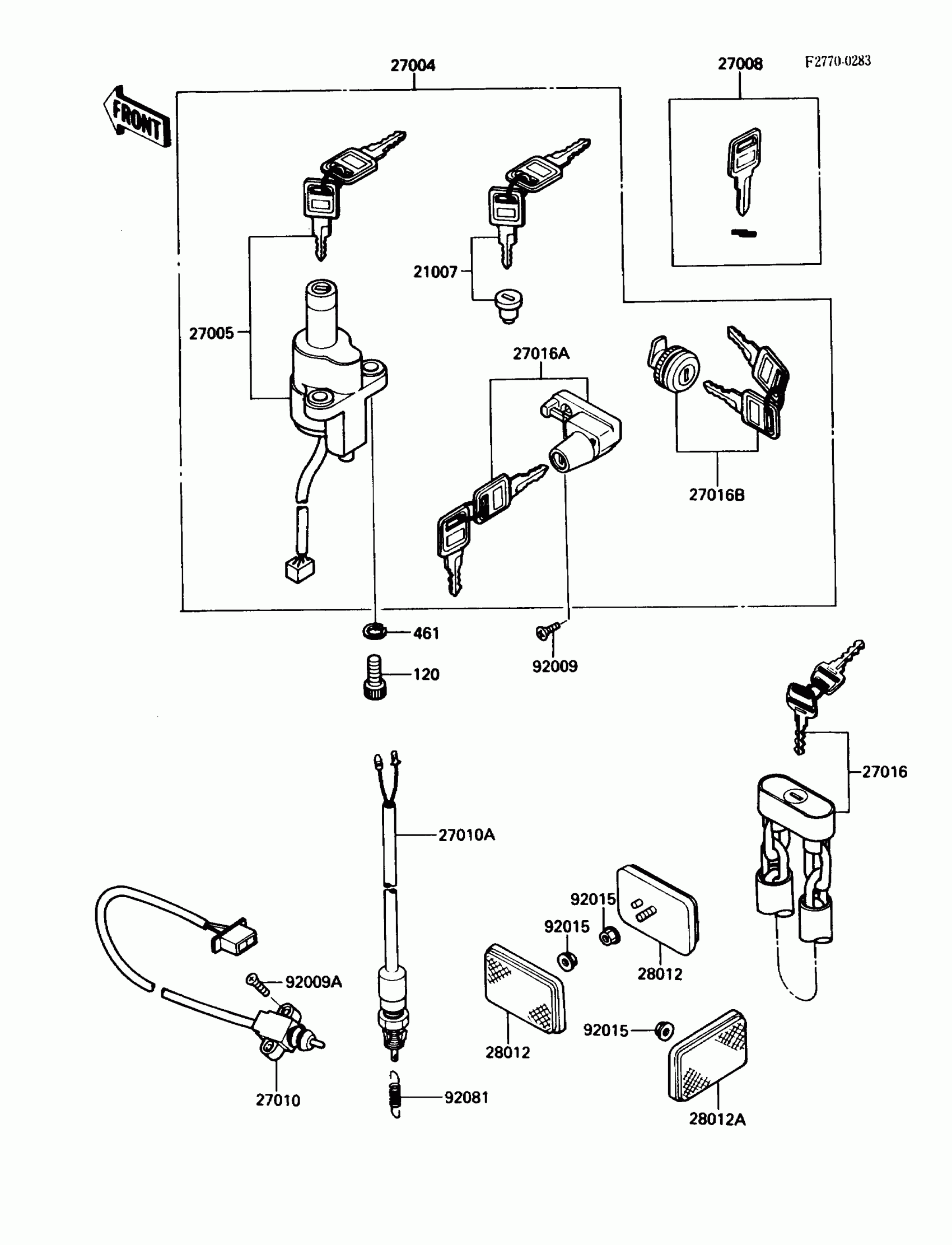

Find the part on the Ignition Switch/locks/reflectors diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,LOCK,TANK CAP

21007-5005

1

$101.48

In stock

27004

SWITCH-ASSY

27004-5270

1

$392.25

In stock

27005

1

$167.93

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,SIDE STAND

27010-1176

1
Out of stock

27010A

SWITCH,BRAKE LAMP

27010-1181

1

$27.71

In stock

27016

LOCK-ASSY,WHEEL

27016-1051

1

$134.03

In stock

27016A

LOCK-ASSY,HELMET

27016-5060

1

$106.07

In stock

27016B

LOCK-ASSY,BOX

27016-5081

1

$106.07

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1051

1

$24.63

In stock

92009

SCREW,5X18

92009-1305

1
Out of stock

92009A

SCREW,5X20

92009-1359

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92081

SPRING

92081-1544

1

$5.32

In stock

120

BOLT-SOCKET,8X22

120T0822

1
Out of stock

461

WASHER-SPRING

461L0800

1
Out of stock
