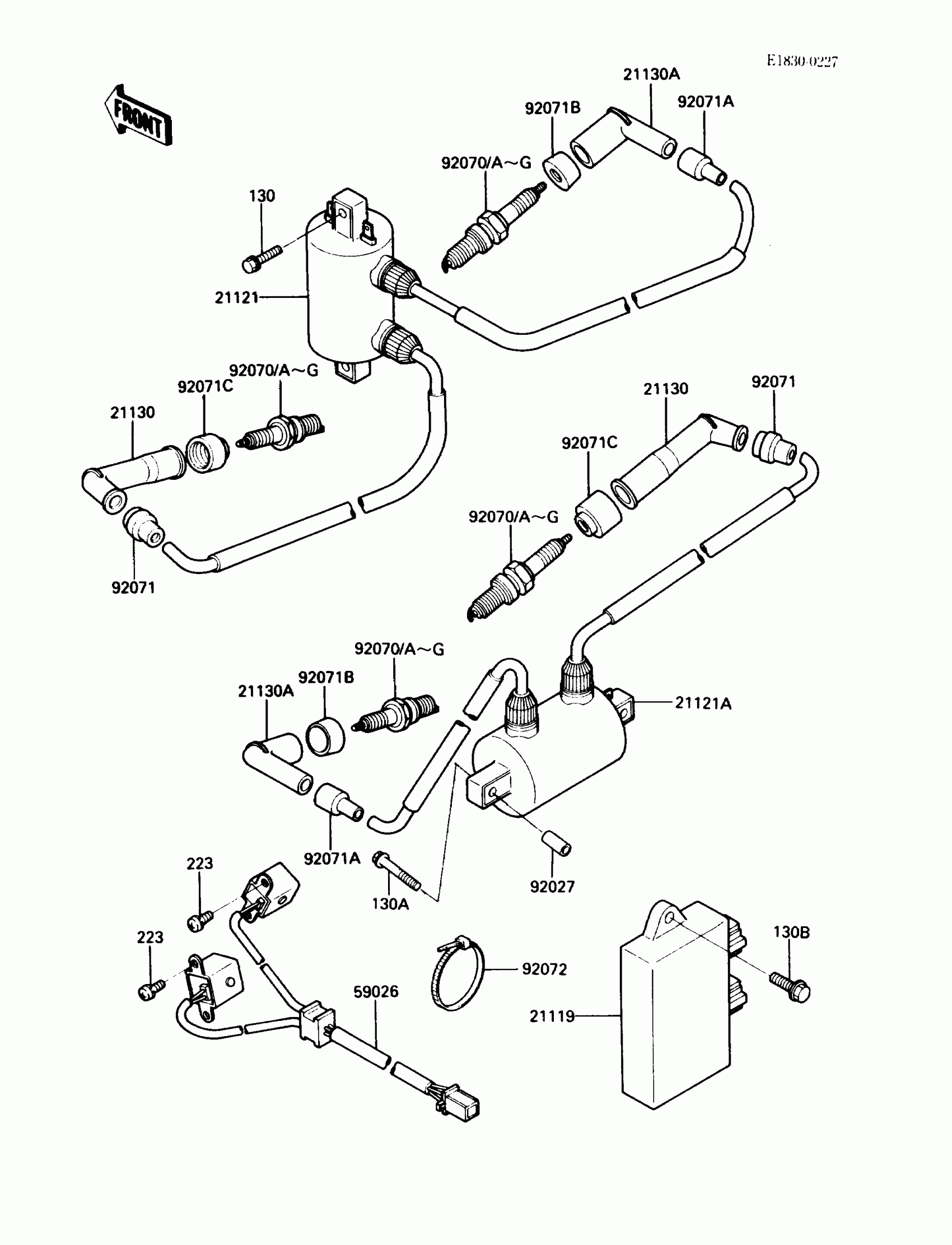

Find the part on the Ignition System diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1187

1

$789.64

In stock

21121

COIL-IGNITION,FR

21121-1124

1

$152.89

In stock

21121A

COIL-IGNITION,RR

21121-1125

1
Out of stock

21130

CAP-SPARK PLUG

21130-1002

1

$52.70

In stock

21130A

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

59026

COIL-PULSING

59026-1062

1
Out of stock

92027

COLLAR,6.8X10X20

92027-1856

1

$4.97

In stock

92070

1

$2.92

In stock

92070A

1

$2.92

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92070D

Not Available As Spare Part - Friction Washer

1
Out of stock

92070E

Not Available As Spare Part - Friction Washer

1
Out of stock

92070F

1

$2.74

In stock

92070G

1

$2.74

In stock

92071

1

$4.88

In stock

92071A

1

$3.39

In stock

92071B

1

$3.81

In stock

92071C

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

92072

BAND,LEAD WIRE

92072-1181

1

$5.14

In stock

130

BOLT-FLANGED,6X20

130D0620

1
Out of stock

130A

BOLT-FLANGED,6X40

130D0640

1
Out of stock

130B

BOLT,FLANGED,6X14

130G0614

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock
