1989 Kawasaki Vulcan 750 Meter Diagram

← All diagrams

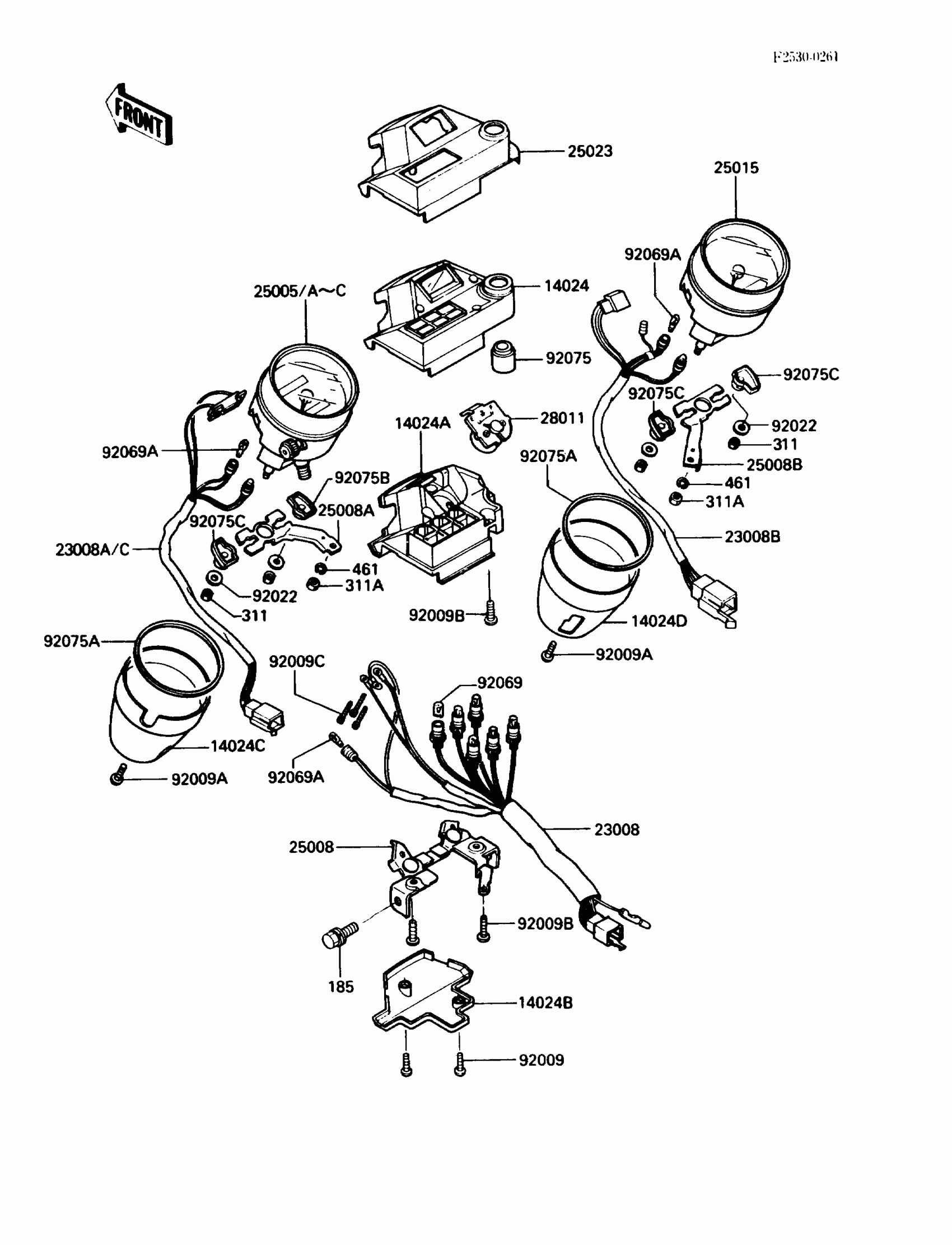

Find the part on the Meter diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,PILOT BOX,UPP

14025-1742

1

$81.38

In stock

14024A

1

$48.45

In stock

14024B

COVER,PILOT BOX,LWR

14025-1744

1

$20.08

In stock

14024C

COVER,SPEEDOMETER

14025-1745

1
Out of stock

14024D

COVER,TACHOMETER

14025-1746

1

$53.13

In stock

23008

1

$120.83

In stock

23008B

1

$51.79

In stock

23008C

1

$51.79

In stock

25005B

SPEEDOMETER,MPH

25005-1408

1

$365.59

In stock

25005B

SPEEDOMETER,MPH

25005-1408

1

$365.59

In stock

25005C

SPEEDOMETER,KPH

25005-1409

1
Out of stock

25008

1

$52.27

In stock

25008A

1

$30.56

In stock

25008B

1

$30.56

In stock

25015

1

$523.59

In stock

25023

1

$72.58

In stock

28011

METER,FUEL

28011-1071

1

$128.17

In stock

92009

SCREW,TAPPING,4X14

92009-1034

1
Out of stock

92009A

SCREW,TAPPING,4X16

92009-1063

1
Out of stock

92009B

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009C

SCREW,3X22

92009-1293

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

DAMPER,TRIP METER

92075-1286

1

$9.29

In stock

92075A

DAMPER,METER

92075-1712

1

$7.90

In stock

92075B

DAMPER,METER

92075-1713

1

$12.20

In stock

92075C

DAMPER,METER

92075-1714

1

$12.71

In stock

185

1

$4.10

In stock

311

NUT-HEX

311B0500

1

$0.51

In stock

311A

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
