1989 Kawasaki Vulcan 750 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

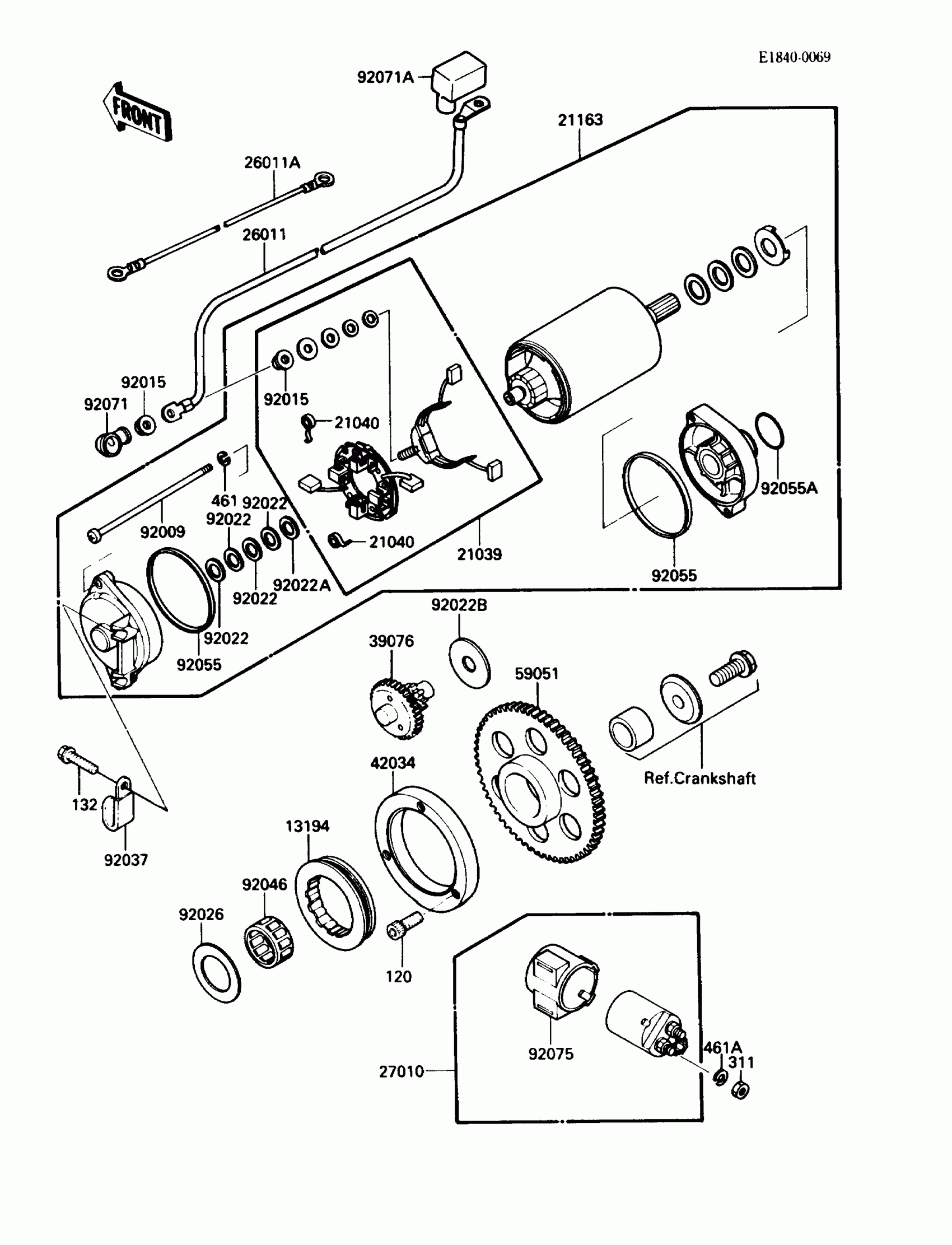

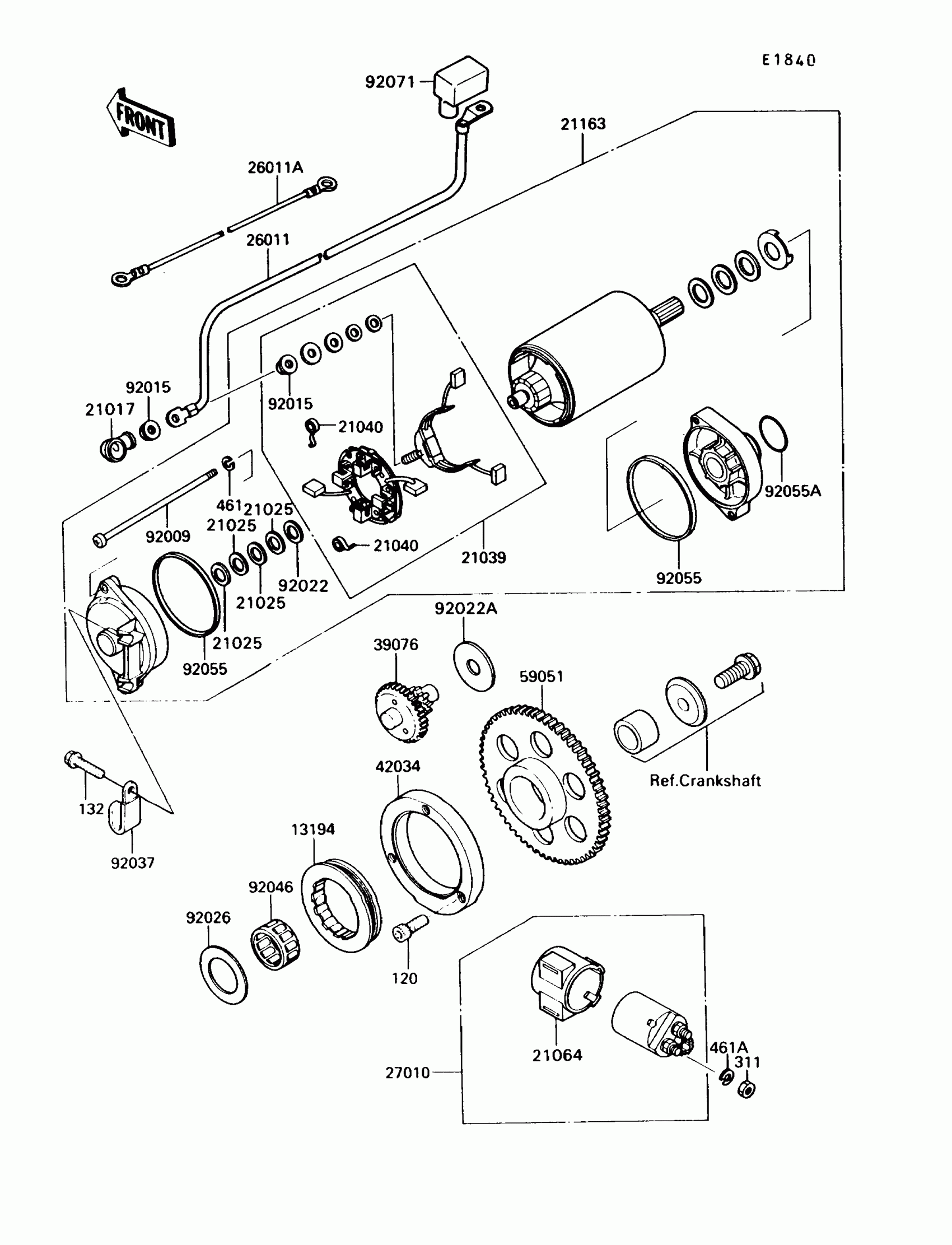

1989 Kawasaki Vulcan 750 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13194

CLUTCH-ONEWAY

13194-1062

1
Out of stock

21039

BRUSH,CARBON

21039-1053

1

$96.05

In stock

21040

SPRING-BRUSH

21040-1003

1

$9.12

In stock

21163

STARTER-ELECTRIC

21163-1068

1

$694.78

In stock

26011

1

$77.21

In stock

26011A

1

$13.88

In stock

27010

SWITCH,MAGNETIC

27010-1209

1
Out of stock

39076

1

$163.55

In stock

42034

COUPLING

42034-1081

1

$123.69

In stock

59051

GEAR-SPUR,STARTER,63T

59051-1130

1
Out of stock

92009

SCREW

92009-1369

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

92022A

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022B

WASHER,12.3X38X2.0

92022-1664

1

$7.25

In stock

92026

1

$9.58

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92046

BEARING-NEEDLE

92046-1137

1
Out of stock

92055

RING-O,64MM

92055-1086

1

$9.68

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92071

1

$7.48

In stock

92071A

GROMMET,TERMINAL

92071-1130

1

$10.85

In stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

120

BOLT-SOCKET,8X20

120Q0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
