1989 Kawasaki Vulcan 750 Chassis Electrical Equipment Diagram

← All diagrams

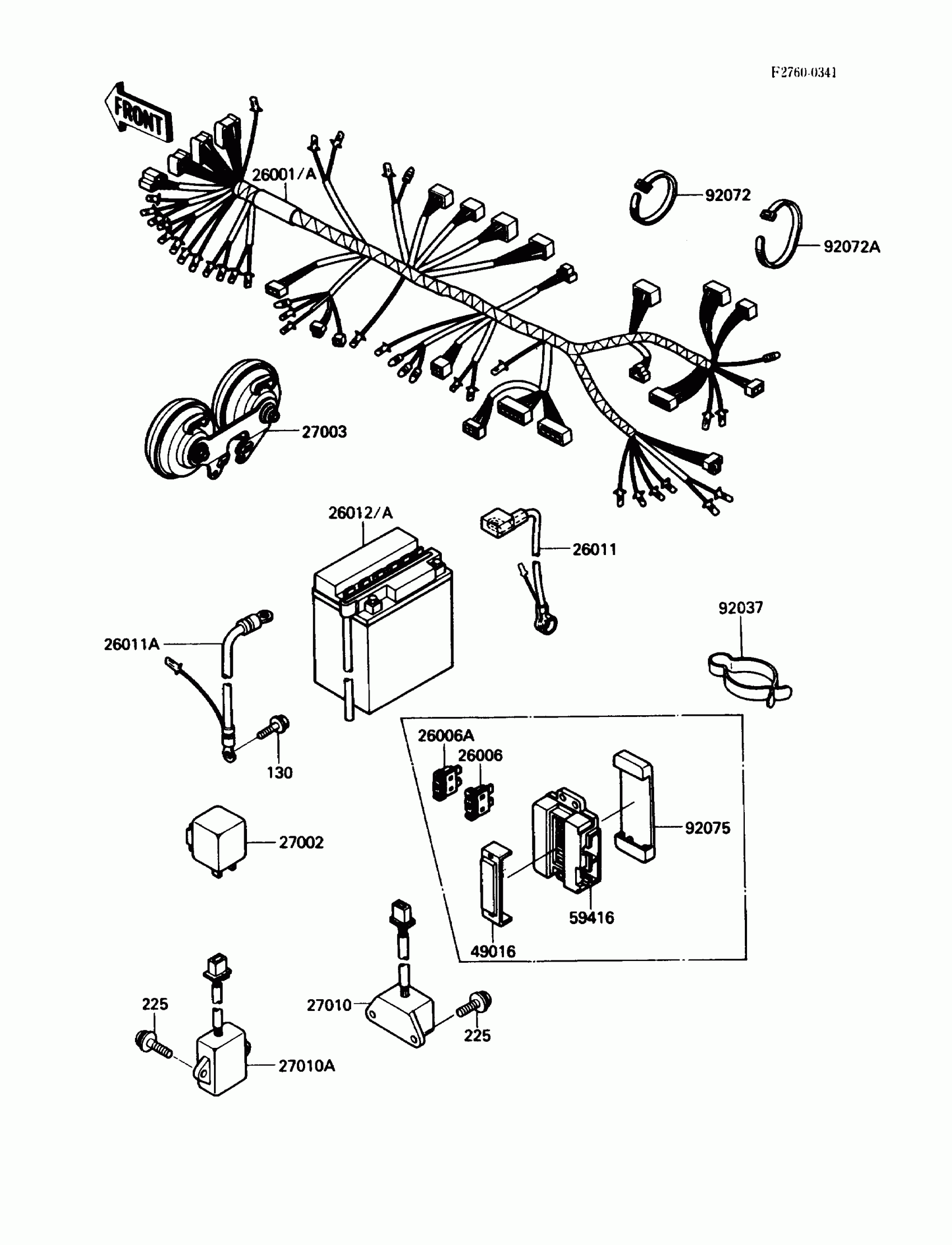

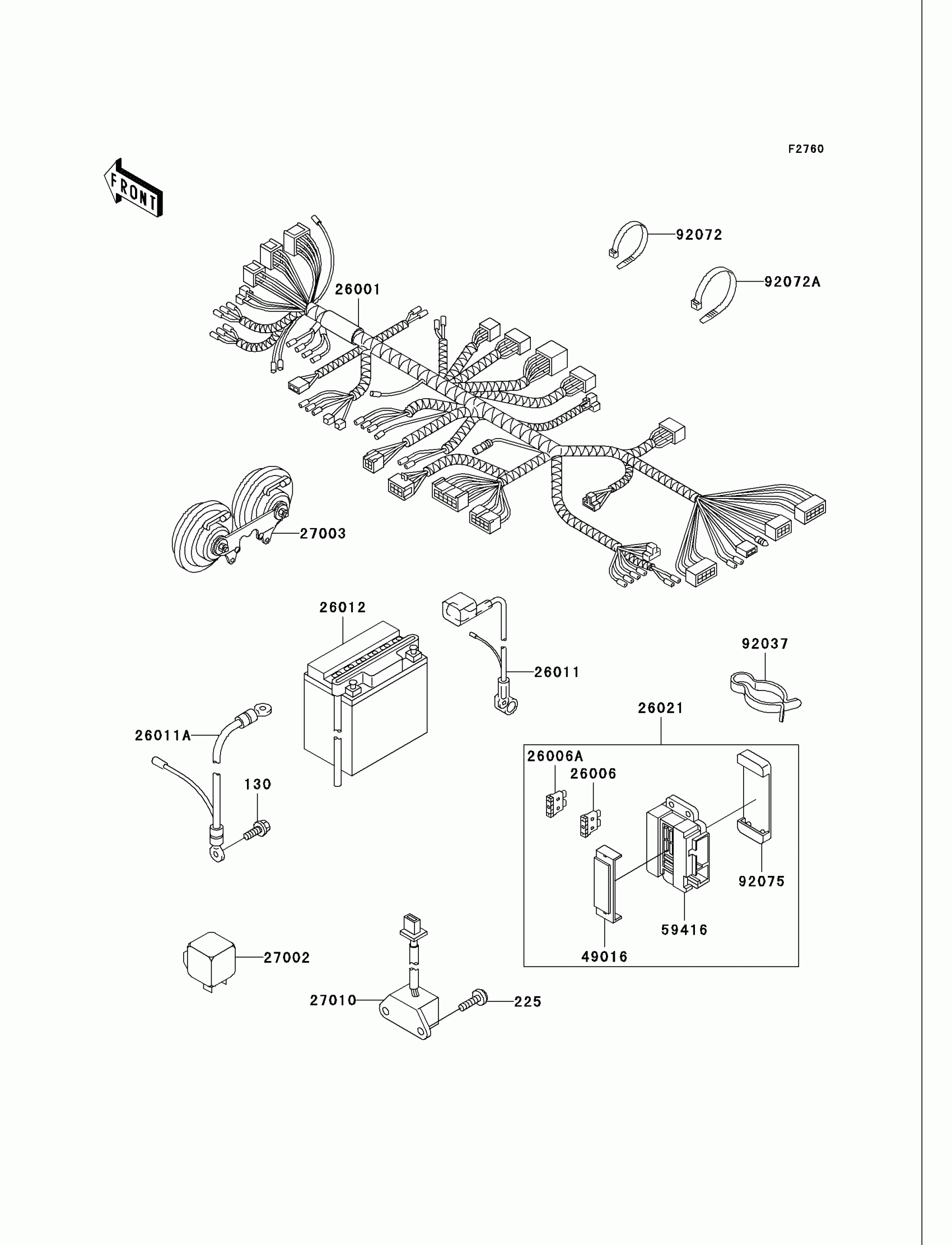

Find the part on the Chassis Electrical Equipment diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001A

HARNESS,MAIN

26001-1961

1

$379.94

In stock

26006

1

$4.39

In stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26011

1

$38.93

In stock

26011A

1

$32.75

In stock

26012

1

$84.21

In stock

26012A

1

$84.21

In stock

27002

1

$96.83

In stock

27003

HORN,DOUBLE

27003-1218

1

$221.24

In stock

27010

1

$228.55

In stock

49016

COVER-SEAL,FUSE

49016-1106

1

$9.10

In stock

59416

1

$193.84

In stock

92037

CLAMP

92037-093

1

$10.92

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=186

92072-056

1

$3.97

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
