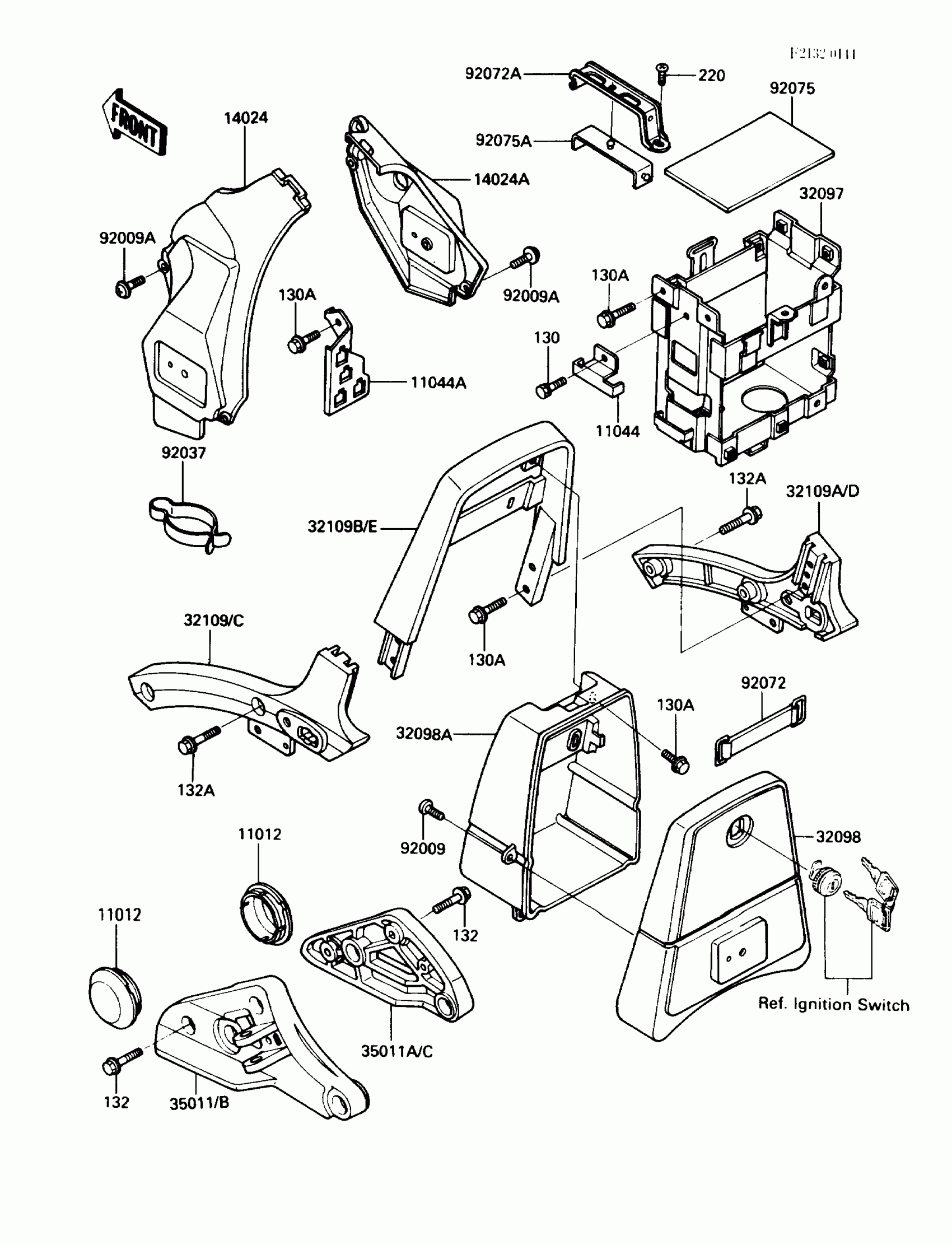

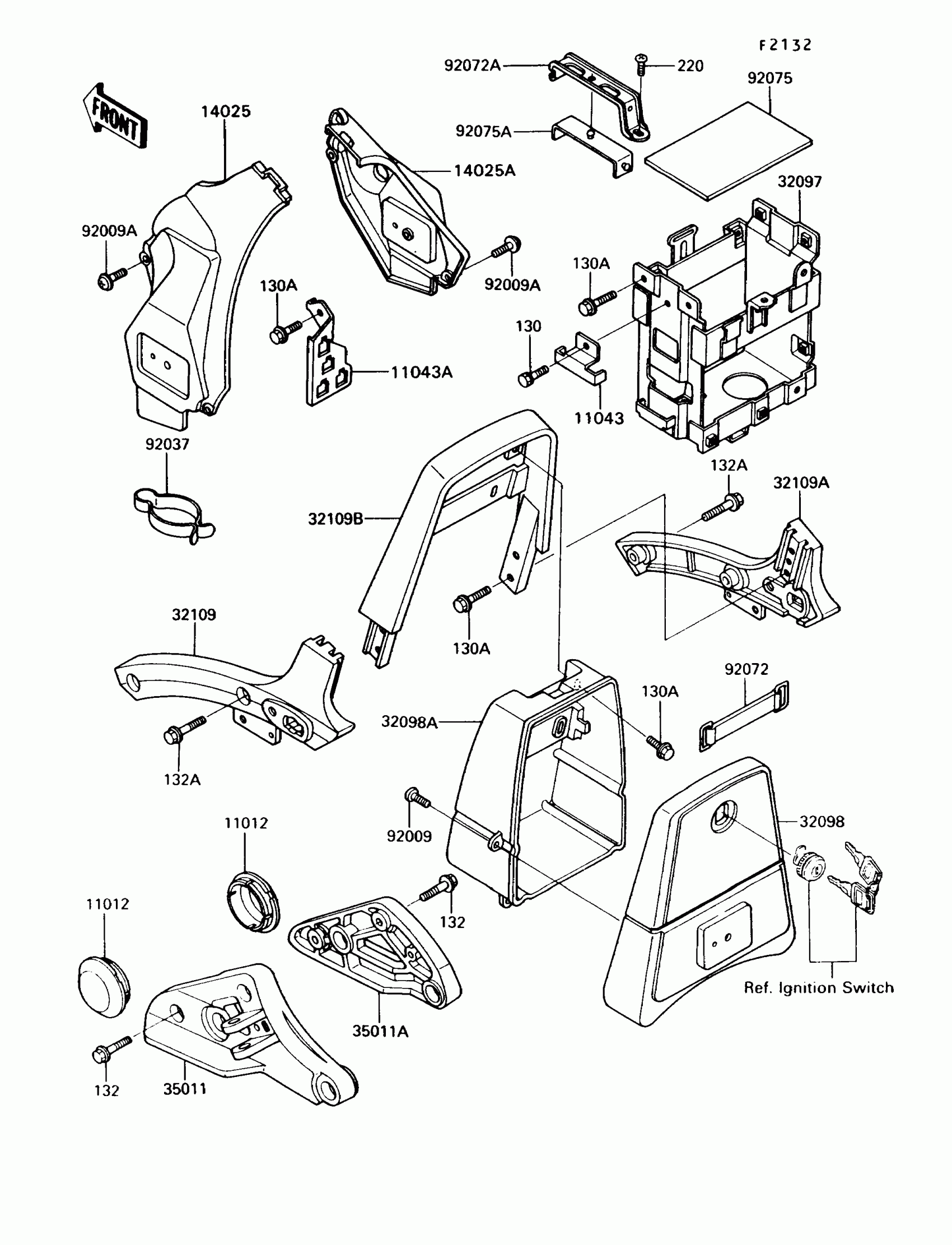

Kawasaki Vulcan 750 Battery Case Diagram

#

Description
Price

11012

CAP,SWING ARM

11012-1433

$17.72

11044

BRACKET,JOINT BOX

11043-1934

$9.56

11044A

BRACKET,HARNESS

11043-1935

$11.85

14024

COVER,FUEL TANK,LH

14025-1994

$54.08

14024A

COVER,FUEL TANK,RH

14025-1995

$44.94

32097

CASE-BATTERY

32097-1121

$132.74

32098

CASE-TOOL

32098-1057

$65.72

32098A

CASE-TOOL

32098-1058

$50.08

32109C

GRIP-FRAME,LWR,LH

32109-1131

$219.32

32109D

GRIP-FRAME,LWR,RH

32109-1132

$219.32

32109E

GRIP-FRAME,UPP

32109-1133

$253.58

35011B

STAY,MUFFLER,LH

35011-1263

$376.00

35011C

STAY,MUFFLER,RH

35011-1264

$376.00

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92009A

SCREW,6X14

92009-1288

$2.99

92037

CLAMP

92037-093

$8.65

92072

BAND,L=82

92072-053

$11.81

92072A

BAND,BATTERY

92072-1177

$10.24

92075

DAMPER

92075-1076

$6.75

92075A

DAMPER,BATTERY BAND

92075-1371

$11.02

130

BOLT-FLANGED,6X8

130B0608

Unavailable

130A

BOLT-FLANGED

130D0612

Unavailable

132

BOLT-FLANGED-SMALL,8X30

132E0830

$5.07

132A

BOLT-FLANGED-SMALL,8X35

132E0835

$4.18

220

SCREW PAN HEAD 6X12

220B0612

Unavailable
