1989 Kawasaki Vulcan 750 Taillight Diagram

← All diagrams

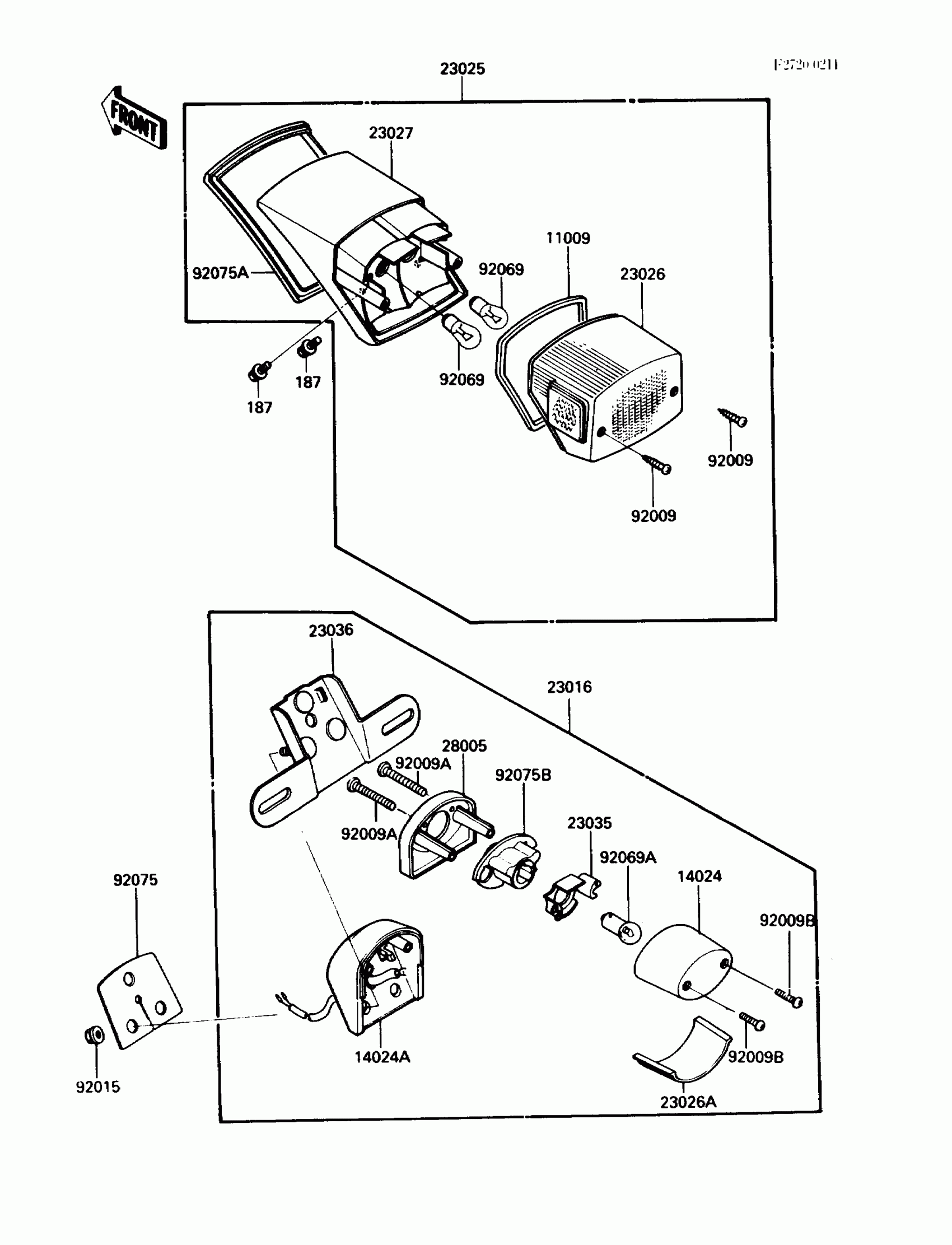

Find the part on the Taillight diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1496

1

$16.31

In stock

14024

COVER,LICENSE LAMP

14025-1725

1
Out of stock

14024A

COVER,LICENSE LAMP

14025-1728

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-1061

1

$193.50

In stock

23025

LAMP-TAIL

23025-1116

1

$256.24

In stock

23026

LENS,TAIL LAMP

23026-1063

1

$48.45

In stock

23026A

LENS,LICENSE LAMP

23026-1064

1

$24.51

In stock

23027

BODY-COMP-TAIL LAMP

23027-1060

1

$156.78

In stock

23035

REFLECTOR-LAMP,LICENSE

23035-1060

1
Out of stock

23036

BRACKET-TAIL LAMP

23036-1104

1

$81.32

In stock

28005

BODY-LAMP,LICENSE

28005-1051

1

$25.64

In stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92009A

SCREW,TAPPING,5X40

92009-1263

1
Out of stock

92009B

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,LICENSE LAMP

92075-1676

1

$9.56

In stock

92075A

DAMPER,TAIL LAMP

92075-1692

1

$30.52

In stock

92075B

DAMPER,LICENSE LAMP

92075-1694

1

$23.12

In stock

187

BOLT-UPSET-WSP,6X14

187D0614

1
Out of stock
