2000 Kawasaki Vulcan Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

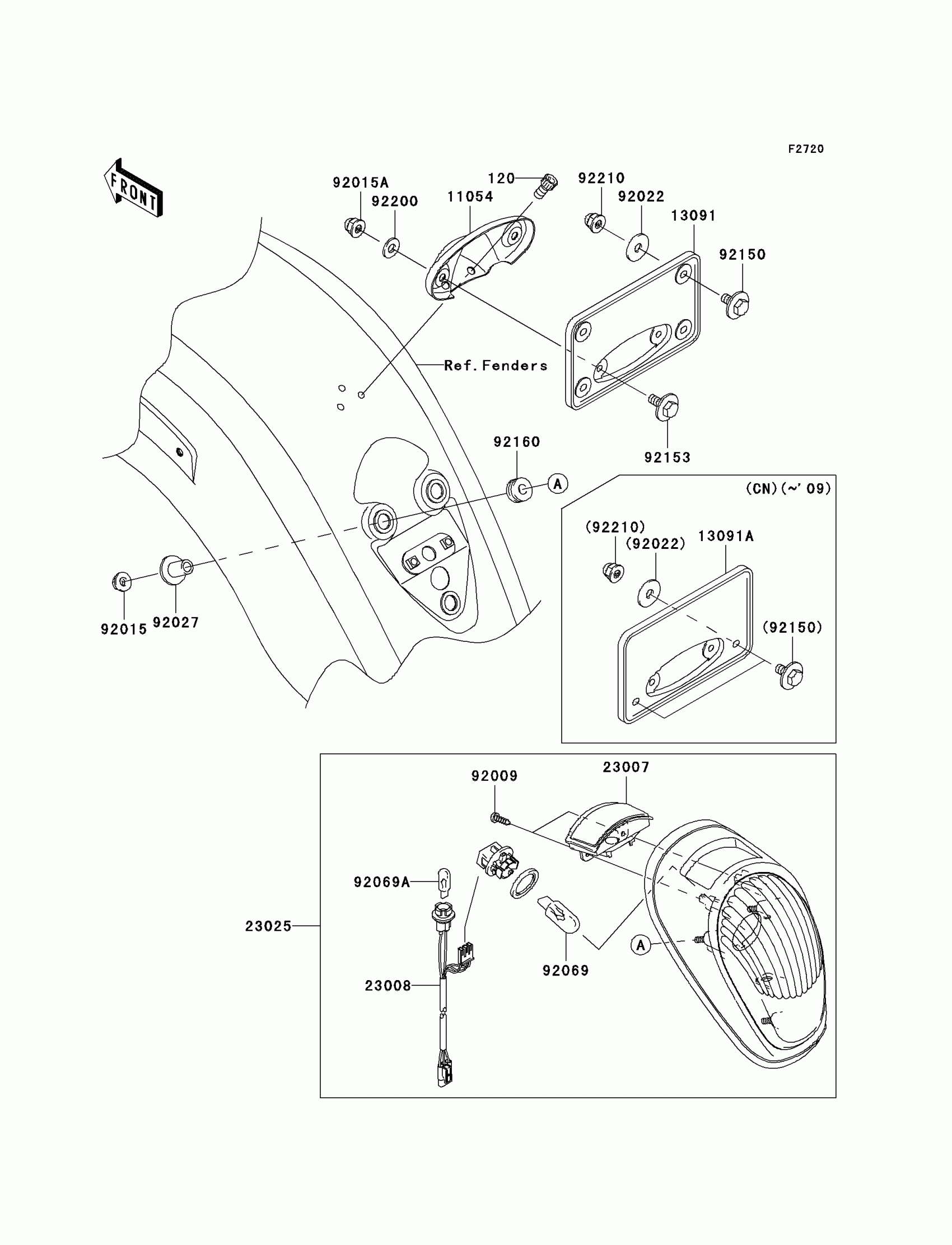

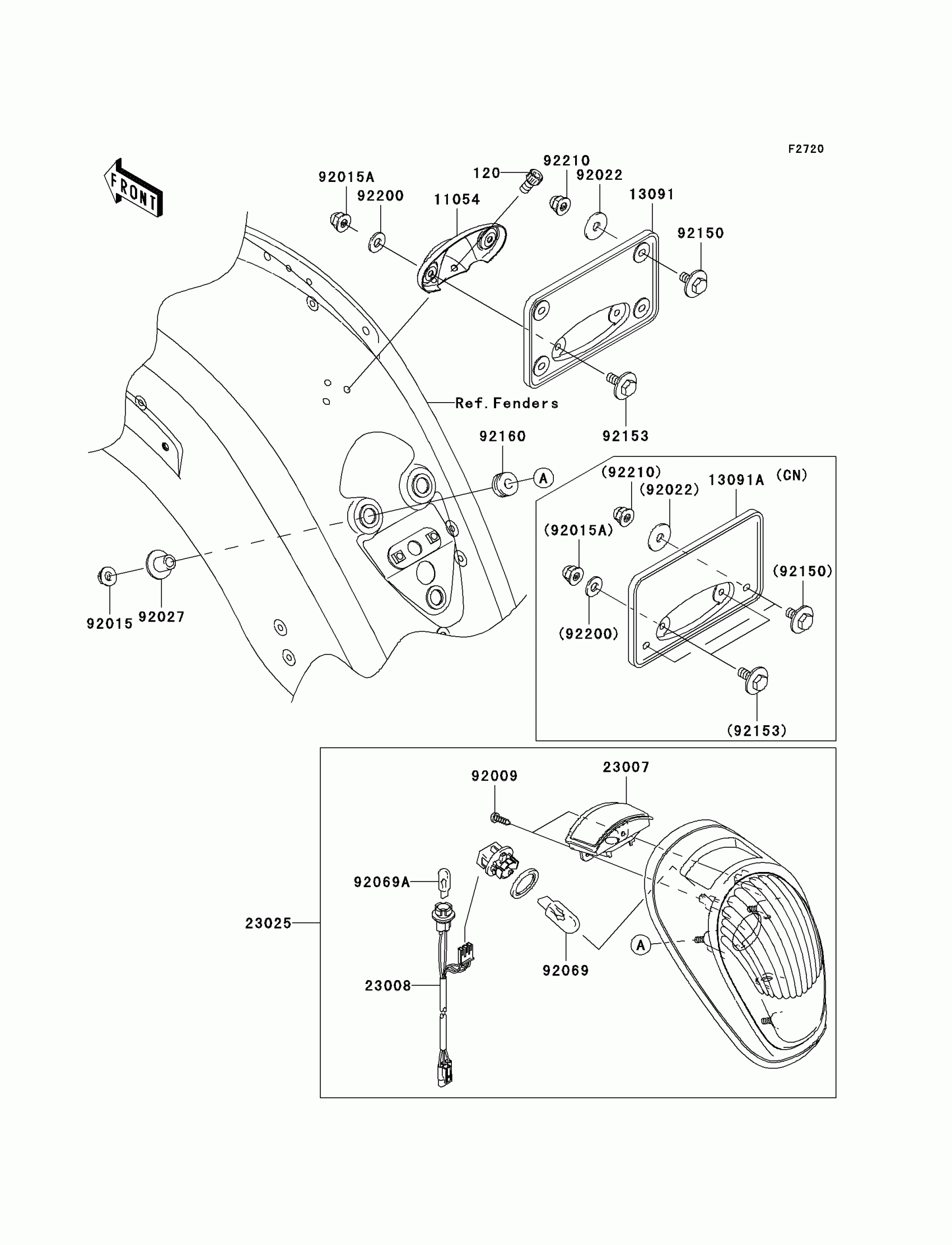

2000 Kawasaki Vulcan Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120W0612

1
Out of stock

11054

BRACKET,LICENSE

11054-0032

1

$52.85

In stock

23007

LENS-COMP,LICENSE

23007-0020

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-0017

1
Out of stock

23025

LAMP-TAIL

23025-0001

1
Out of stock

92009

SCREW,TAPPING,4X12

92009-1381

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,CAP,6MM

92015-1385

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92069

BULB,12V 21/5W

92069-0004

1
Out of stock

92069A

BULB,12V 5W

92069-1016

1
Out of stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock

13091

HOLDER,LICENSE PLATE

13091-1500

1
Out of stock

13091A

HOLDER,LICENSE PLATE

13091-1952

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock
