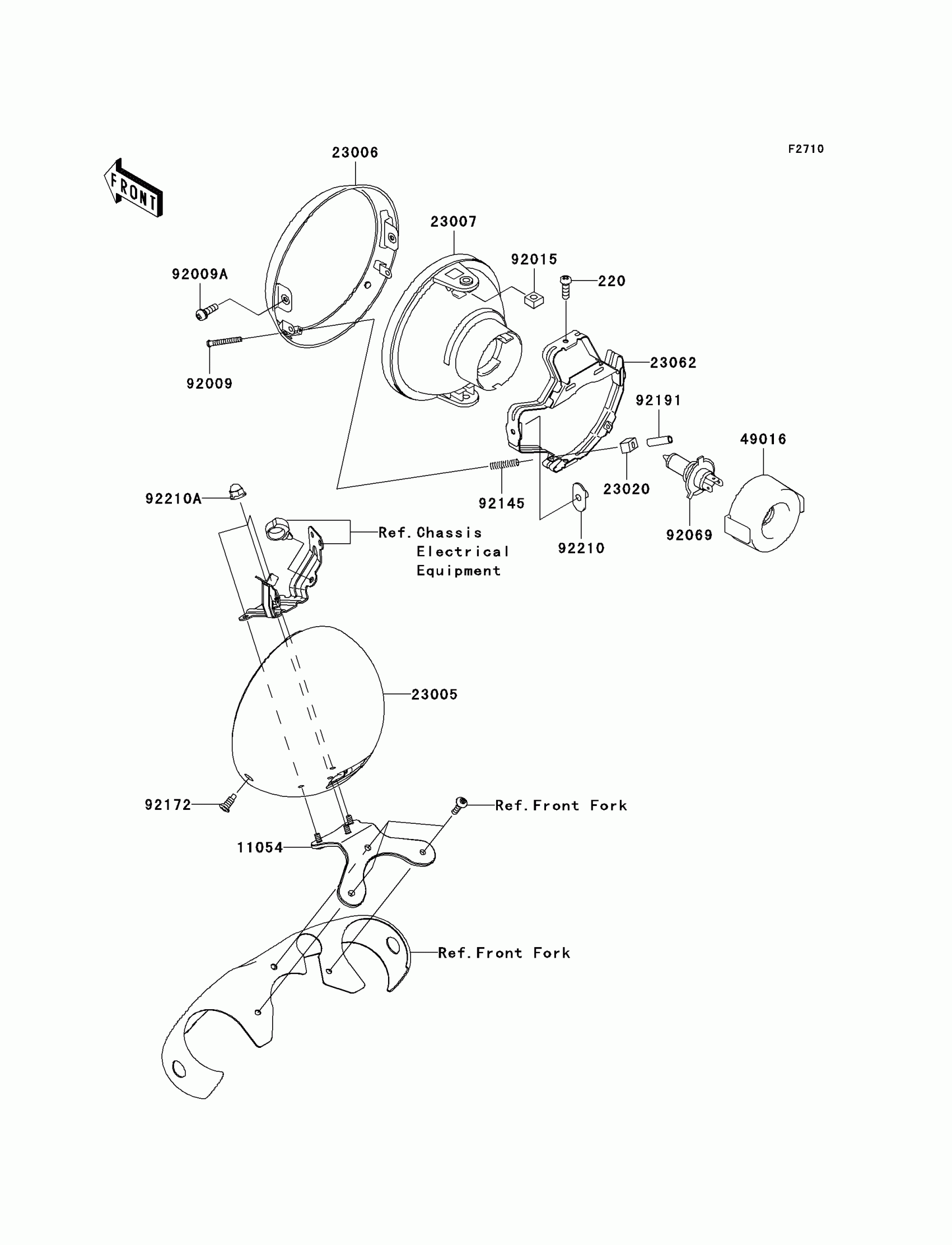

Kawasaki Vulcan 2000 Headlight(s) Diagram

Description

Price

220

SCREW-PAN-CROSS,5X16

220D0516

Unavailable

11054

BRACKET,HEAD LAMP BODY

11054-0108

$42.42

23005

BODY-COMP-HEAD LAMP

23005-0013

$459.18

23006

RIM-LAMP

23006-1081

$75.94

23007

LENS-COMP,HEAD LAMP

23007-1396

$131.47

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$51.45

49016

COVER-SEAL,SOCKET

49016-1203

$11.61

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.17

92009A

SCREW,5X16

92009-1879

$0.86

92015

NUT,5MM

92015-1157

$4.32

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.39

92172

SCREW,5X14

92172-0145

$1.54

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,SPECIAL,5MM

92210-1060

$2.03

92210A

NUT,CAP,6MM

92210-1252

Unavailable
