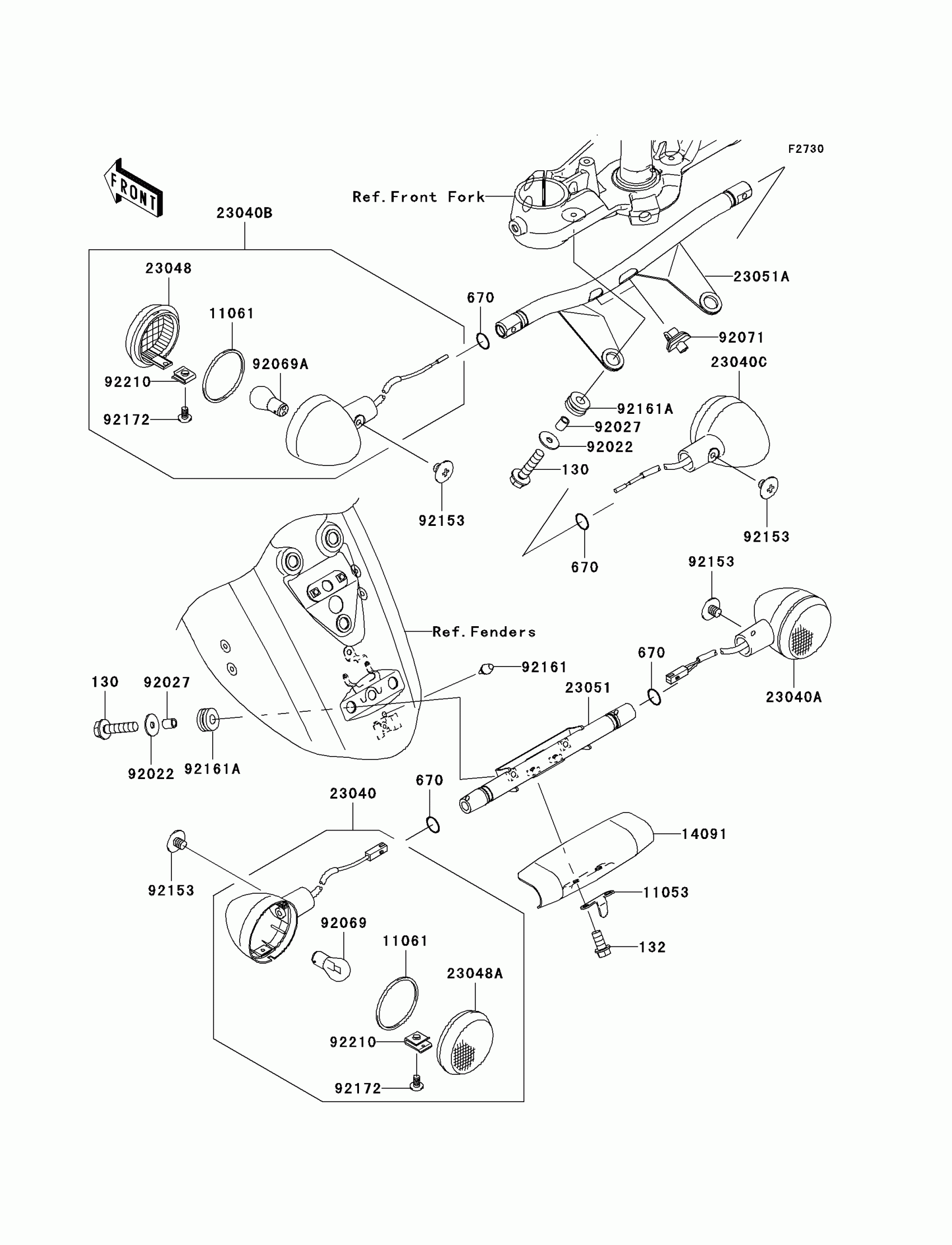

Kawasaki Vulcan 2000 Turn Signals Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130L0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

670

O RING,16MM

670B2016

$1.04

11053

BRACKET,REAR SIGNAL LAMP

11053-0929

$7.88

11061

GASKET,SIGNAL LAMP

11061-0005

$5.13

14091

COVER,REAR SIGNAL LAMP

14091-1572

$75.15

23040

LAMP-SIGNAL,RR,LH

23040-0036

$78.41

23040A

LAMP-SIGNAL,RR,RH

23040-0037

$78.41

23040B

LAMP-SIGNAL,FR,LH

23040-0061

Unavailable

23040C

LAMP-SIGNAL,FR,RH

23040-0062

Unavailable

23048

LENS-SIGNAL LAMP,FR

23048-0001

$8.05

23048A

LENS-SIGNAL LAMP,RR

23048-0002

$8.05

23051

BRACKET-SIGNAL LAMP,RR

23051-0002

$187.53

23051A

BRACKET-SIGNAL LAMP,FR

23051-0014

$183.65

92022

WASHER,7X24X1.6

92022-1160

$2.99

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

Not Available As Spare Part - Friction Washer

Unavailable

92069A

BULB,12V 21/5W

92069-1084

$5.61

92071

GROMMET,SIGNAL LAMP

92071-0007

$4.85

92153

BOLT,6MM

92153-0396

$3.55

92161

DAMPER

92161-0091

$3.95

92161A

DAMPER

92161-0163

$4.39

92172

SCREW,4X8

92172-0146

$2.37

92210

NUT,4MM

92210-0155

$3.05
