2000 Kawasaki Vulcan Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

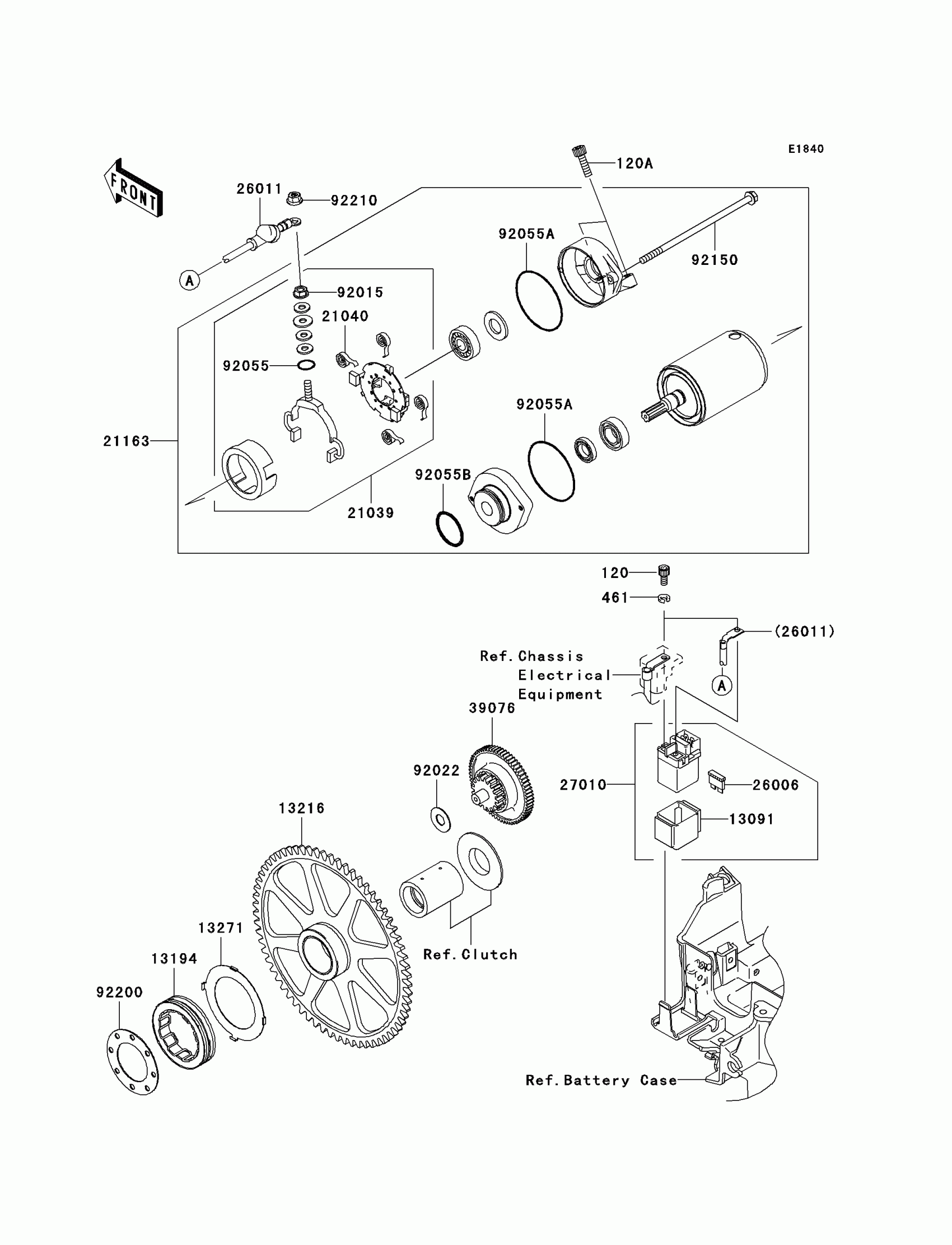

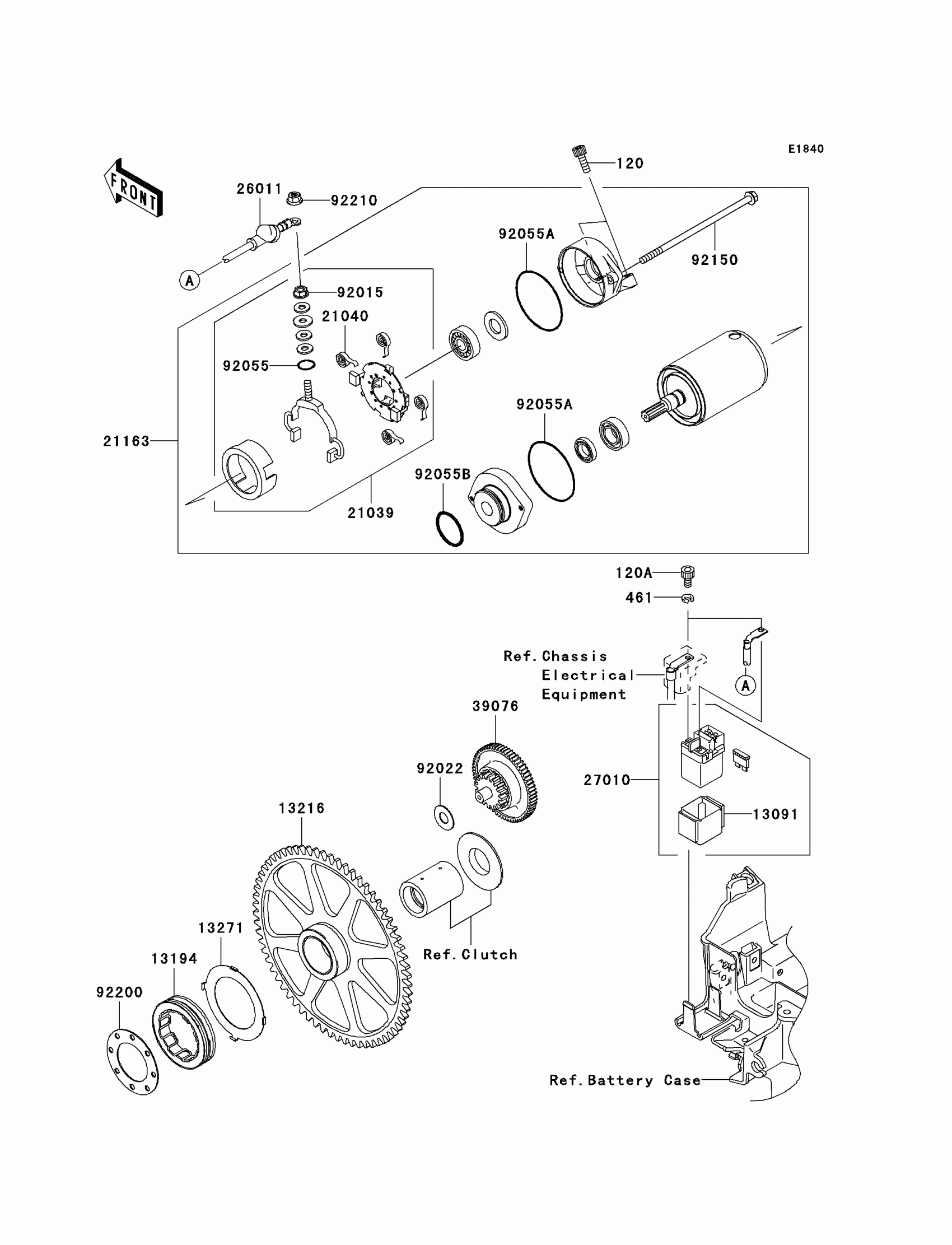

2000 Kawasaki Vulcan Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120R0622

1
Out of stock

120A

BOLT-SOCKET,5X10

120S0510

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

13091

1

$11.90

In stock

13194

CLUTCH-ONEWAY

13194-0001

1
Out of stock

13216

GEAR-COMP

13216-0010

1
Out of stock

13271

PLATE

13271-0037

1

$11.73

In stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-0001

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-0044

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1327

1
Out of stock

39076

1

$281.25

In stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,12X27.5X1.0

92022-1852

1
Out of stock

92055

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055A

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92055B

RING-O,37MM

92055-1393

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1913

1
Out of stock

92200

WASHER,44X73.5X1.2

92200-0019

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
