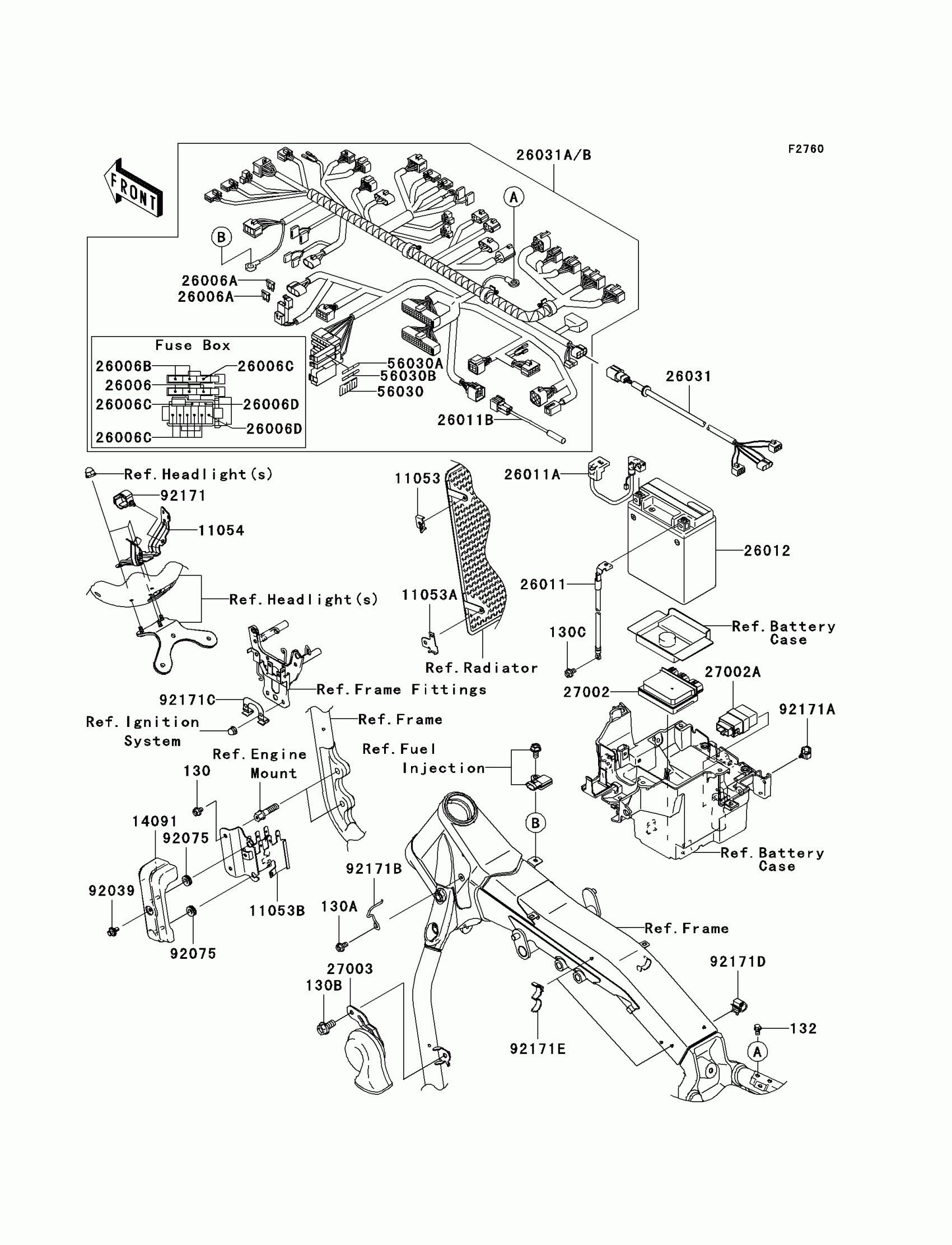

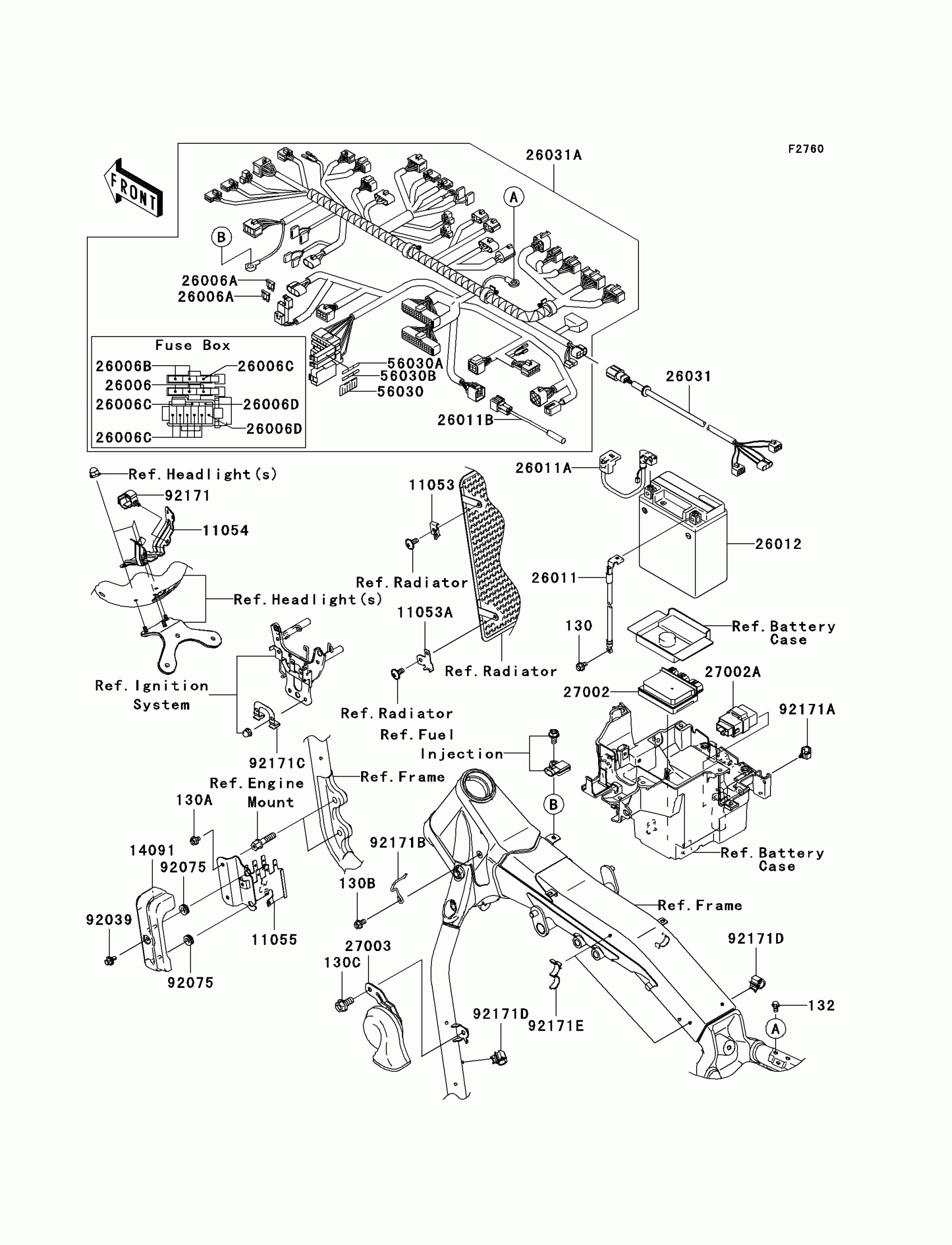

Find the part on the Chassis Electrical Equipment diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130J0608

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,8X16

130L0816

1
Out of stock

130C

BOLT-FLANGED,6X10

130V0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132L0610

1
Out of stock

11053

1

$4.42

In stock

11053A

1

$4.34

In stock

11053B

BRACKET,COUPLER

11053-1655

1

$37.80

In stock

11054

1

$102.01

In stock

14091

COVER,ACG COUPLER

14091-0417

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006D

FUSE,MINI BLADE,20A,YELLOW

26006-1079

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0013

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0043

1
Out of stock

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

1
Out of stock

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

1
Out of stock

26031

HARNESS,RR

26031-0167

1
Out of stock

27002

RELAY-ASSY

27002-0007

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

1
Out of stock

27003

HORN

27003-0021

1
Out of stock

56030

LABEL,FUSE BOX

56030-0015

1
Out of stock

56030A

LABEL,FUSE BOX

56030-0017

1
Out of stock

56030B

LABEL,FUSE BOX

56030-0080

1
Out of stock

92039

RIVET

92039-1227

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171B

CLAMP,HARNESS

92171-0331

1

$3.27

In stock

92171C

CLAMP,HARNESS

92171-0368

1

$14.71

In stock

92171D

CLAMP,DIA=15

92171-1424

1
Out of stock

92171E

CLAMP,25MM DIA.

92171-1559

1
Out of stock

26031A

HARNESS,MAIN

26031-0392

1
Out of stock

26031B

HARNESS,MAIN

26031-0393

1
Out of stock
