2000 Kawasaki Vulcan Starter Solenoid Diagram

← All diagrams

Find the part on the Starter Solenoid diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

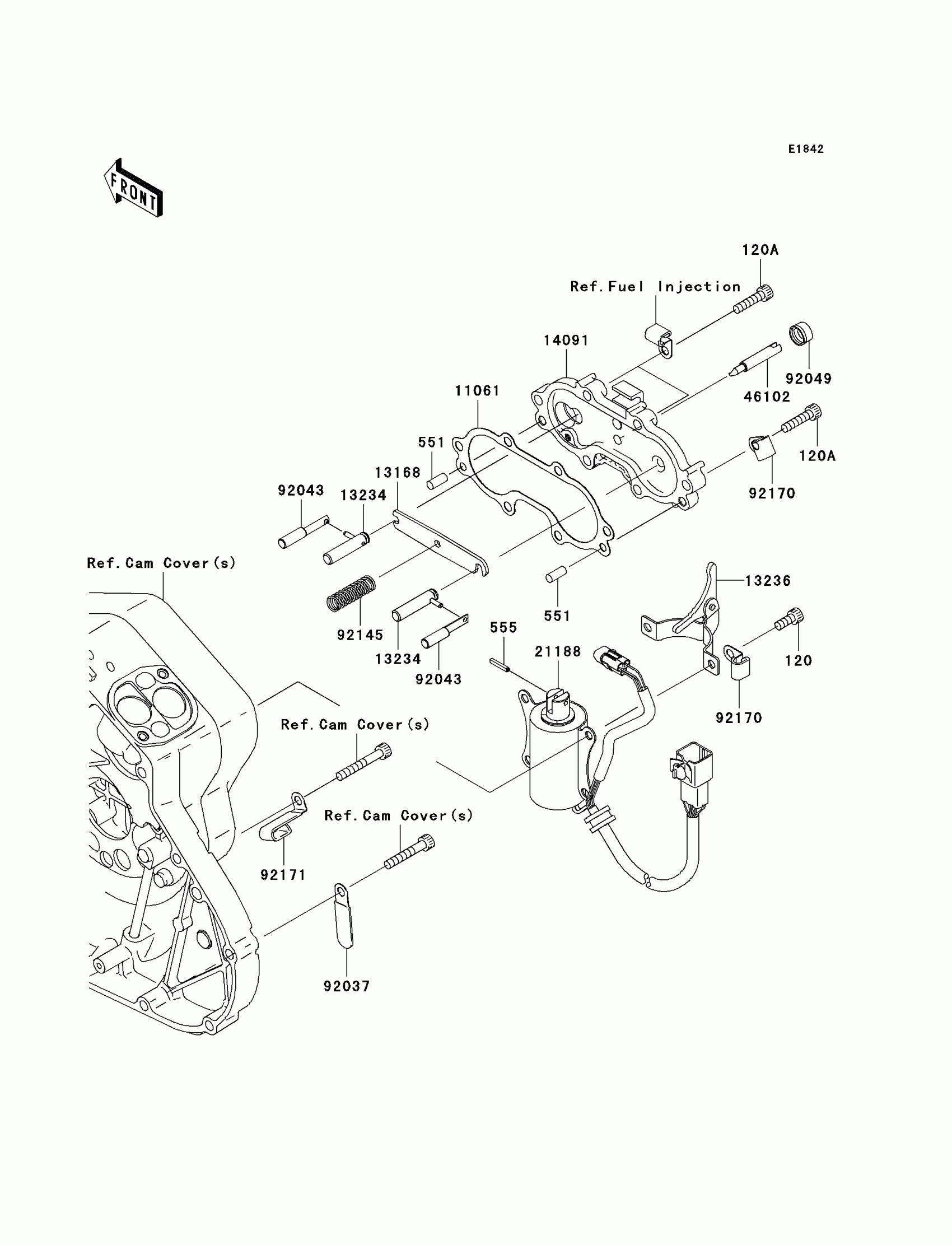

2000 Kawasaki Vulcan Starter Solenoid Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X14

120R0614

1
Out of stock

120A

BOLT-SOCKET,6X25

120R0625

1
Out of stock

551

PIN-DOWEL,6X14

551A0614

1
Out of stock

555

PIN-SPRING

555B0316

1
Out of stock

11061

GASKET

11061-0022

1
Out of stock

13168

LEVER,JOINT

13168-0011

1
Out of stock

13234

SHAFT-COMP

13234-0002

1
Out of stock

13236

LEVER-COMP,SOLENOID

13236-0008

1
Out of stock

14091

COVER

14091-0240

1
Out of stock

21188

SOLENOID

21188-0005

1
Out of stock

46102

ROD,PUSH

46102-0006

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92043

PIN,DECOMP

92043-0015

1
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock

92145

SPRING,DECOMP RELEASE

92145-0037

1
Out of stock

92170

CLAMP

92170-1804

1
Out of stock

92171

CLAMP

92171-0322

1
Out of stock
