2000 Kawasaki Vulcan® Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2000 Kawasaki Vulcan®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

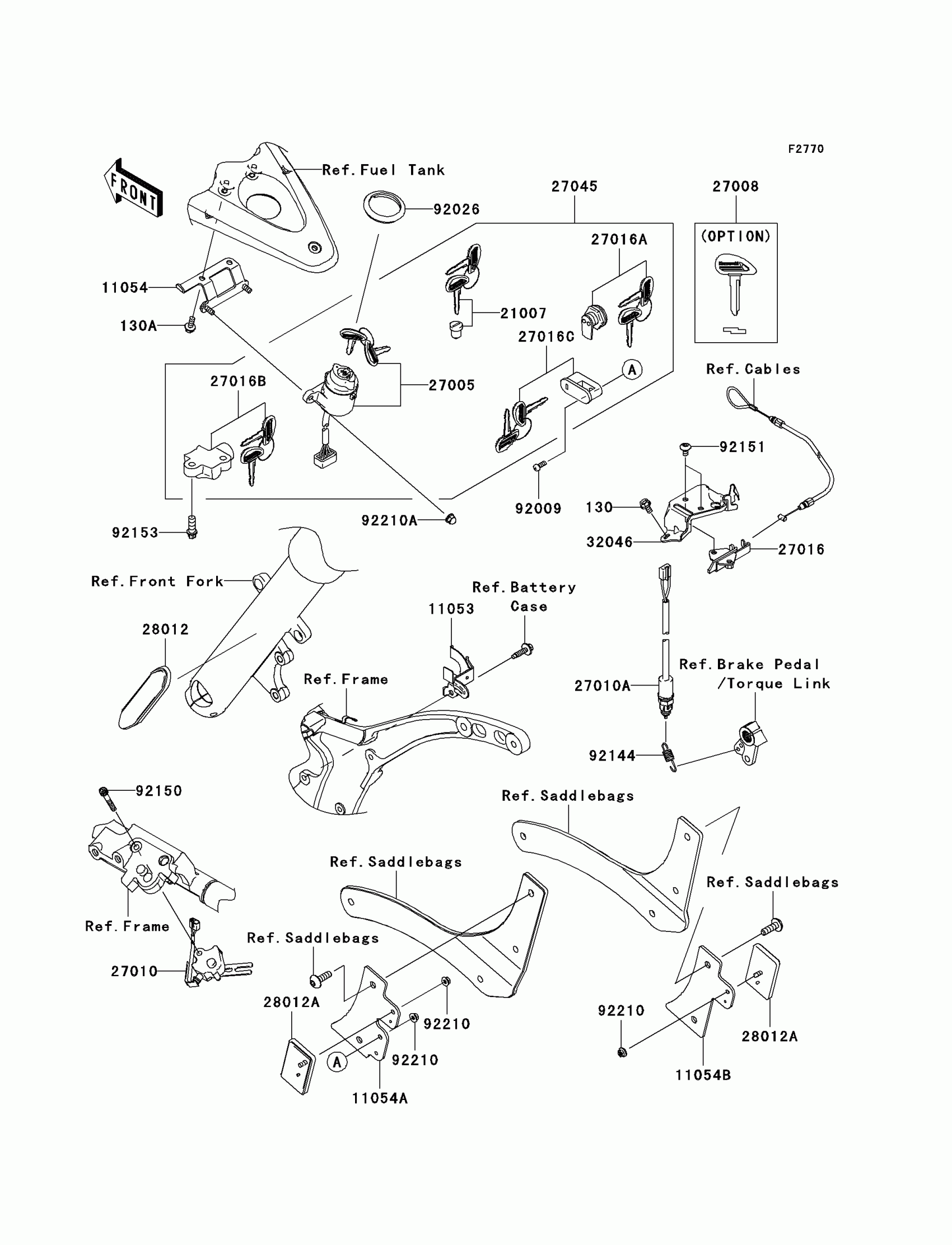

2000 Kawasaki Vulcan® Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130A

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

11053

BRACKET,SIDE COVER LOCK

11053-0920

1
Out of stock

11054

1

$43.73

In stock

11054A

1

$68.96

In stock

11054B

1

$68.96

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5053

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0027

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1211

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0011

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-0023

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,LID

27016-5279

1
Out of stock

27016B

LOCK-ASSY,STEERING

27016-5298

1
Out of stock

27016C

LOCK-ASSY,HELMET

27016-5311

1
Out of stock

27045

SWITCH-ASSY

27045-5324

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0019

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

32046

BRACKET-SEAT

32046-0037

1
Out of stock

92009

SCREW,5X14

92009-1341

1
Out of stock

92026

SPACER,IGNITION SWITCH

92026-0018

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1958

1
Out of stock

92151

BOLT,SOCKET,6X12

92151-1219

1
Out of stock

92153

BOLT,TORX,8X22

92153-1273

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

92210A

NUT,CAP,6MM

92210-1252

1
Out of stock
