1973 Yamaha TX500 (TX500) Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

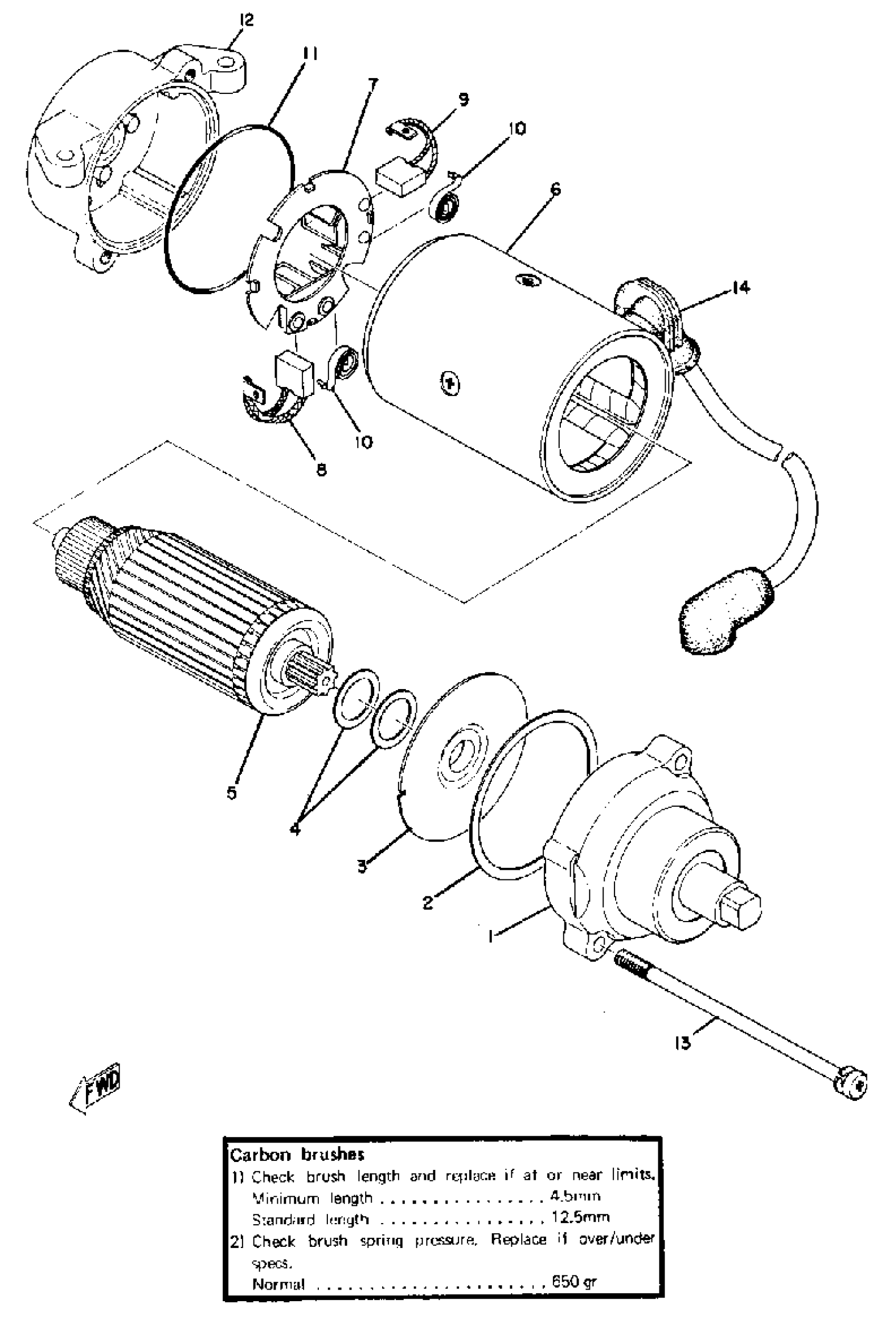

1973 Yamaha TX500 (TX500) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSEMBLY

(2F1-81800-20-00)

1
Out of stock

1

FRONT BRACKET ASSEMBLY

(371-81830-20-00)

1
Out of stock

2

. GASKET

371-81844-20-00

1
Out of stock

3

PLATE

(371-81845-20-00)

1
Out of stock

4

. WASHER KIT

371-81809-20-00

1
Out of stock

5

. ARMATURE ASSEMBLY

3J2-81850-60-00

1
Out of stock

6

STATOR ASSEMBLY

(371-81810-20-00)

1
Out of stock

7

. BRUSH HOLDER ASSEMBLY

371-81840-20-00

1
Out of stock

8

BRUSH 1

371-81811-20-00

—
Out of stock

9

BRUSH 2

371-81812-20-00

—
Out of stock

10

.. SPRING, BRUSH

371-81813-20-00

1
Out of stock

11

.. O-RING

371-81847-20-00

1
Out of stock

12

REAR BRACKET ASSEMBLY

(371-81820-20-00)

1
Out of stock

13

. BOLT

371-81826-20-00

1
Out of stock

14

GROMMET

(371-81829-20-00)

1
Out of stock
