1973 Yamaha TX500 (TX500) Flasher Lamp Diagram

← All diagrams

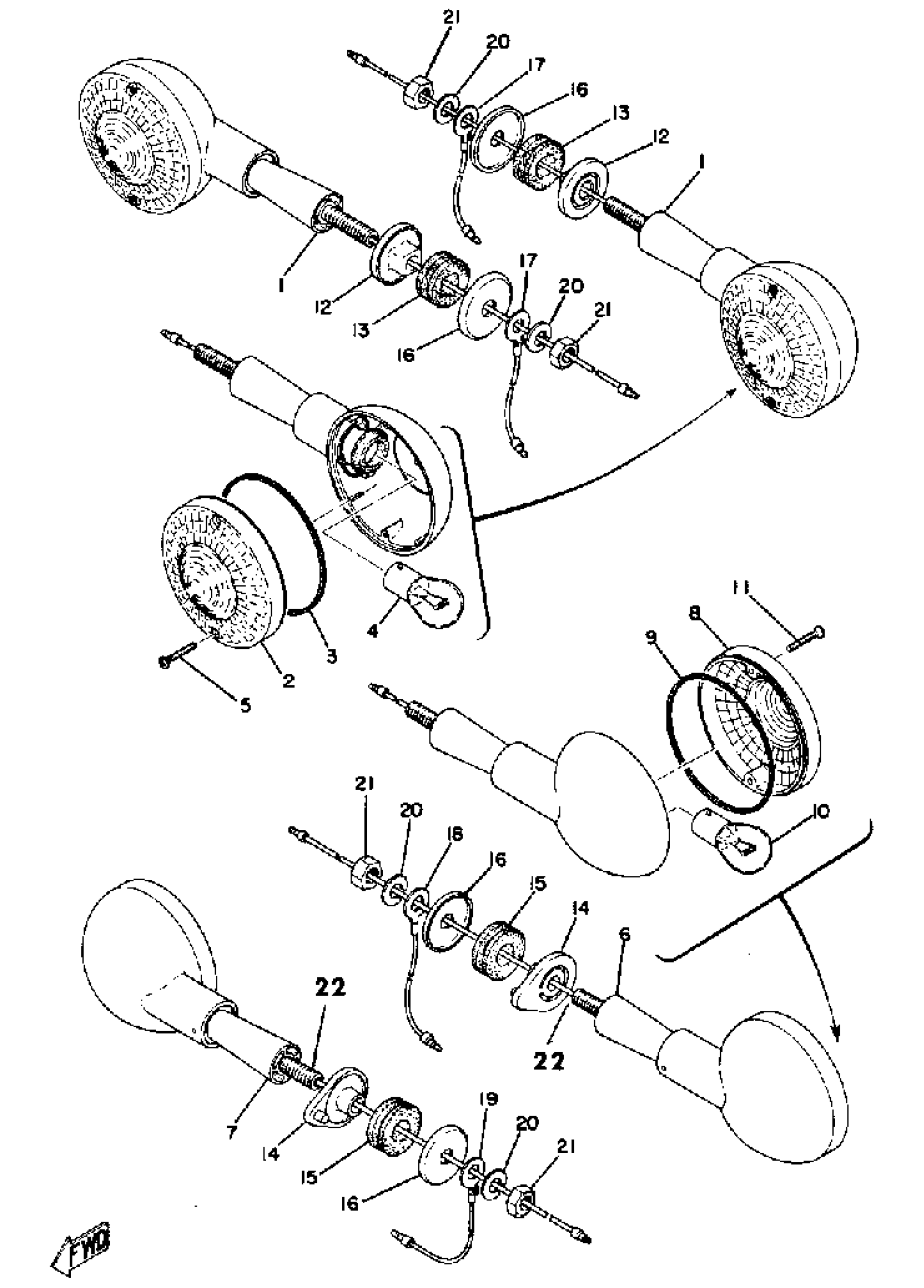

Find the part on the Flasher Lamp diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

2

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

3

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

4

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

5

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

6

R FLSHR LITE ASSEMBLY

341-83330-72-93

1
Out of stock

7

R FLSHR LITE ASSEMBLY

341-83330-72-93

1
Out of stock

8

. LENS, FLASHER

341-83332-70-00

1
Out of stock

9

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

10

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

11

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

12

COLLAR, FLASHER 1

341-83316-02-00

1
Out of stock

13

DAMPER, FLASHER (371)

341-83321-01-00

1
Out of stock

14

COLLAR, FLASHER 2

360-83326-00-00

1
Out of stock

15

GROMMET(3BC)

90480-18488-00

—

$5.62

In stock

16

WASHER

90209-08008-00

—
Out of stock

17

WIRE, EARTH (GROUND)

256-84313-01-00

1
Out of stock

18

WIRE, EARTH LEAD 1

(371-83354-01-00)

1
Out of stock

19

WIRE, EARTH LEAD 2

(371-83364-00-00)

1
Out of stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

NUT(6L2)

95333-08600-00

—

$3.20

In stock

22

. BOLT, STUD

360-83367-09-00

1
Out of stock
