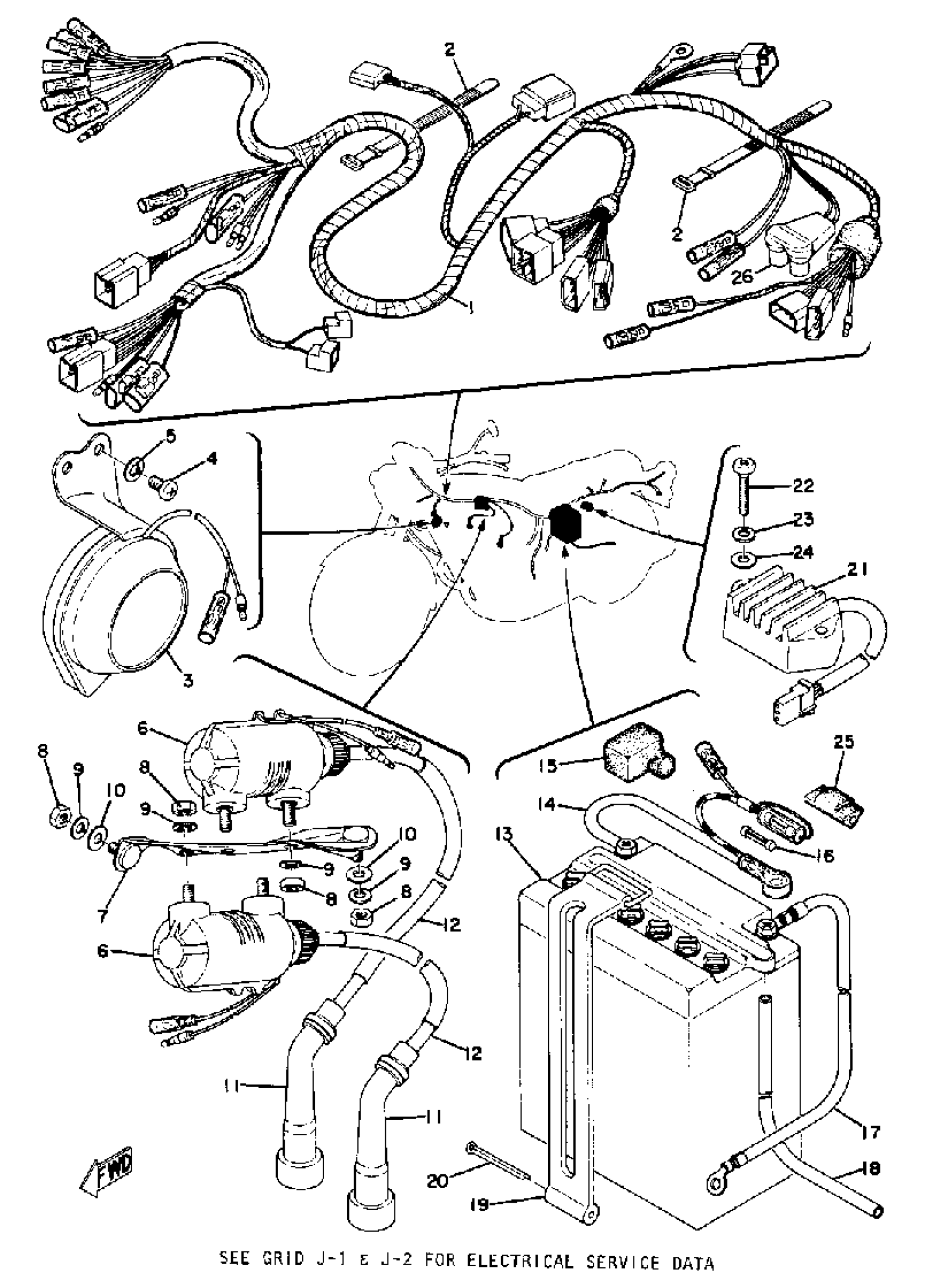

Find the part on the Electrical 1 diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE HARNESS ASSEMBLY

(371-82590-42-00)

1
Out of stock

1

WIRE HARNESS ASSEMBLY

(371-82590-43-00)

1
Out of stock

1

WIRE HARNESS ASSEMBLY

(371-82590-44-00)

1
Out of stock

1

WIRE HARNESS ASSEMBLY

(371-82590-60-00)

1
Out of stock

2

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

3

HORN

371-83371-22-00

1
Out of stock

4

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

IGNITION COIL ASSEMBLY

254-82310-60-00

1
Out of stock

6

IGNITION COIL ASSEMBLY

371-82310-60-00

1
Out of stock

7

BRACKET, IGN COIL

(371-82316-02-00)

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

PLUG CAP ASSY

4VW-82370-00-00

1
Out of stock

12

CORD, HIGH TENSION 1

4X7-82341-00-00

—
Out of stock

13

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

1
Out of stock

14

WIRE, PLUS LEAD

371-82115-00-00

1
Out of stock

15

COVER, LEAD WIRE

(371-82119-00-00)

1
Out of stock

16

FUSE

1A0-82161-00-00

—
Out of stock

17

WIRE, MINUS LEAD

371-82116-00-00

1
Out of stock

18

PIPE, BREATHER

(371-82112-60-00)

1
Out of stock

18

HOSE

(90445-08249-00)

1
Out of stock

19

BAND,BATTERY

371-82131-00-00

—

$14.58

In stock

20

PIN, COTTER

91490-40045-00

—

$6.80

In stock

21

VOLTAGE REG ASSEMBLY

2G7-81910-50-00

1
Out of stock

22

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

25

FUSE HOLDER ASSEMBLY

(371-82150-01-00)

1
Out of stock

26

COVER, STOP SWITCH

(371-82549-00-00)

1
Out of stock
