1973 Yamaha TX500 (TX500) Starting Motor Unit Diagram

← All diagrams

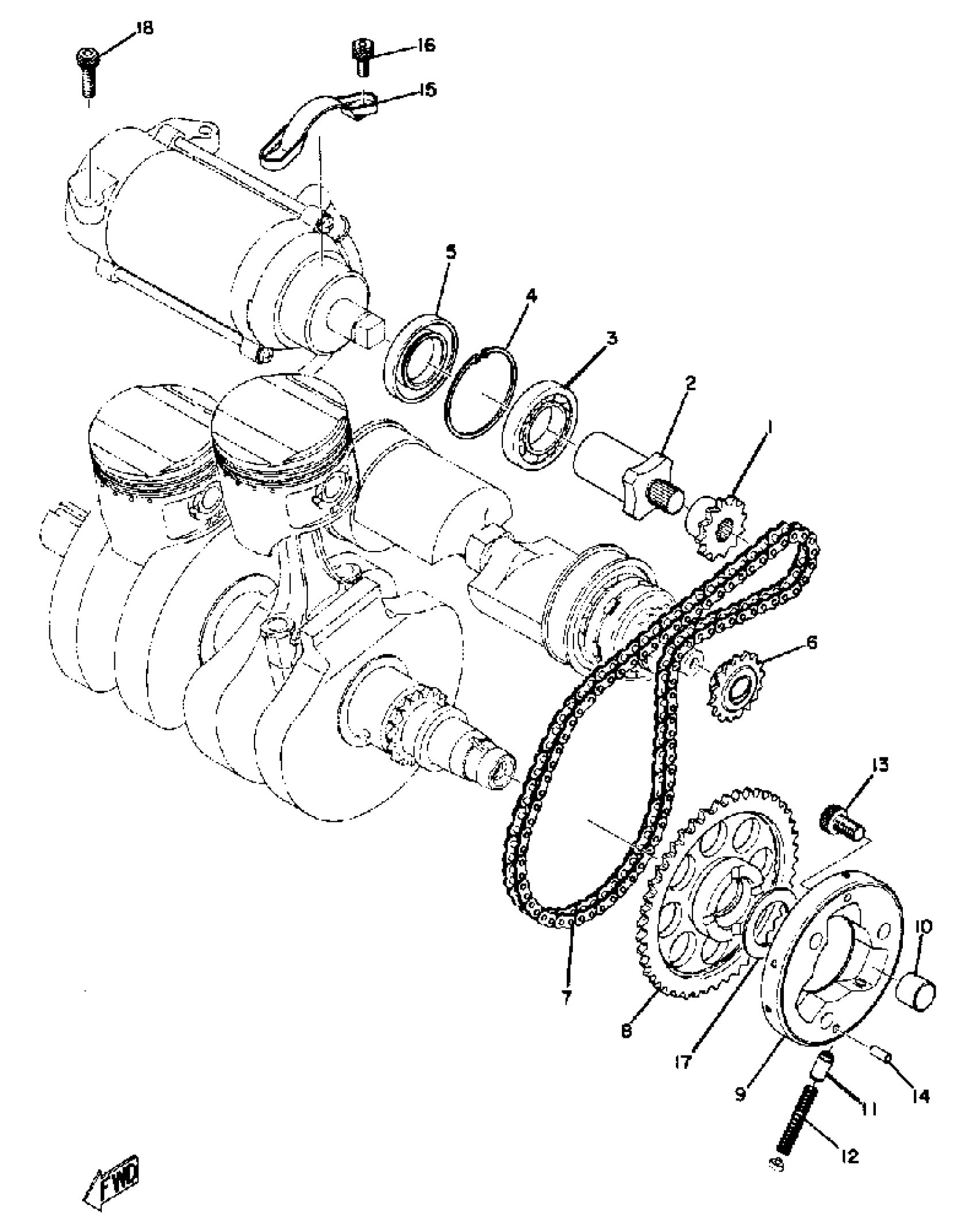

Find the part on the Starting Motor Unit diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Starting Motor Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, STARTER 1

371-15518-00-00

1
Out of stock

2

SHAFT 1

(371-15521-00-00)

1
Out of stock

3

BEARING(1FF)

93306-00519-00

1

$31.24

In stock

4

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

5

OIL SEAL, SD-TYPE

(93102-25113-00)

1
Out of stock

6

SPROCKET, STR IDLE

(371-15525-00-00)

1
Out of stock

7

CHAIN

94582-19082-00

1
Out of stock

8

STARTER WHEEL ASSEMBLY

(371-15520-01-00)

1
Out of stock

9

STR CLUTCH OTR ASY

341-15580-07-00

1
Out of stock

10

PIN,DOWEL(341)

93615-12088-00

1

$5.63

In stock

11

CAP, STARTER CLUTCH

1J7-15583-01-00

1

$16.60

In stock

12

. SPRING, COMPRESSION (341-15584-02)

90501-03298-00

1
Out of stock

13

BOLT, SOCKET

91317-08016-00

1

$6.17

In stock

14

PIN, DOWEL

93605-10090-00

1

$5.41

In stock

15

HOLDER, STRTG MRTR

(371-15564-00-00)

1
Out of stock

16

BOLT,SOCKET

91317-06010-00

—

$6.91

In stock

17

WASHER, PLATE

90201-25345-00

1
Out of stock

17

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

18

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock
