1973 Yamaha TX500 (TX500) Speedometer Tachometer Diagram

← All diagrams

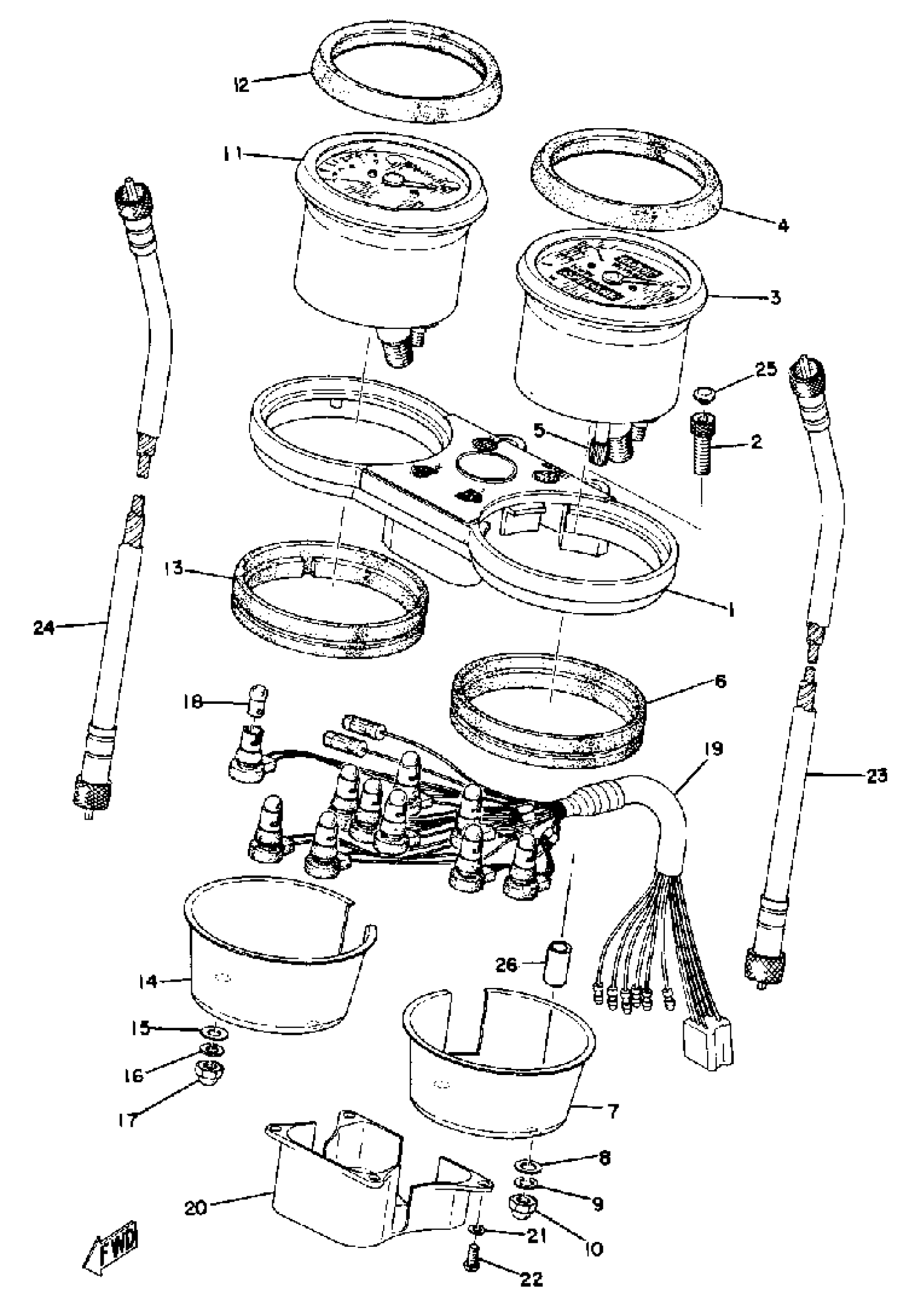

Find the part on the Speedometer Tachometer diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

371-83519-71-98

1
Out of stock

2

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

3

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

3

SPEEDOMETER ASSEMBLY

371-83570-43-00

1
Out of stock

4

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

5

. KNOB, TRIP METER

371-83578-70-00

1
Out of stock

6

DAMPER

371-83523-70-00

1
Out of stock

7

COVER, SPEEDOMETER

(371-83507-70-00)

1
Out of stock

7

COVER, SPEEDOMETER

(371-83507-72-00)

1
Out of stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT (CROWN)

95303-05800-00

1
Out of stock

11

TACHOMETER ASSEMBLY

(371-83540-00-00)

1
Out of stock

11

TACHOMETER ASSEMBLY

(371-83540-03-00)

1
Out of stock

12

DAMPER

(371-83513-70-00)

1
Out of stock

13

DAMPER

371-83523-70-00

1
Out of stock

14

COVER, TACHOMETER

371-83508-70-00

1
Out of stock

14

COVER, TACHOMETER

(371-83508-71-00)

1
Out of stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

17

NUT (CROWN)

95303-05800-00

1
Out of stock

18

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

19

SOCKET CORD ASSEMBLY

(371-83509-70-00)

1
Out of stock

19

SOCKET CORD ASSEMBLY

(371-83509-71-00)

1
Out of stock

20

COVER, SOCKET

(371-83547-70-00)

1
Out of stock

21

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

22

SCREW, PAN HEAD(6G8)

98507-04010-00

—

$3.26

In stock

23

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

24

TACHOMETER CABLE

371-83560-01-00

1
Out of stock

25

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

26

COLLAR

(360-83522-00-00)

1
Out of stock
