1973 Yamaha TX500 (TX500) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

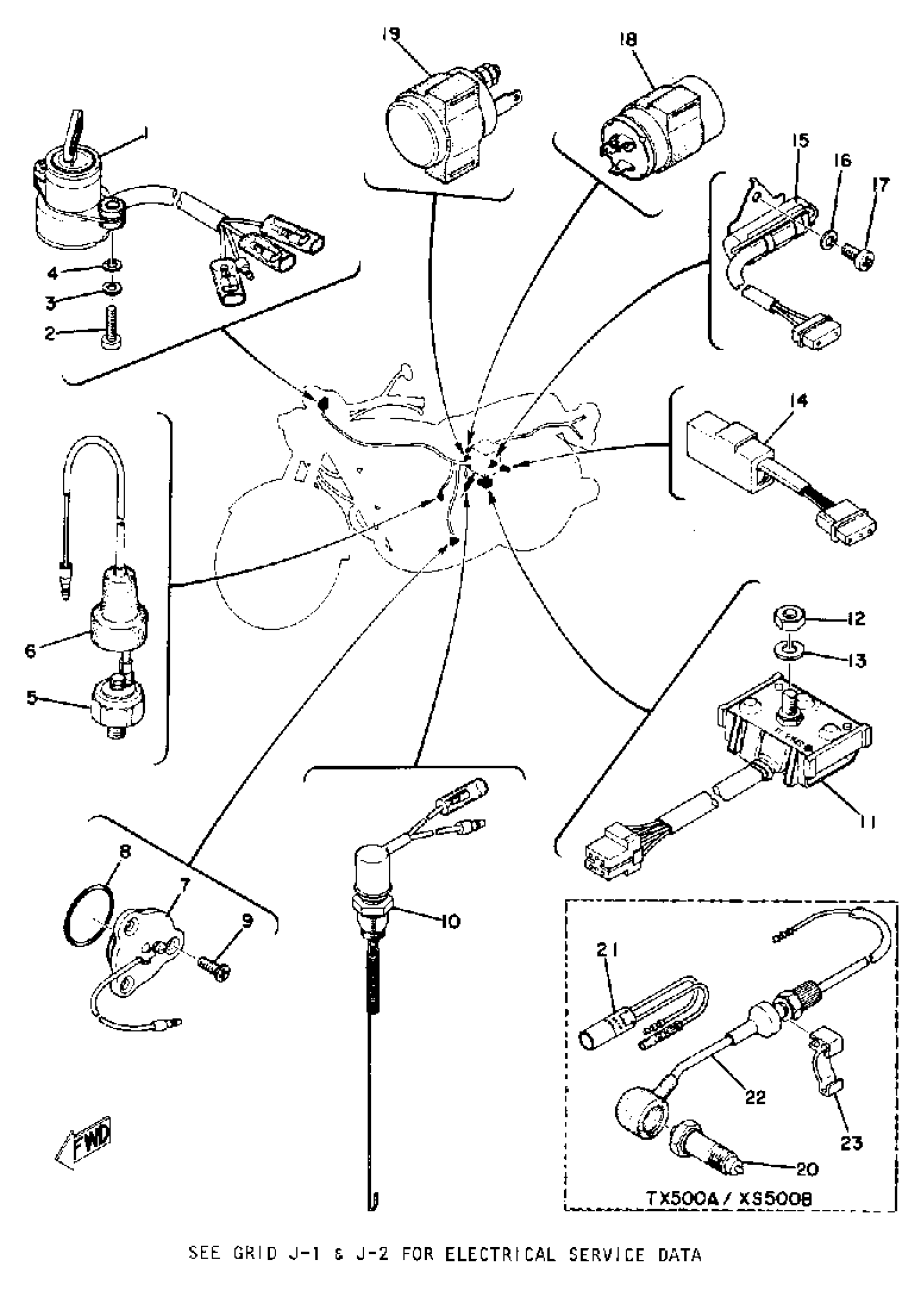

1973 Yamaha TX500 (TX500) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSEMBLY

360-82508-09-00

1
Out of stock

2

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

WASHER, SPEC''L SHAP

(90209-05116-00)

1
Out of stock

5

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

6

WIRE, LEAD

(371-82507-00-00)

1
Out of stock

7

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

8

O-RING (371)

93210-29196-00

1

$6.45

In stock

9

SCREW, FLAT

98707-05012-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

371-82530-03-00

1
Out of stock

11

RECTIFIER ASSEMBLY

(371-81970-10-00)

1
Out of stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

CHECKER, LIGHT

(371-84708-00-00)

1
Out of stock

14

CHECKER, LIGHT

371-84708-02-00

1
Out of stock

15

CONDENSER 1

371-81625-10-00

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

FLASHER RELAY ASSEMBLY

371-83350-71-00

1
Out of stock

19

STARTER SWITCH ASSEMBLY (371-81940-22)

1J3-81940-10-00

1
Out of stock

20

SWITCH, ALARM

341-82503-01-00

1
Out of stock

21

UNAVAILABLE IN PRICE BOOK (341-81980-01)

341-81980-31-00

1
Out of stock

22

WIRE, LEAD

(371-82531-00-00)

1
Out of stock

23

CLAMP

(90464-20017-00)

1
Out of stock
