1973 Yamaha TX500 (TX500) Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

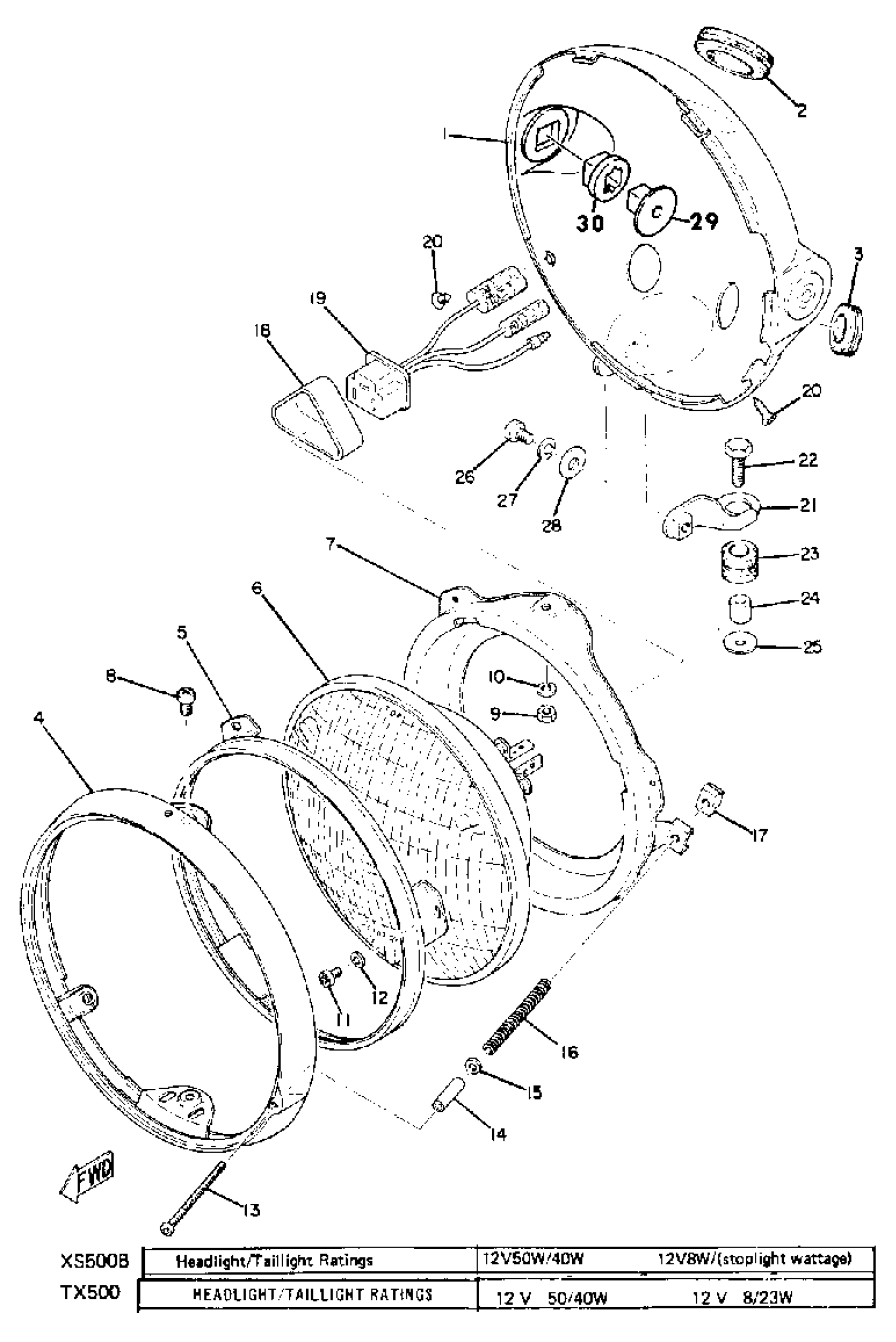

1973 Yamaha TX500 (TX500) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(371-84330-60-M3)

1
Out of stock

1

BODY ASSEMBLY

(371-84330-61-E4)

1
Out of stock

1

BODY ASSEMBLY

(371-84330-61-F8)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

4

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

5

RING, RETAINING

2F9-84395-00-00

1
Out of stock

6

. LENS ASSEMBLY

341-84320-60-00

1
Out of stock

7

RING, MOUNTING

2F9-84394-00-00

—
Out of stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

14

. COLLAR, SCREW

341-84333-60-00

1
Out of stock

15

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

16

SPRING, ADJUST

341-84332-60-00

—

$8.54

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

. COVER, SOCKET

341-84397-61-00

1
Out of stock

19

SOCKET

371-84312-60-00

—

$26.52

In stock

20

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

21

STAY, HEADLIGHT 1

(371-84318-01-00)

1
Out of stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

24

COLLAR

90387-07020-00

—

$6.17

In stock

25

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

26

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER PLATE 256216150000

90201-06062-00

—

$7.09

In stock

28

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

29

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

30

DAMPER, HEADLIGHT

256-84345-60-00

1
Out of stock
