1973 Yamaha TX500 (TX500) AC Generator Diagram

← All diagrams

Find the part on the AC Generator diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

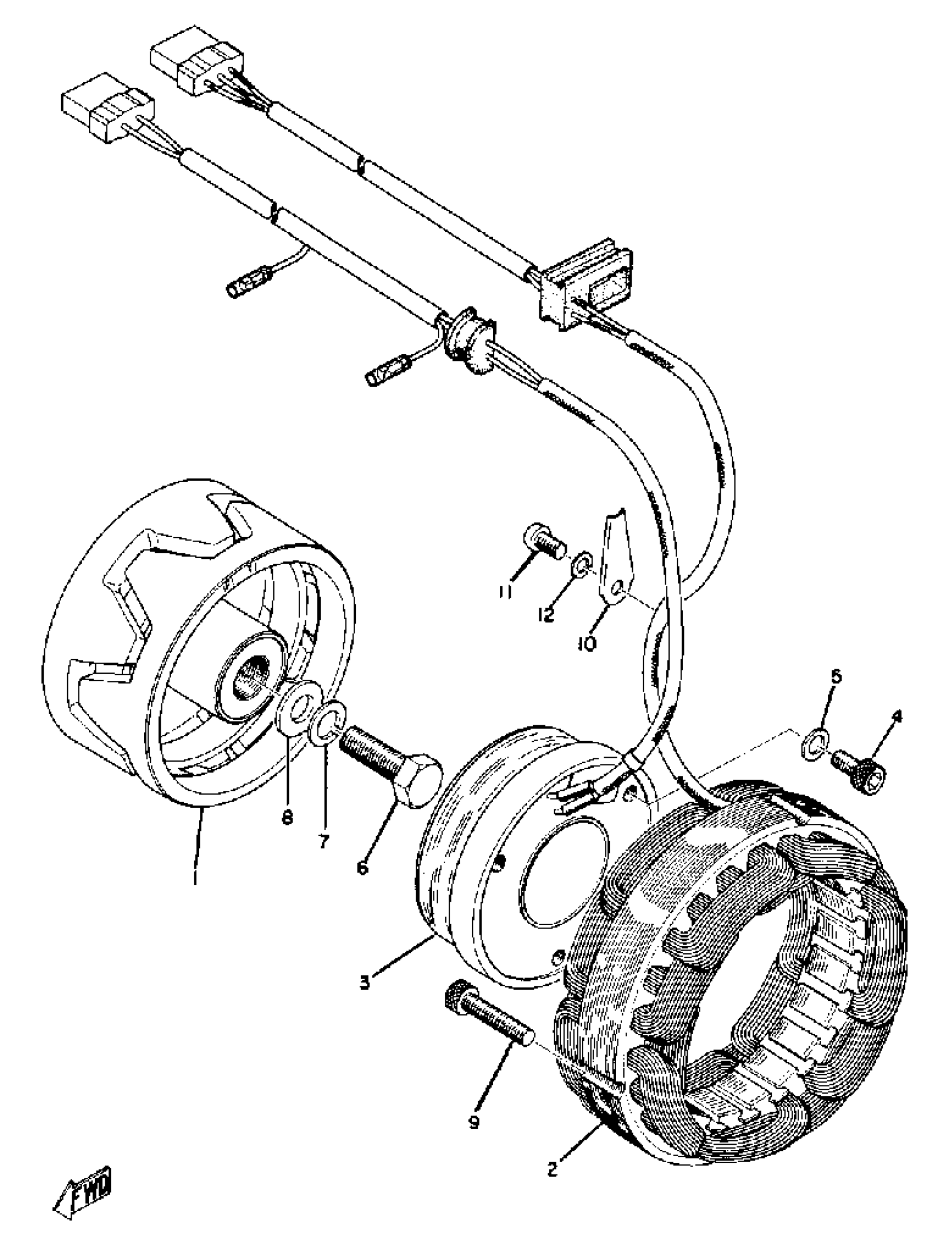

1973 Yamaha TX500 (TX500) AC Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(371-81600-10-00)

1
Out of stock

1

ROTOR ASSEMBLY

(371-81650-10-00)

1
Out of stock

2

STATOR ASSEMBLY

(371-81610-10-00)

1
Out of stock

3

. FIELD COIL ASSEMBLY

371-81660-10-00

1
Out of stock

4

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

5

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

6

BOLT

90101-10105-00

1
Out of stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

WASHER, PLATE

(90201-10133-00)

1
Out of stock

9

1

$3.82

In stock

10

CLAMP

(90465-10058-00)

1
Out of stock

11

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock
