1973 Yamaha TX500 (TX500) Tachometer Gear Diagram

← All diagrams

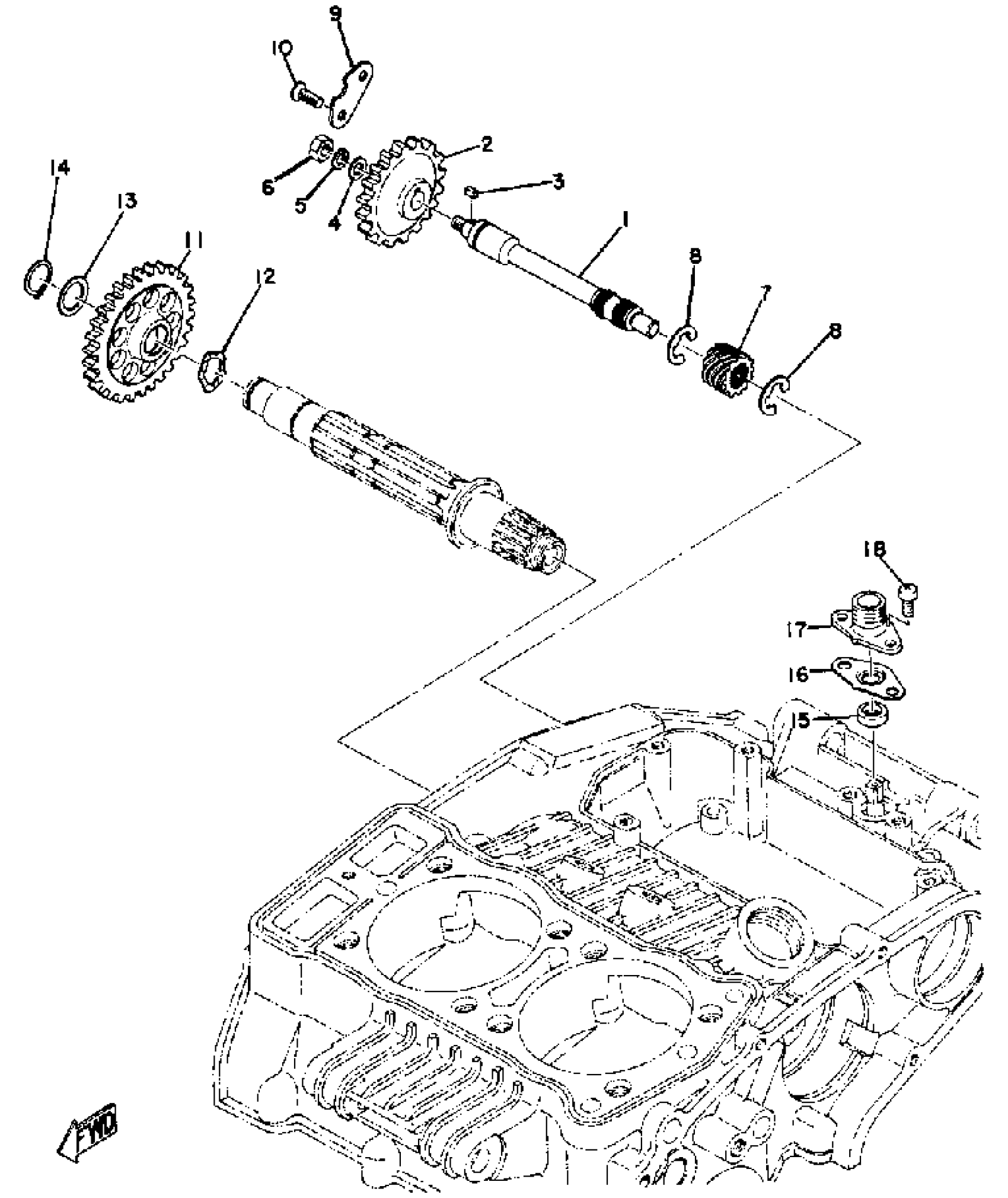

Find the part on the Tachometer Gear diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Tachometer Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

(371-17861-00-00)

1
Out of stock

2

GEAR, PRIMARY

371-17851-02-00

1
Out of stock

3

KEY, STRAIGHT

90282-03003-00

1
Out of stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

SHAFT, PUMP

(371-13314-03-00)

1
Out of stock

7

GEAR, DRIVE

(371-17831-02-00)

1
Out of stock

7

GEAR, DRIVE

(371-17831-02-00)

1
Out of stock

7

GEAR DRIVE

(99999-00843-00)

1
Out of stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

STOPPER

(278-17812-00-00)

1
Out of stock

10

SCREW, FLAT

98707-05012-00

1
Out of stock

11

GEAR, KICK IDLE

(371-15651-01-00)

1
Out of stock

12

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

13

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

14

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

15

OIL SEAL (7X13X4-256)

93104-07036-00

—
Out of stock

16

WASHER, SPEC''L SHAP

(90209-06052-00)

1
Out of stock

17

HOUSING, TACH GEAR

(371-17811-00-00)

1
Out of stock

18

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock
