1981 Yamaha SRX440E Water Pump Diagram

← All diagrams

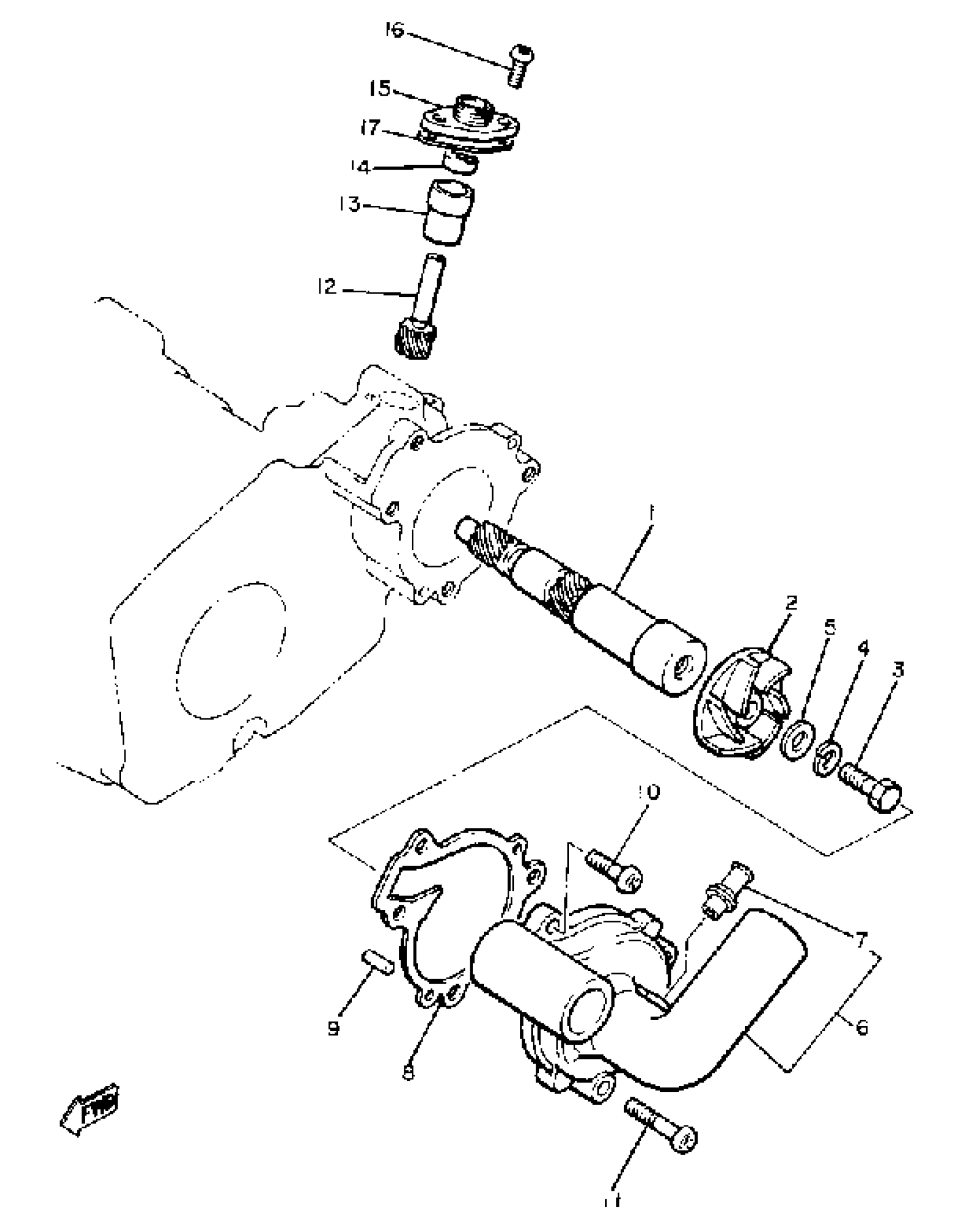

Find the part on the Water Pump diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, IMPELLER (8M6-12458-00)

8M6-12458-01-00

1
Out of stock

2

IMPELLER, WATER PMP

8A7-12451-00-00

1
Out of stock

3

BOLT (62G)

97095-08025-00

1

$6.57

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

COVER, HOUSING

8M6-W1241-00-00

1
Out of stock

7

JOINT

8A7-12499-00-00

1
Out of stock

8

GASKET,HOUSING CVR

8M6-12427-02-00

1
Out of stock

9

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

12

GEAR, DRIVEN

8M6-17841-00-00

1
Out of stock

13

BUSH, DRVN GR OUTER

8A7-17843-00-00

1
Out of stock

14

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

15

CAP, HOUSING

821-17819-00-00

1
Out of stock

16

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

17

GASKET

821-17818-02-00

—

$5.66

In stock
