1981 Yamaha SRX440E OIL Pump Diagram

← All diagrams

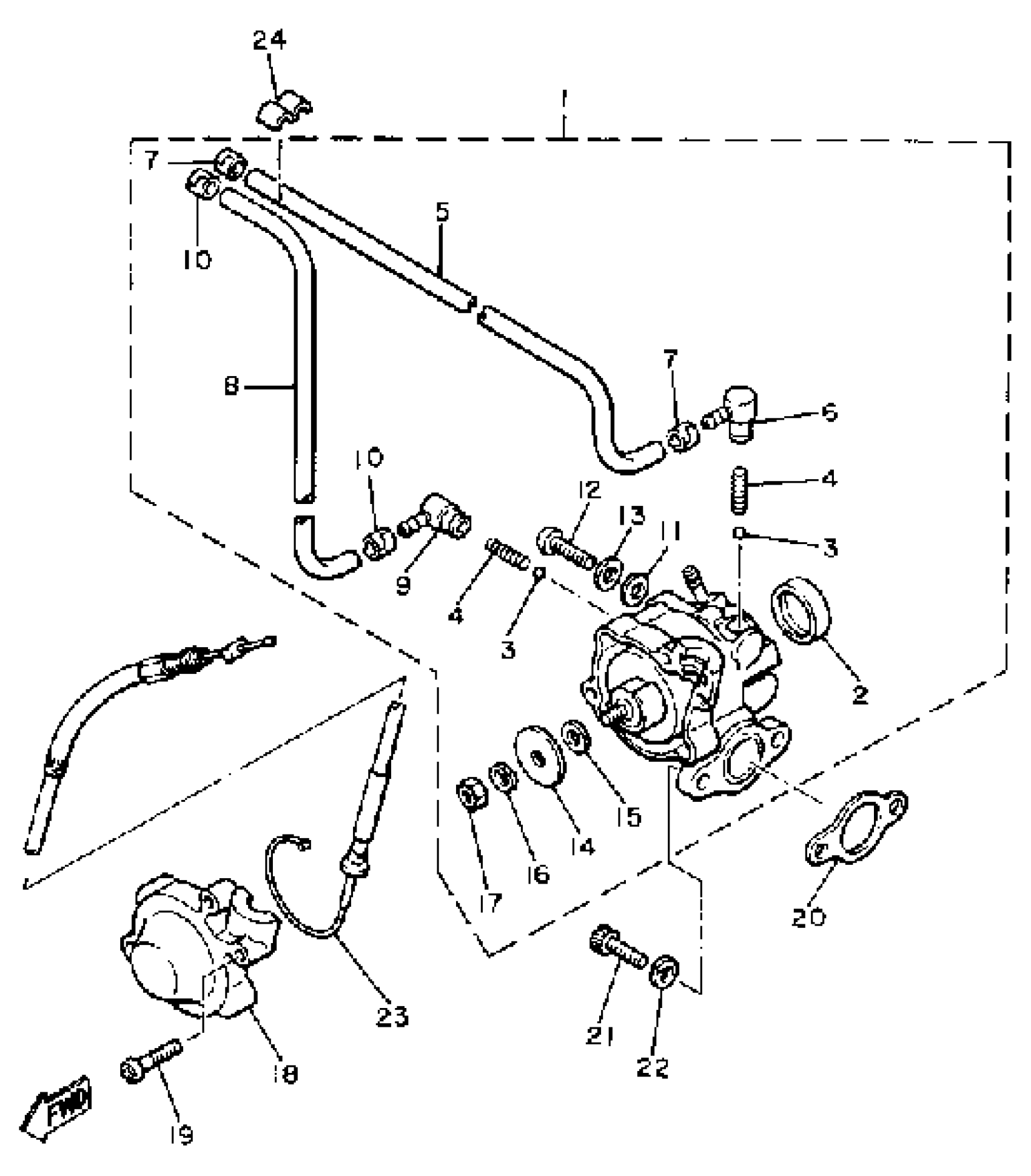

Find the part on the OIL Pump diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8M6-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

. HOSE

90445-08555-00

1
Out of stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

8

HOSE

90445-08796-00

1
Out of stock

9

NOZZLE

353-13552-01-00

1
Out of stock

10

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

15

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

15

SHIM,PLUNGER

137-13137-00-05

—

$5.32

In stock

15

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

18

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

19

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

20

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

21

BOLT, SOCKET

91317-05016-00

—

$2.48

In stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

PUMP CABLE ASSEMBLY

8G8-26320-01-00

1
Out of stock

24

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock
