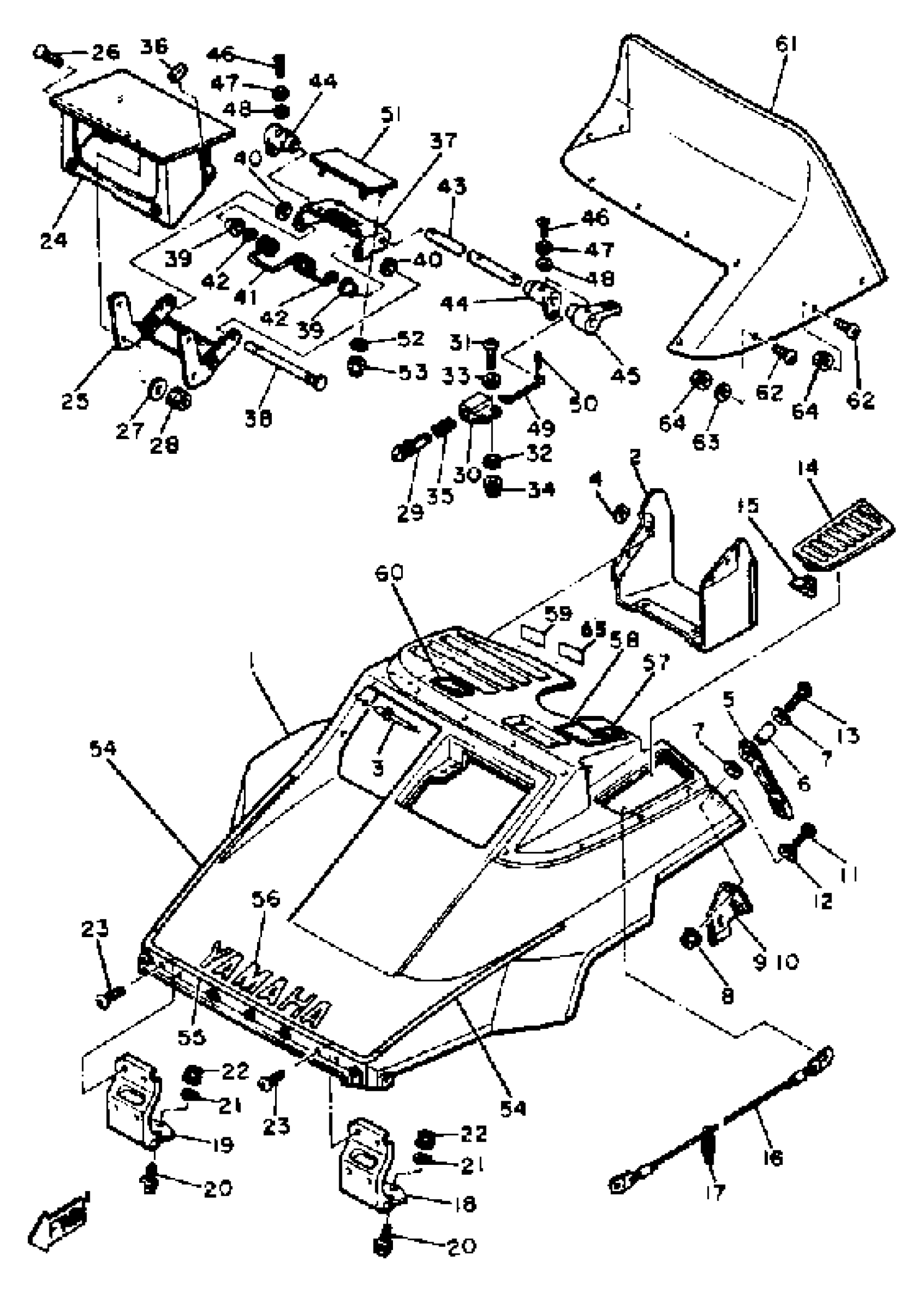

Find the part on the Shroud - Winshield diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Shroud - Winshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8M6-W7711-00-00)

1
Out of stock

2

DUCT

8M6-77194-00-00

1
Out of stock

3

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

6

COLLAR (420)

90387-06241-00

1

$6.18

In stock

7

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

8

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

9

CLAMP 1

8M6-77135-00-00

1
Out of stock

10

CLAMP 2

8M6-77136-00-00

1
Out of stock

11

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

12

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

13

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

14

LOUVER 3

8M6-77133-00-00

1
Out of stock

15

CLIP

90468-05094-00

1
Out of stock

16

STOPPER, SHROUD

8A5-77118-00-00

1
Out of stock

17

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

18

HINGE ASSEMBLY

8M6-77140-01-00

1
Out of stock

19

HINGE ASY 2

8M6-7714A-01-00

1
Out of stock

20

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

21

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

22

NUT, NYLON

95707-06300-00

—

$3.20

In stock

23

SCREW, BIND (705)

98980-06016-00

—
Out of stock

24

BODY, HEADLIGHT

8M6-84311-00-00

1
Out of stock

25

STAY, HEADLIGHT 1

8M6-84318-00-00

1
Out of stock

26

SCREW, FLAT

98707-05016-00

—

$5.60

In stock

27

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

28

NUT, NYLON

95707-05300-00

—

$2.74

In stock

29

ROD 1

8M6-77119-00-00

1
Out of stock

30

HOLDER, ROD 1

8M6-77139-00-00

1
Out of stock

31

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

34

NUT, NYLON

95707-06300-00

—

$3.20

In stock

35

SPRING R (R.H.)

8M6-77184-00-00

1
Out of stock

36

DAMPER

3HP-84163-00-00

1
Out of stock

37

STAY, HEADLIGHT 2

8M6-84319-00-00

1
Out of stock

38

PIN

8M6-8411R-00-00

1
Out of stock

39

COLLAR 1

8M6-77176-00-00

1
Out of stock

40

WASHER 1

8M6-77178-00-00

1
Out of stock

41

SPRING 1

8M6-77174-00-00

1
Out of stock

42

CIRCLIP

99080-07600-00

1

$2.89

In stock

43

PIN, HINGE 2

8M6-77158-00-00

1
Out of stock

44

CLAMP, ROD

8M6-77159-00-00

1
Out of stock

45

LEVER, LATCH 1

8M6-77173-00-00

1
Out of stock

46

SCREW, PAN HEAD

98506-03016-00

1
Out of stock

47

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

48

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

49

ROD 2

8M6-77129-00-00

1
Out of stock

50

. PIN, COTTER

91401-10015-00

1
Out of stock

51

COVER, LEVER

8M6-77189-00-00

1
Out of stock

52

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

53

NUT, U

95617-05100-00

—

$6.68

In stock

54

STRIPE 1

8M6-77281-00-00

1
Out of stock

55

STRIPE 2

8M6-77282-00-00

1
Out of stock

56

EMBLEM 7

8M6-77357-00-00

1
Out of stock

57

INDICATOR 4

8K2-77744-01-00

1
Out of stock

58

LABEL, WARNING 3

8A7-77763-00-00

1
Out of stock

59

LABEL, SAFETY

288-21659-00-00

1
Out of stock

60

LABEL, WARNING 1

8L2-77761-01-00

1
Out of stock

61

WINDSHIELD

8M6-77210-09-00

1
Out of stock

62

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

63

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

64

NUT, NYLON

95707-05300-00

—

$2.74

In stock

65

LABEL, WARNING 7

8L2-77767-00-00

1
Out of stock

65

GRAPHIC SET

(8M6-W0070-00-00)

1
Out of stock

65

GRAPHIC SET

(8M6-W0070-10-00)

1
Out of stock
