1981 Yamaha SRX440E Crankcase - Cylinder Diagram

← All diagrams

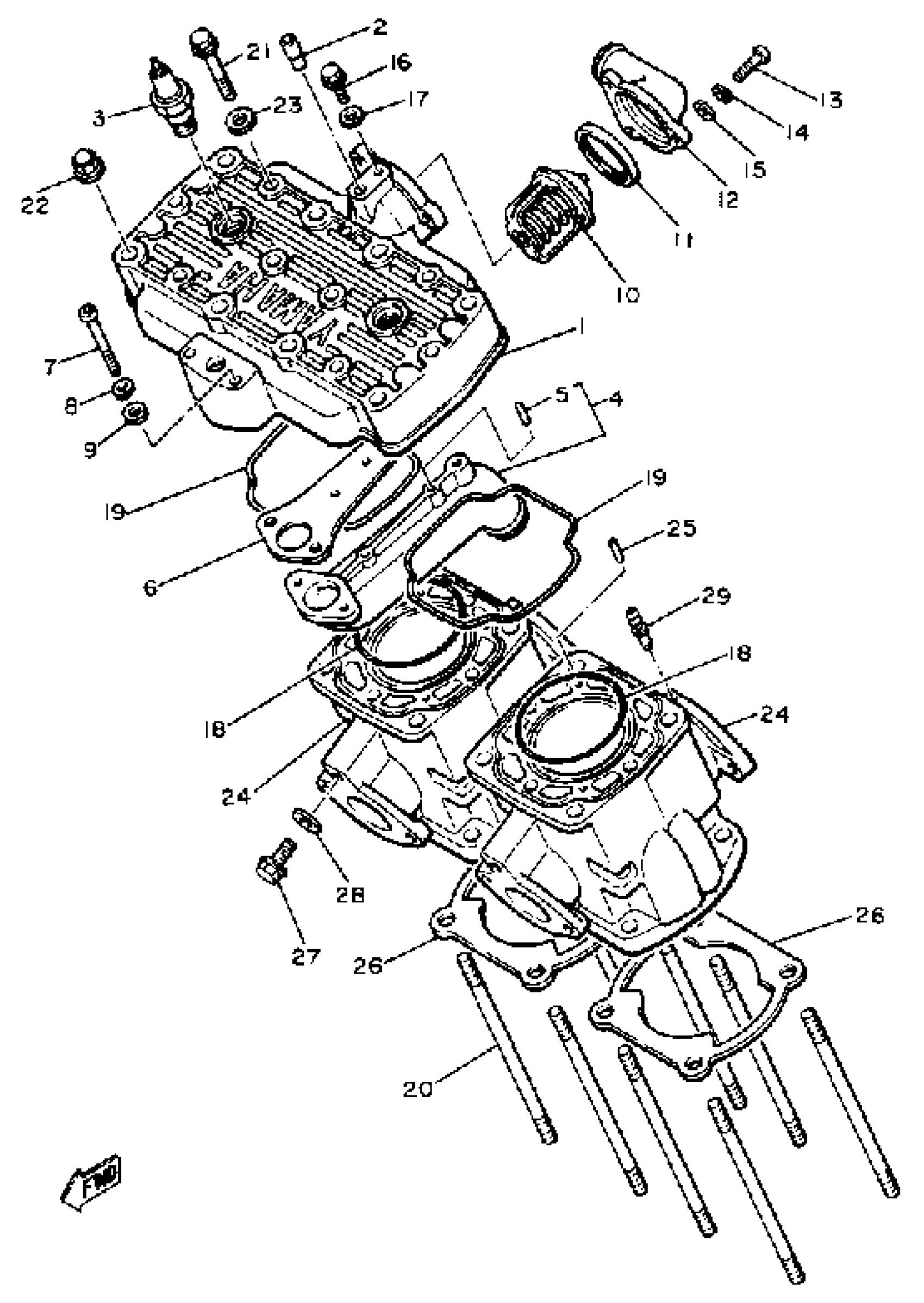

Find the part on the Crankcase - Cylinder diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8M6-11111-00-00

1
Out of stock

2

PIPE, BREATHER

8A7-12463-00-00

1
Out of stock

3

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1

$14.69

In stock

4

PROTECTOR

8M6-12498-01-00

1
Out of stock

5

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

6

GASKET

8M6-12435-04-00

1
Out of stock

7

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

10

THERMOSTAT

8G9-12411-03-00

1
Out of stock

11

SEAL, THERMOSTAT

8A7-12412-01-00

1

$14.25

In stock

12

COVER, THERMOSTAT

99999-01792-00

1
Out of stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

16

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

17

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

18

O-RING

93210-74444-00

1
Out of stock

19

GASKET, CYLINDER HEAD 1

8M6-11181-00-00

1
Out of stock

20

BOLT, CYLINDER HOLDING 1

8M6-11361-00-00

1
Out of stock

21

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

22

NUT, CROWN(2GG)

90176-10075-00

—

$6.57

In stock

23

WASHER, PLATE

90201-080L7-00

—

$3.42

In stock

24

CYLINDER 1

8M6-11311-00-00

1
Out of stock

25

PIN, DOWEL (8H1)

93604-07141-00

—

$1.35

In stock

26

GASKET,CYLINDER

8M6-11351-01-00

1
Out of stock

27

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

28

WASHER PLATE 341839090000

90201-10128-00

—

$3.42

In stock

29

NOZZLE

824-13552-00-00

1
Out of stock
