1981 Yamaha SRX440E Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

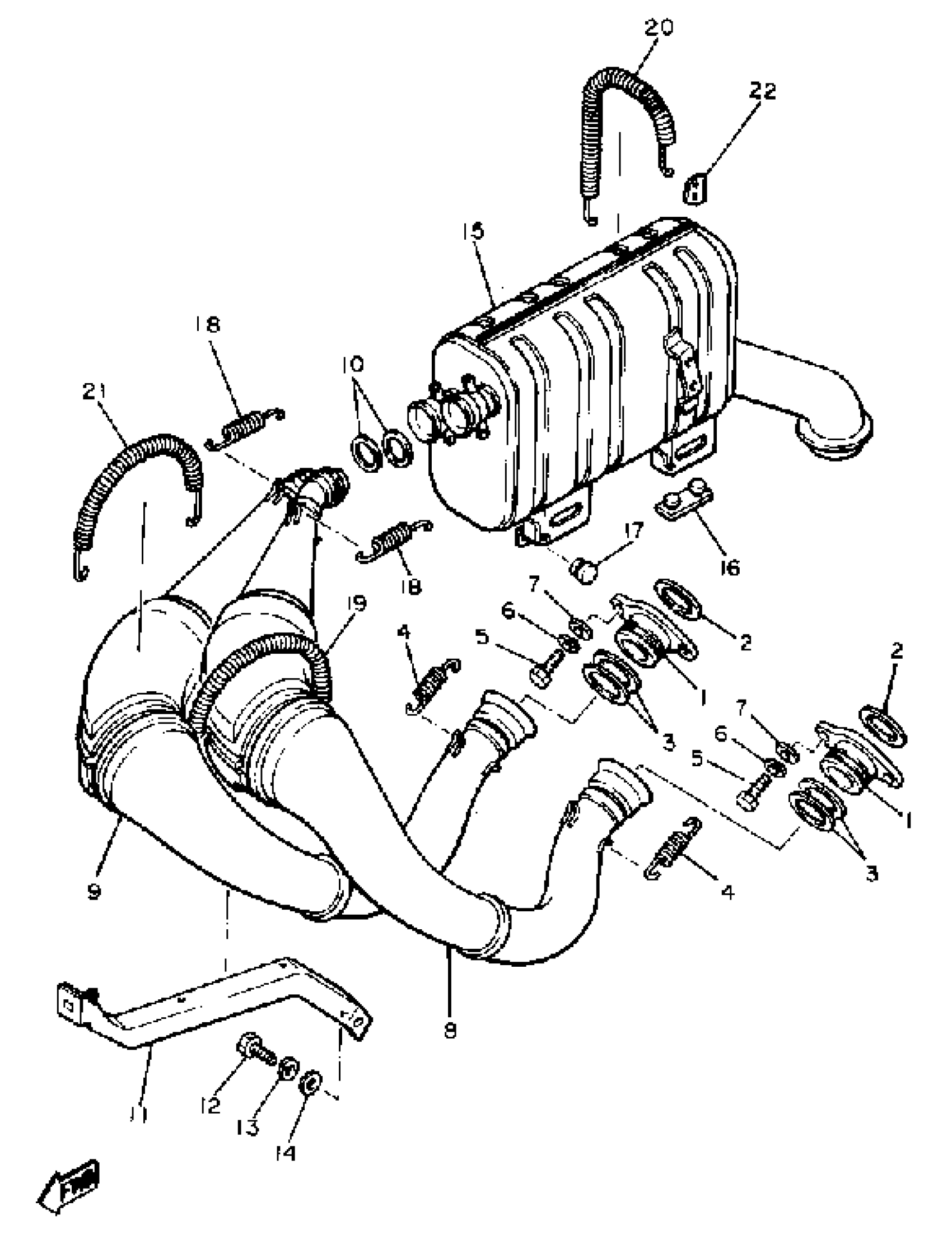

1981 Yamaha SRX440E Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT, RING

8J0-14612-00-00

1
Out of stock

2

GASKET, EXHAUST

8A7-14613-09-00

1

$7.42

In stock

3

RING

888-14633-00-00

1

$6.46

In stock

4

SPRING, HOOK (888)

90506-20115-00

—
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

EXHAUST PIPE ASSEMBLY L

(8M6-14610-00-00)

1
Out of stock

9

EXHAUST PIPE ASSEMBLY R

(8M6-14620-00-00)

1
Out of stock

10

RING

8F2-14633-00-00

1
Out of stock

11

STAY, MUFFLER 1

8M6-14771-00-00

1
Out of stock

12

BOLT, HEXAGON

97017-08016-00

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

2ND SILENCER, MUFF

(8M6-14640-00-00)

1
Out of stock

16

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock

17

GROMMET (8M6)

90480-11298-00

—
Out of stock

18

SPRING, TENSION (8M6)

90506-20093-00

—

$7.06

In stock

19

SPRING, TENSION

90506-16196-00

1
Out of stock

20

SPRING, TENSION

90506-16198-00

1
Out of stock

21

SPRING, TENSION

90506-16210-00

1
Out of stock

22

STOPPER

8M6-14768-00-00

1
Out of stock
